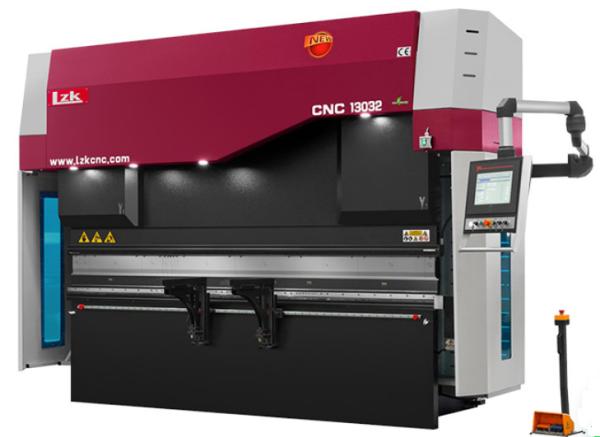

NC/CNC Hydraulic press brake Sheet metal automatic bending machine

Standard Functions of the Press brake:

1. Our Press brake uses all steel welded structure, vibrating treatment of ageing for removal of internal stress,with high rigidity and stability.

2. Torsion Bar forced synchronization of mechanical,limit stopper balance with high precision Y-axis.

3. The back gauge is welded by steel structure and has high rigidity. It is driven by normal AC motor, ball screw and linear guide to ensure high precision operation. The finger frame has high parallelism and quick adjustment.

4. Adopt integrated hydraulic control system, more reliable and easy for maintenance.
the particular installation choices allow to obtain especially moderate noise levels both on machines of
average capacity. Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.

5. Adjustment mechanism of ram independent from oil cylinder assembly to enhance sealing effect.

6. Standard Top tool is fitted with Rapid clamping, 4-way V-Die with different openings.

7. Foot pedal with emergency stop.

8. Front ram cover with lamp for lighting.

9. Fast/quick Top tool clampings

10. Control system for hydraulic press brake: Estun NC E21,E22

Optional functions or parts,

1. Front supporters moves smoothly on linear guider along worktable in rightward or leftward, also can be adjusted up and down.

2. Safe laser protector.

3. Manual or motorized Mechanical Crowning table.

4. CNC controller Estun E300T, DA41T, SNC53, TP10S to control more axises with servo motors (X,Y,R...)

5. Main motor updates to servo motor.

6. Back-gauge beam with double linear guider to move fingers easily.

Main components:

WC67K series main parameters.
