Full Band Lojack Signal Jammer 15 Antennas Wireless Cell Phone Frequency Blocker
Full Band Lojack Signal Jammer 15 Antennas Wireless Cell Phone Frequency Blocker
Full Band Lojack Signal Jammer 15 Antennas Wireless Cell Phone Frequency Blocker
Full Band Lojack Signal Jammer 15 Antennas Wireless Cell Phone Frequency Blocker
Full Band Lojack Signal Jammer 15 Antennas Wireless Cell Phone Frequency Blocker
Full Band Lojack Signal Jammer 15 Antennas Wireless Cell Phone Frequency Blocker
Specifications
Brand Name :
PTC
Model Number :
WT15
Certification :
ISO 9000
Place of Origin :
Shenzhen China
MOQ :
1set
Price :
Contact Us
Payment Terms :
T/T, Western Union
Supply Ability :
50000
Delivery Time :
10-20days
Packaging Details :
Carton
Part number :
PTC-WT15
Jamming Frequencies :
8-15CH
Output Power :
100W
Jamming Range :
2-60meters
Software Control :
Adjust The Power and monitor Failure Alarm
Antenna :
Built-in Customized High Gain Directional or Omni Antennas
Description
Product Description

This jammer designed with built-in 15 Antennas to blocking Full Bands 130Mhz-6GHz like mobile phone GSM 3G 4GLTE 5G signal. It can not only cut off all 3G 4G 5G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless
Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming range may up to 60meters.


Product Information
Name: Full All Bands Built-in 15 Antennas Wireless Signal Jammer For blocking 3G 4G 5G Wi-Fi GPS LOJACK Output power up to 100Watt
Shielding Radius Up to 60m
Product Parameters
Full Band Lojack Signal Jammer 15 Antennas Wireless Cell Phone Frequency Blocker


Basic Specifications
Model: PTC-WT15
Color: White

Jamming Frequencies: 15 frequencies for option
Output Power:Total 100,2W/5W/10W each band
Jam Range:2-60meters
Power Supply:AC110-240V
Cooling System:High efficiency aluminum alloy radiator, Build-in
Smart cooling fans
Working Time:Not-stop Working
Product Size: 453*348*126mm (L x W x D)
Product Net Weight: appr.10kg
Package Contents: Jammer Host x 1, AC adapter x 1

Frequencies Output Power (W)
615-700MHZ 5W
700-803MHZ 10W
850-894MHZ 10W
1700-1780MHZ 5W
1920-1990MHZ 10W
2110-2180MHZ 10W
2300-2400MHZ 5W
2500-2600MHZ 5W
2600-2690MHZ 5W
23400-3600MHZ 5W
3600-3900MHZ 5W
Wifi-2400-2500MHZ 5W
Wifi-5150-5250MHZ 2W
5250-5700MHZ 2W
5700MHZ-5900MHZ 2W
Working Bands/Channels 15bands
Total Output Power 86W
Software Control For adjusting each band output power, turn on/off jammer, failure alarms
Remote Control Turn On/Off Jammer
Power Supply AC-110V, UL power plug
Jamming Range about 0-50meters , still depend on signal strength
Working Time Long time working, without time limited
Dimension 453*348*126mm (L x W x D)
Net Weight 10kgs(no covered packing)
Antennas Built-in 14pcs high gain Panel antennas
Waterproof Level IP65
Humidity 5%-95%
Working Temp. -10% to +65 ºC
Comsumption Power 270W
Working Light LED indicator
Temperature and current over protection
VSWR Protection Protection
High and low voltage input protection
Jammer Warranty 2 Years
Product Advantages

Product Advantages and Features:

  1. All in one for blocking up to 15 frequencies simultaneously.
  2. Built-in high gain Omni antennas for disguising, so the users dont need to install the antennas on site,very convenience and friendly.
  3. Low noise and easily operation.
  4. Supports Remote control for switching ON/OFF Jammer.
  5. Supports Remote Access Control (computer internet software control) for controlling each band power. Failure alarms and running time.
  6. Jammer Failure Alarms: Such as the Jammer opened maliciously, RF cables cut off deliberately, Modules failure,Temperature problems, the failure alarms will be sent to software.
  7. UPS and battery backup in case of mains power failure for option.
  8. ON/OFF each modules separately by computer software.
  9. For the cellular phone jamming, only block the downlink frequencies, not disturb the uplink for keeping the BTS normal running.
  10. Continuous operation, even in hot climates, with no time limit.
  11. Heat sink designing to make the system in a cooling status.
  12. Secure design to avoid sabotage.
  13. (VSWR) circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
  14. Strong waterproof protection, can be used outdoor all the time
  15. 2Years Quality Warranty
  16. ODM & OEM Services available

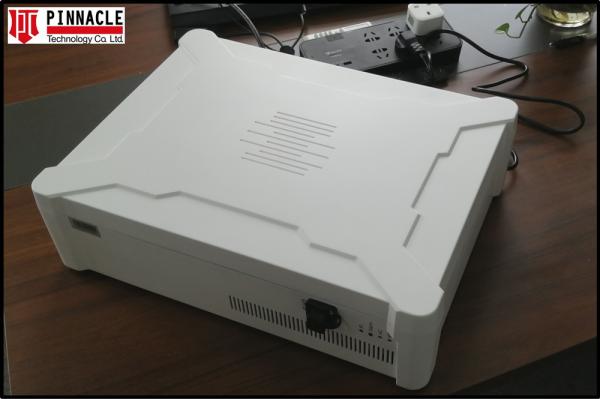

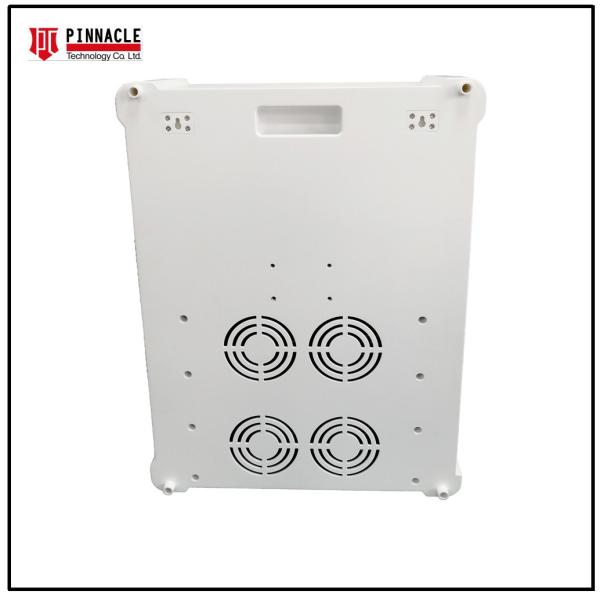

Detailed Photos

Support IR remote control and Software computer control
