Specifications
Brand Name :
PTC
Model Number :
UAVD2.0
Certification :
ISO 9000
Place of Origin :
Shenzhen China
MOQ :
1set
Price :
Contact Us
Payment Terms :
T/T, Western Union
Supply Ability :
50000
Delivery Time :
10-20days
Packaging Details :
Carton
Model NO. :
PTC-UAVD2.0
Camerna Resolution :
1080p
Radaw Detecion Distance :
3-5km
Jamming Distance :
>1000m
Description

Product Instructions:

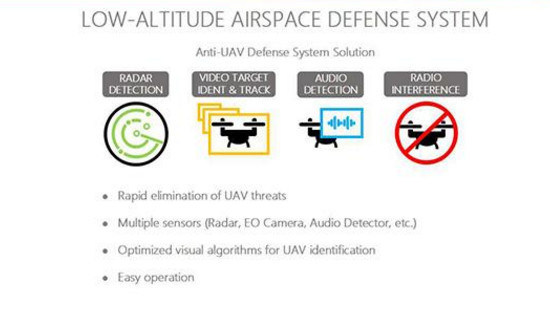

The low altitude Anti-UAV system is designed to monitor unwanted UAV potential malicious activities.

The system uses frequency-modulated continuous wave radar and photoelectric cooperative detection system as the main technical means. The radar detects the target at a long distance, the dual camera completes the search, detection and recognition of the UAV within the line of sight, and drives the identified UAV Or forced landing.

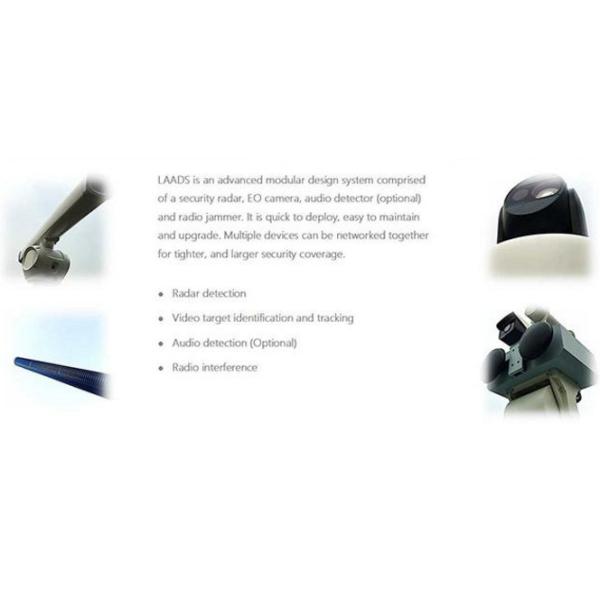

The system is scalable, allowing detection devices to access audio snooping, radio detection and radar equipment. System can be used within a network to meet the needs of different applications.

Product Specification:

Equipment Functions, Features Description

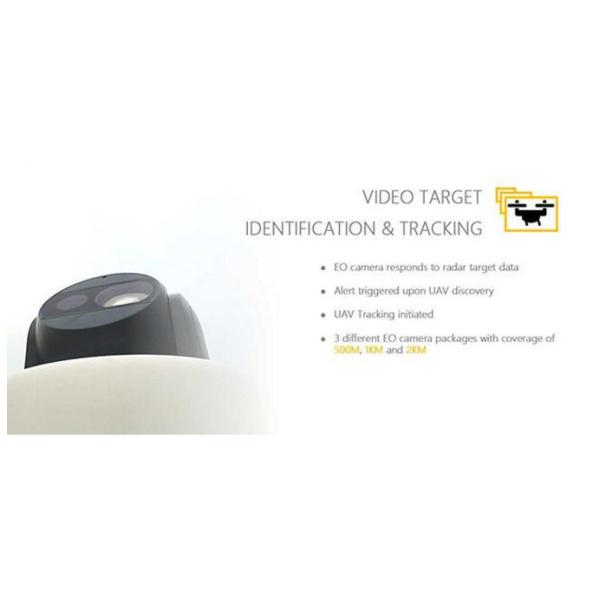

Starlight HD camera Resolution: 1080p
Clear sky: ≥ 1000 m
Night vision: > 500 m

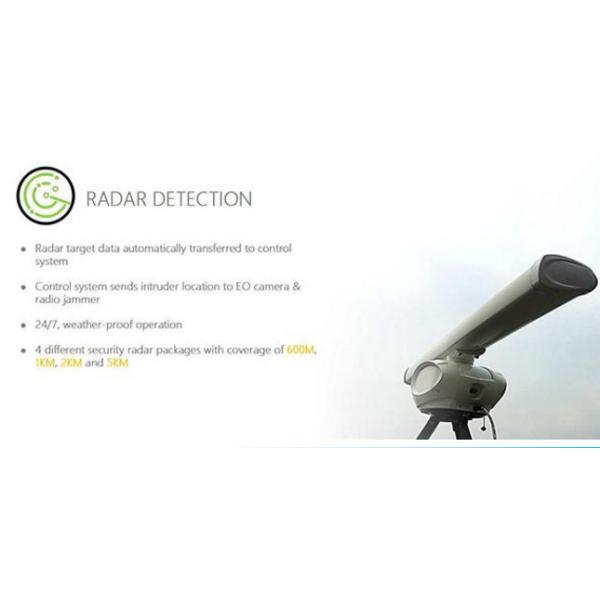

Radar System: FMCW
RCS: 0.01
Detection range: > 5 km
Radio detection module Spectral analysis
Direction detection
Frequency Range: ISM typical frequency band
Range: > 2km, Directional accuracy: 1~3°R.M.S

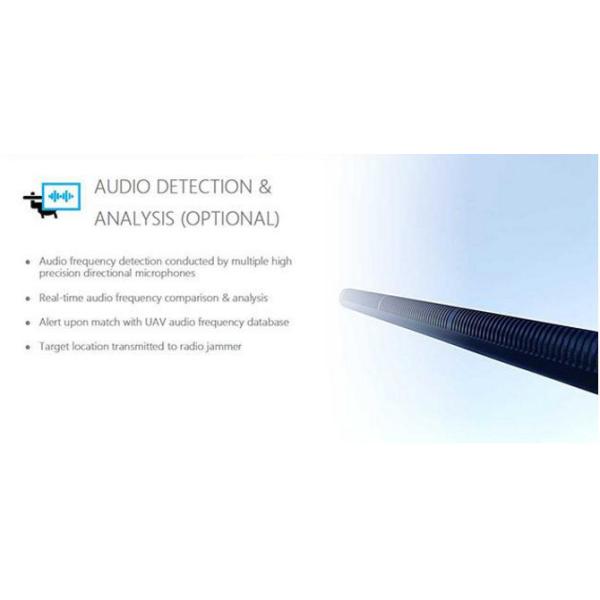

Audio detection module Range: 200 m
Fixed Unmanned Aerial Vehicle Jamming Equipment Range: > 1000 m, with the omni antenna
GPS Cheating module Power: 10 w
Range: ≤ 5 km
Anti-UAV module Band: 2.4GHz, bandwidth 100MHz
5.8GHz, bandwidth 40MHz
1.5GHz, bandwidth 40MHz
Range: ≥ 1000 m
Portable Anti-UAV module Band: 2.4GHz, bandwidth 100MHz
5.8GHz, bandwidth 40MHz
1.5GHz, bandwidth 40MHz
Range: ≥ 500 m

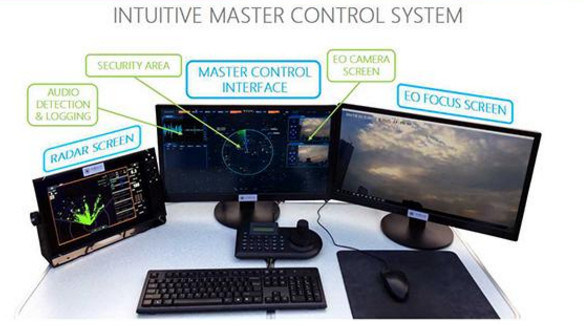

Command and Dispatch system Multi-target processing capability: 20 batches
