12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
Specifications
Brand Name :
PTC
Model Number :
H12-12W
Certification :
ISO 9000
Place of Origin :
Shenzhen China
MOQ :
1set
Price :
Contact Us
Payment Terms :
T/T, Western Union
Supply Ability :
50000
Delivery Time :
10-20days
Packaging Details :
Carton
Part number :
PTC-H12-12W
Output Power :
12W
Working Frequencies :
2g+3g+4g+5g+wifi+gps
Battery :
about 2hours
Description
Product Description

The all-in-one design portable wireless signal Jammer, 12 bands jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G, and CDMA 450Mhz, Block LOJACK GPS, Wi-Fi, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868 and so on.

Product Parameters

12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
Basic Specifications
Name: 12 Antennas Handheld Portable Mobile Phone Signal Jammer with big power up to 12W
Model:PTC- H12-12W
Color: Silver

Jamming Frequencies: 12 bands for option
Output Power:Total 12W,1W each band
Jamming Range:2-30meters
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 2 cooling fans
Working Time:Built-in battery:7.4V/12000mAh Continue working: about 2.0+ hours
Product Size:160x 105x 50 mm(not Include Antenna)Length of antenna :120mm Gain:2.0dbi
Product Weight: appr.1.5kg (N.W)
Package Contents:Jammer Host x 1, AC Charger x1,antenna x10,Car Charger x1,Cover x1
Key technical specifications: PTC-H12-12W
Channel Output port Frequency range Output Power (+/- 3dBm)
1 4G LTE 720-805MHz or
790-830MHz		 30dBm/1W
2 CDMA850 850-894MHz 30dBm/1W
3 GSM900 925-960MHz 30dBm/1W
4 GSM1800 1805-1880MHz 30dBm/1W
5 PCS 1930-1990MHz 30dBm/1W
6 3G 2110-2170MHz 30dBm/1W
7 4G 2300 2300-2400MHz 30dBm/1W
8 4G 2600 2500-2690MHz 30dBm/1W
9 5G 3400 3400-3600MHz 30dBm/1W
10 Wifi 2.4g 2400-2484MHz 30dBm/1W
11 Wifi 5.8G 5100-5800MHz 30dBm/1W
12 GPS L1 + Glonass 1570-1620MHz 30dBm/1W
Power supply: adapter 50 to 60Hz AC (110V AC/12V DC) Car Charger:DC12V IN
Dimensions: (length ,width, height) 160x 105x 50 mm (not include antenna)
Length of antenna :120mm Gain:2.0dbi
Packing size: 25*22*8.5cm Net weight: 1.5kg Gross weight: 2.5kg
Total working Channels: 12 frequencies for option Total power: 12W
Jamming range: (2-20) meters at -85dBm Still depends on the strength signal in given area
Built-in battery:7.4V/12000mAh Continue working: about 2.0+ hours
Warranty: 1 year from delivery date
Each band module can be switch on/off and work separately
LED Indicator for each band working
The Jammer can work during Charging
Product Advantages

World first handheld design 12 all-in-one frequencies blocking all cell phone signals, LOJACK GPS, Wi-Fi, RF signals
12 watt high output power and high gain antennas, Jamming range 2 to 30 meters (at-85dBm, depends on signal strength in given area)
with Green Cover Hang or wear on the arm or belt, easy to carry on, handheld
Good cooling system with cooling fans inside and bigger hot sink
With DIP switch, can turn on/off any signal band without affect other bands
With car charger, can used in car directly, 12V DC/AC power supply is also available
With built-in bigger battery, can work more than (2.0+ hours) 120 minutes
Use the world's most safety high-capacity battery, can be repeated charging


OEM customized service:
Customized for special frequency band , Wi-Fi5G, Wireless Camera 1.2GHz etc
Silkscreen OEM service can be offered

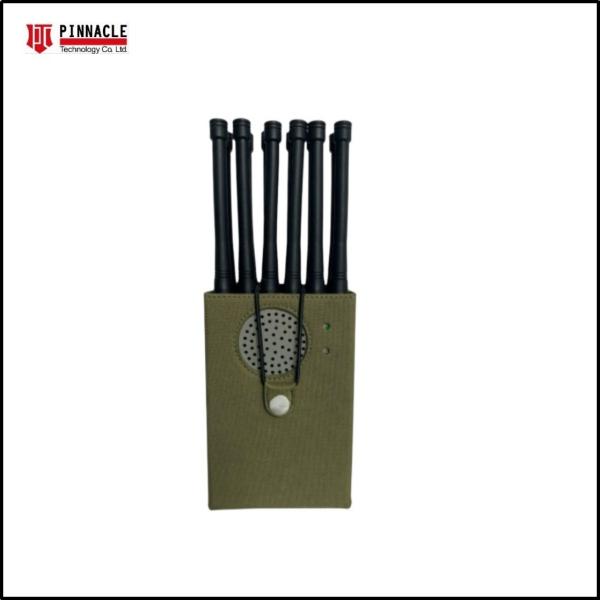

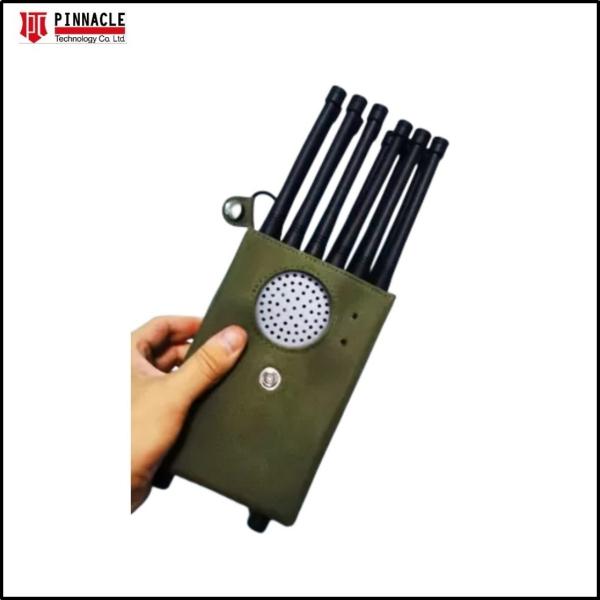

Detailed Photos
12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker

12CH Handheld Cellular Military Cell Phone Jammer VHF UHF Radio Signal Blocker
