Electronic Devices Ceramic Air Heater , PTC Thermal Resistor RoHS Certification
Electronic Devices Ceramic Air Heater , PTC Thermal Resistor RoHS Certification
Electronic Devices Ceramic Air Heater , PTC Thermal Resistor RoHS Certification
Electronic Devices Ceramic Air Heater , PTC Thermal Resistor RoHS Certification
Specifications
Brand Name :
HWA
Model Number :
PR4
Certification :
RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100,000pcs
Delivery Time :
15 to 20 days
Packaging Details :
Standard CTN package or according to customer’s requirement
Approval :
RoHS
parameters :
voltage,power,size,etc.
material of heat sink :
aluminum
Extra-low-air-resistance :
Fin pitch: 2.0m/m, 2.6m/m
Dimensions :
customized
material :
ceramic, aluminum
power :
50W~2000W
Description

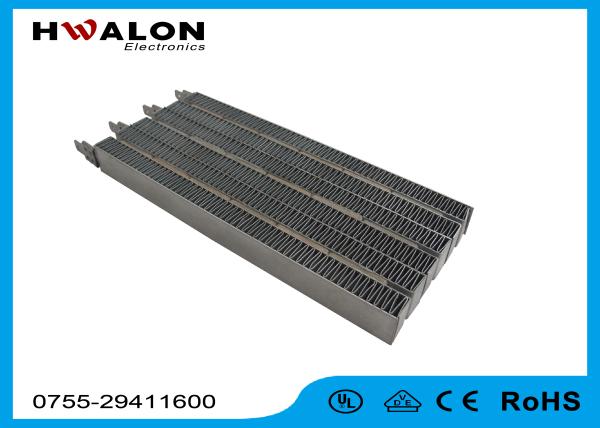

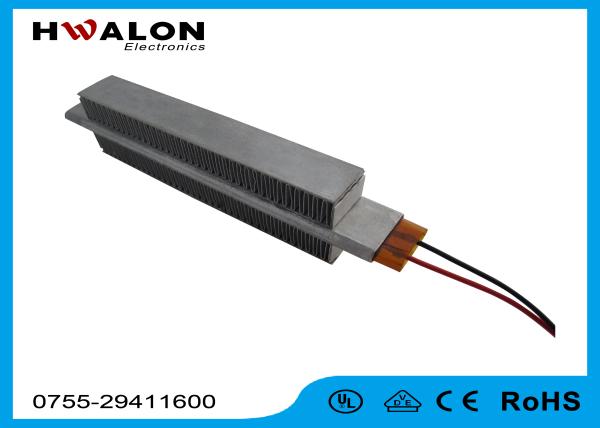

Electronic Devices Ceramic Air Heater , PTC Thermal Resistor RoHS Certification


Description:

1. Does not cause oxygen shortage when used for a long time;
2. Internal safety-fuse protection;
3. Current will automatically cut-off to prevent abnormal large current or other external factors causing safety concerns;

4. Water-proof, no electricity leakage or cause short circuit;
5. The higher the temperature, the more power efficient;
6. When heated under no airflow, does not crack, burst or burn

Feature
1. With charcteristics of constant temperature
2. PTC hearter does not require temperature controlling system
3. It is safe when liquid is burnt out in liquid heating device
4. Not sensitive to voltage fluctuating
5. Wide operating voltage
6. Restore automatically after invalidation



Specifications:

PTC Air Heater Models
ModelsDimension(mm)Aluminum tubesFin width(mm)Fin pitch(mm)
MH

26*90*L

L:70, 93, 106, 128, 150, 185, 202

390

1.2(S),

2.6(B),

2.0(N)

SS148*44.5*15/ 148*22.5*15/ 120*107*15/ 96*88.5*15/ 96*22.5*15/ 25*22.5*15/ 45*44.5*15N/AN/AN/A


Input current: 2A to 30A
Rated voltage: 24V to 240V

Applications:

applications

hair dryer, clothes dryer, iron, laminating machine, adhesive sealing machine,
3C products and other outdoor electronic devices, air conditioner, hand dryer



Competitive Advantage:

1. No thermostat required;
2. Self regulating heating control;
3. Long service life;
4. High reliability, impossible to overheat.
5. Very low air resistance, high efficiency;
6. No smell, no radiation;


How to Order:

In order to help you get the exact model, please offer the following necessary info.:

1. application of the PTC heater: _________
2. working environment of PTC heater: ________
3. the range of operation temperature: ___°c to ___°c
*4. dimension and the drawing of the heater
*5. dimension: _____mm* _____mm* _____mm
*6. power: _____W
*7. voltage: _____V
*8. wind speed: _____m/s
*9. insulated or not insulated

* Fill " * " items necessarily.

Once the obove parameters is confirmed,the most favorable price will be offered to you.
Each order will be executed immediately once confirmed,in order to produce and dispatch the goods to you ASAP.
Meanwhile,we also expecting the Next order will comes soon.




Electronic Devices Item PTC Air Heater PTC Heating Resistor in Customized Shape

Electronic Devices Ceramic Air Heater , PTC Thermal Resistor RoHS Certification

If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
