16V 30V 42V 60V 72V PPTC Resettable Fuse Thermistor for USB hub, Ports and Peripherals

Description:

Polymer resettable fuse are made of polymeric PTC materials which is a matrix of polymer containing dispersed conductive particals. Generally, the device has a very low resistance. If an over-current happened, as a response to the damage current, the resistance will immediately increase to very high, reducing the current of the circuit to a safe value that the loading can carry. Once fault to the circuit is weed out and power is recuperated, the polymer will deflate itself, the device will reset and is ready for normal operation.

Features:

1. Smaller size saves board space and cost

2. Resettable circuit protection

3. Fast time-to-trip

4. Low resistance

5. Lead-free and compliant with the European Union RoHS Directive 2002/95/EC

Application:

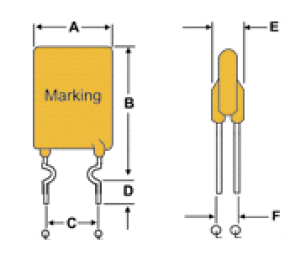

Dimension:

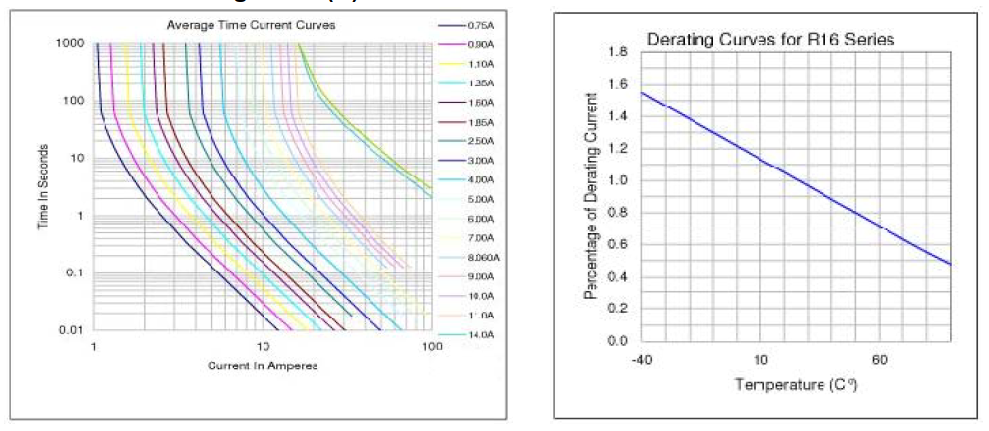

Thermal Derating Chart:

Part of Specification:

1.Small size;Low resistnce
2.Resetable circuit protection
3.Fast response
4.16V,30V,60V,120V

Competitive Advantage:

1. Smaller size saves board space and cost

2. Resettable circuit protection

3. Fast time-to-trip

4. Low resistance

5. Lead-free and compliant with the European Union RoHS Directive 2002/95/EC

6. A matrix of polymer containing dispersed conductive particles

7. Response quickly when facing damage current

8. Considerate service & reasonable price

How to Order

In order to help you to get the exact model, please offer the following necessary info.:

*1. Size of PPTC: ________ mm

*2. Current of PPTC: ________ A

* Fill " * " items necessarily

Once the obove parameters is confirmed,the most favorable price will be offered to you.

Each order will be executed immediately once confirmed,in order to produce and dispatch the goods to you ASAP.

Meanwhile,we also expecting the Next order will comes soon.

FAQ:
