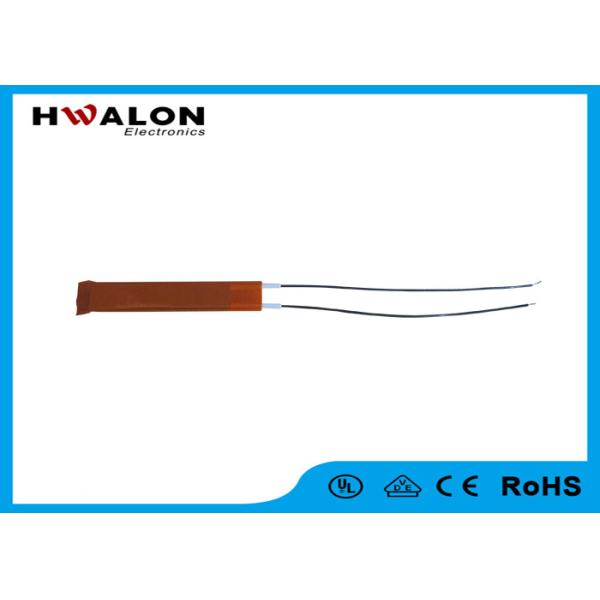

Polyimide Material Instant Water Ptc Ceramic Heater , Ptc Heating Element

Introduction:

This is kinds of Ceramic heating element is a new type of surface heating insulation. In the ordinary PTC components on both sides of the installation of a pair of lead metal electrodes, and then the appearance of metal electrodes on the polyimide film, simple structure, no additional temperature control device can be constant temperature heating and high dielectric strength, safety Reliable, sustainable heating power stability, the use of a wide range of voltage, long life, the other dimensions flexible and diverse, according to the actual needs of customers build various models specifications.

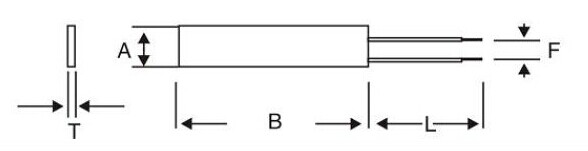

Drawing:



Parameters:

Advantages:

1. use of safety; no burning
2. fever is not red; no open flame
3. Restore automatically after invalidation.
4. It is safety, high power, high reliability.
5. It uses wide range of ambient temperature
6. Not sensitive to voltage fluctuating,and wide range of operating voltage.

Applications:

1. Beauty wax therapy instrument
2. Hot melt,glue gun,heat equipment
3. Foot warmer,monitors,liquid heater
4. Electric plywood, ion hot,Ceramic hot
5. Steamed noodle
Company information:

Hwalon Electronic Limited with 15 years experience on PTC NTC thermistor fild.
1. Competitive price
2. On time handle over
3. Competitive price
4. RoHS &UL compatible
5. Good team waiting here to serve for you
6. OEM & ODM business accept
7. Inquiry answered in 24hrs
8. Main Market: Europe,North America,Asia

How to Order:

1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____
* Fill “*” items necessarily
