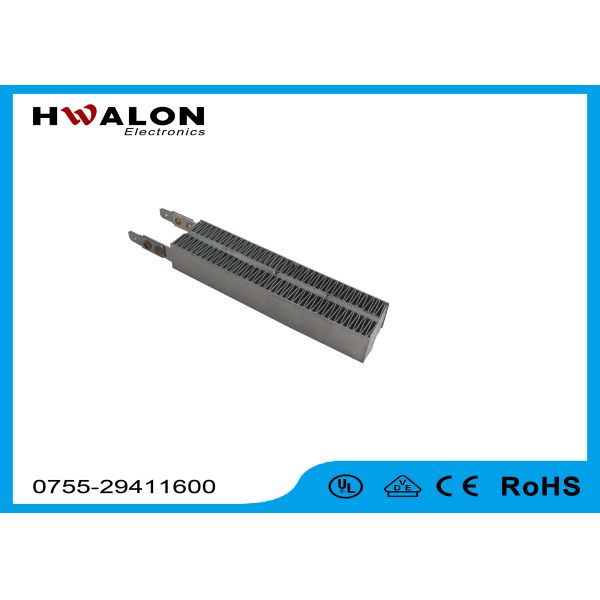

Long Service Life 120V 800W PTC Ceramic Air Heater With Electricity 4 M / S Wind Speed
Long Service Life 120V 800W PTC Ceramic Air Heater With Electricity 4 M / S Wind Speed
Long Service Life 120V 800W PTC Ceramic Air Heater With Electricity 4 M / S Wind Speed
Long Service Life 120V 800W PTC Ceramic Air Heater With Electricity 4 M / S Wind Speed
Specifications
Brand Name :
HWA
Model Number :
PR4
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100,000pcs
Delivery Time :
15 to 20 days
Packaging Details :
Standard CTN package or according to customer’s requirement
Heater Application :
Clothes Dryer
Terminal :
Based On Your Demands
Sample Supply :
Available For Your Testing
Heater Design :
Ripple Design
Wind Speed :
4 m/s
Features :
With Electricity & Terminal
Target Market Group :
Europe,North America, Asia
Description

Long Service Life 120V 800W PTC Air Heater With Electricity For Clothes Dryer

Description​ :
PTC Air Heater Model
Model Dimension (mm) Aluminum Tubes

Fin Width

(mm)

Fin Pitch

(mm)
TH

26mm × 45mm × L

L (mm) : 70, 93, 106, 128, 150, 185, 202

 2 45 2.0 (N)

Features:

1. Self regulating heat control;

2. EMF-free, passes EMI,EMC tests


3. Does not crack, burst or burn when heated under no airflow;
4. Does not cause oxygen shortage when used for a long time;

5. PPS frames and other accessories available;

6. The higher the temperature, the more power efficient.

Detailed Parameters:
Item Parameters
Inner PTC Element Shape Rectangular shape
Inner PTC Element Material Ceramic
Heater Shape Rectangular shape
Heater Size 24 × 43 × 105mm
Heater Material Aluminum
Design Ripple Design
Power 800 W
Voltage 120 V
Surface Temperature 230 degree
Wind Speed 4 m/s
Others With Electricity
With Terminal
All the above parameters is customized to meet customers' requirements.
If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.
Special Models and PTC Air Heater Accessories
Special PTC Air Heater models and accessories are also available.
Please download the related files from our website, or contact our friendly sales representatives for a copy.

Specifications:

PTC Air Heater Models
Fin Pitch Voltage Power Safety
1.2mm, 1.68mm, 2.0mm, 2.6mm Includes Safety Fuse Both AC/DC available 50~2000W

UL,VDE,TUV

  • Extra-high-heating-efficiency (Fin Pitch: 1.2m/m, 1.68m/m)
  • Extra-low-air-resistance (Fin Pitch: 2.0m/m, 2.6m/m)
  • Includes Safety Fuse

  • Voltage: AC/DC 12V/24V/48V/72V/120V/240V/300V/400V/480V/560V
  • Power: 50~2000W

  • Safety: CUL, VDE, TUV
  • Patents: US, Germany, France, Britan, China

Custom Specifications:
Custom specifications can be designed according to customer's requirements.
The PTC heat output can be regulated by the airflow applied in typical applications of heat generation. The higher the airflow, the higher the heat output.
Applications:

This PTC Heater is used for Clothes Dryer.

It also can be used in:

PTC Air Heater
Air Cleaner Body Dryer
Central Air-conditioner Biology heating
Massage apparatus Physical treatment
Typical Applications:
DC/AC---Can be used on automobile (electric car) and other applications for heating, dehumidifying, thermal retention or use for general household electronic appliances like hand dryer, air conditioner, iron, laminating machine, adhesize sealing machine etc.
Other applications include freeze protection of outdoor surveillance camera, 3C products and other outdoor electronic devices.

Packing:

Each product will be packed in carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by sea,any way you like.

Delivery:

15 ~ 20 days is needed for mass production after payment received. Then send out as customers' demands.

Long Service Life 120V 800W PTC Air Heater With Electricity For Clothes Dryer

Long Service Life 120V 800W PTC Ceramic Air Heater With Electricity 4 M / S Wind Speed

If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
