Casing Heat Exchanger Is Efficient Durable Not Prone To Wear And Tear And Is Easy To Maintain

1. Introduction to sleeve and tube heat exchangers

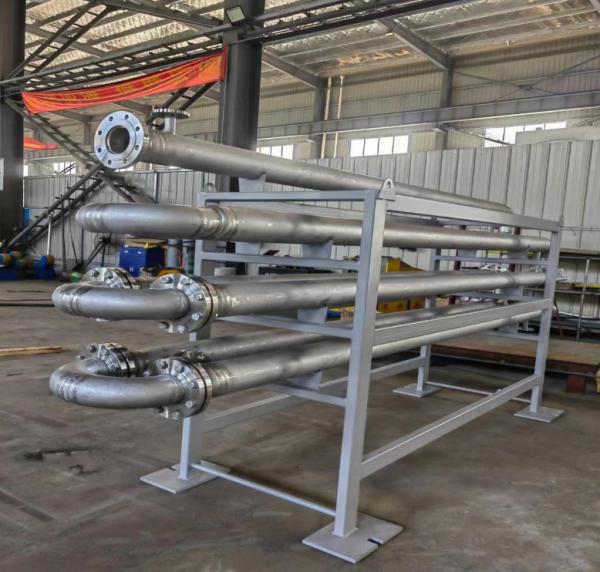

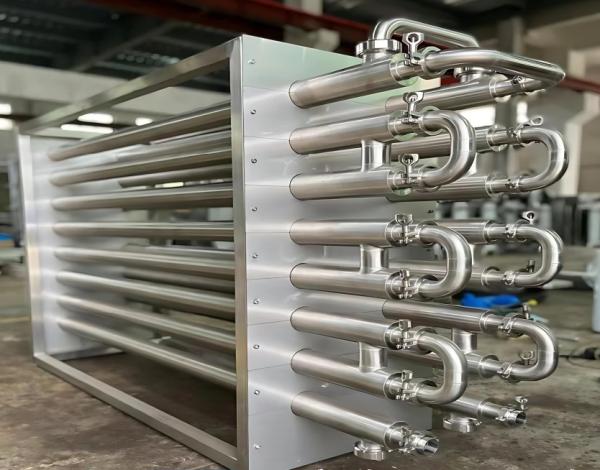

A sleeve-type heat exchanger uses an inner tube in a concentric sleeve as a heat transfer element. Two types of tubes with different diameters are put together to form a concentric casing. Each section of casing is called "a process". The inner tube (heat transfer tube) of the process uses a U-shaped elbow tube, while the outer tubes are connected in a row with short tubes. Fixed on the bracket.
Heat is transferred from one fluid to another through the inner tube wall. Generally, hot fluid is introduced from the upper part, while cold fluid is introduced from the lower part. The two ends of the outer tube in the casing are connected to the inner tube by welding or flanges. The inner tube and the U-shaped elbow tube are usually connected by flanges, which facilitates cleaning, addition and removal of heat transfer tubes. It is widely used in industrial processes in different fields such as chemical industry, petroleum, fertilizer, food and so on.

2. Main features of the product
(1) Can be applied to a variety of fluids
The tube-and-tube heat exchanger has good adaptability because it can be applied to a variety of special fluids, such as fluids containing corrosiveness and high viscosity. This is because the two fluids in the tube are separated, and each fluid can use corresponding materials to make the tube and casing.
(1) Efficient and durable, not easy to wear
The unique design of the sleeve-type heat exchanger allows the heat exchanger to maintain effective operation under high temperature, high pressure and harsh environments. In addition, sleeve-and-tube heat exchangers are designed to avoid friction and wear similar to other types of heat exchangers.
(3) Easy maintenance
The compact design of the tube-and-tube heat exchanger reduces the trouble and tediousness that may occur during disassembly and assembly, which makes maintenance and cleaning tasks simpler and allows for more effective sediment removal.
