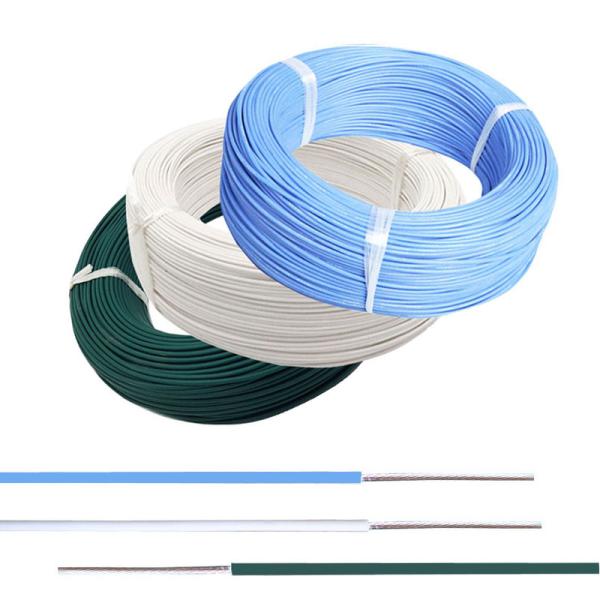

22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire
22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire
22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire
22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire
Specifications
Brand Name :
SANCO
Model Number :
AFK-250
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray or Packing in roll with carton box
Insulated Material :
PFA
Conductor Material :
Silver Plated or Tinned Plated Copper
Working Temperature :
-65℃ ~+250℃
Rated voltage :
AC 600V or below
Wire Gauge :
30~8AWG
Available Colors :
White, Black, Green, Blue, Red, Yellow, Orange, Brown...
Core Number :
Single Core or Multicores
Sample :
Freely Supplied if available
Description

20AWG Silver Plated Copper High Temperature Resistance PFA Insulated Wire

Applications:

1. Internal wiring for electronic devices, information devices etc.

2. Military Industry

3. Oil and Gas Industry

4. Aerospace Industry

Specification:

Insulated: PFA Insulated

Conductor Materials: Silver Plated Stranded Copper

Core Number: Single Core or Multicores

Working temperature: -65℃~+250℃

Wire Gauge: 30 ~ 8 AWG

Available Colors: Black, White, Yellow, Brown, Red, Purple, Green, Blue and etc...

22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire

type Name
AFK-250 PFA insulated silver plated copper high temperature wire
AFKP-250 PFA insulated silver plated copper shielded high temperature wire

Section area
(mm2)		 Wire gauge
AWG		 Conductor construction
piece/diameter
(mm)		 Insulation thickness
(mm)		 Outer diameter
(mm)		 Max. Conductor resistance at 20℃
(Ω/Km)
0.05mm2 30AWG 7/0.1mm 0.2mm 0.7mm 376.2
0.2mm2 24AWG 7/0.2mm 0.30 1.2mm 83.5
0.35mm2 22AWG 19/0.16mm 0.35mm 1.4mm 49.5
0.5mm2 20AWG 19/0.18mm 0.35mm 1.6mm 36.7
1mm2 18AWG 19/0.26mm 0.35mm 2mm 19
1.2mm2 16AWG 19/0.28mm 0.35mm 2.1mm 15.3
2mm2 14AWG 19/0.37mm 0.4mm 2.65mm 9.45
8mm2 8AWG 133/0.28mm 0.5mm 5.2mm 2.16
20mm2 4AWG 133/0.45mm 0.6mm 8.0mm 0.886

22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire

22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire


22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire22AWG Heat Resistant Silver Plated Copper Extruded PFA Insulation Wire
