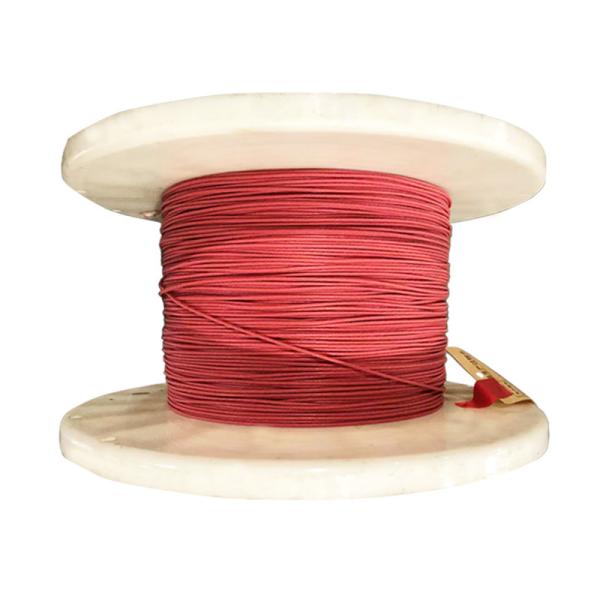

Silver Plated Copper 250 Degree PTFE Insulation Wire Heat Proof
Silver Plated Copper 250 Degree PTFE Insulation Wire Heat Proof
Silver Plated Copper 250 Degree PTFE Insulation Wire Heat Proof
Silver Plated Copper 250 Degree PTFE Insulation Wire Heat Proof
Specifications
Brand Name :
SANCO
Model Number :
AFR-250
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray / Packing in roll with carton box
Application :
For Electric components
Conductor Materials :
Silve Plated Copper
Insulated :
PTFE Insulated
Features :
High temperature resistance
Working Temperature :
-60 ~+250℃
Wire Gauge :
10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG...
Colors :
Orange, White, Green, Red, Yellow, Violet, Gray, Blue, Black...
Rated voltage :
600V or below
Conductor Type :
Stranded
Description

Heat-Proof Silver Plated Copper 250 Degree PTFE Insulation Wire

Application:

Internal wiring for electronic equipment and small electrical equipment; Used for Electric components, Oil equipment, Automotive cables, Outdoor lighting, PTC thermistors, etc.

Properties of PTFE Wire:

1. Rated voltage: 600V and below
2. Working temperature: -60 ~ 250℃
3. Conductor Material: Silver Plated Copper

4. Conductor Type: Stranded
5. Insulation: PTFE Insulation
6. Colors: White, Orange, Black, Red, Yellow, Blue, Brown, Grey, Green, Violet...

7. Core Number: Single Core
8. Test voltage: 1000V, 1500V, 2500V

Conductor


Insulation

thickness
mm

 Wire outer diameter
mm		 Resistance of insualtion
Nominal section area
mm2		 single wire x dia. Conductor Dia.
mm		 110V 250V 600V AFR-250 type AFRP-250 type MΩ·km
mm 110V 250V 600V 110V 250V 600V
0.013 7×0.05 0.15 0.1 0.15 0.25 0.38 0.49 0.71 0.7 0.82 1.02 5×103
0.035 7×0.08 0.24 0.1 0.15 0.25 0.47 0.58 0.81 0.85 0.91 1.14
0.06 7×0.10 0.3 0.1 0.15 0.25 0.55 0.65 0.87 0.9 0.97 1.2
0.08 7×0.12 0.36 0.1 0.15 0.25 0.6 0.7 0.93 1 1.03 1.26
19×0.07
0.1 7×0.14 0.42 0.1 0.15 0.25 0.7 0.83 1 1.05 1.15 1.3
19×0.08
0.14 7×0.16 0.5 0.1 0.15 0.25 0.73 0.85 1.05 1.05 1.18 1.45
19×0.10
0.2 7×0.20 0.6 0.15 0.3 0.85 0.97 1.3 1.3 1.4 1.7
19×0.12
0.35 7×0.25 0.8 0.15 0.3 1.2 1.5 1.6 1.9
19×0.16
0.5 7×0.30 0.9 0.15 0.3 1.3 1.6 1.7 2
19×0.18
0.8 7×0.37 1.1 0.2 0.3 1.65 1.85 2.05 2.3
19×0.23
1 19×0.26 1.3 0.2 0.3 1.88 2 2.25 2.45
1.2 19×0.28 1.4 0.2 0.3 1.95 2.15 2.38 2.55
1.5 19×0.32 1.6 0.2 0.3 2.15 2.35 2.63 2.83
2 19×0.37 1.85 0.2 0.3 2.4 2.6 2.97 3.08
2.5 19×0.14 2.34 0.2 0.35 2.95 3.2 3.43
49×0.26
3 49×0.28 2.52 0.2 0.35 3.1 3.37 3.5
4 49×0.32 2.88 0.35 3.52 4.12
6 49×0.39 3.51 0.35 4.15 4.75

Noted: Specification and core no. are not limited to above regulation, they could be customized.
