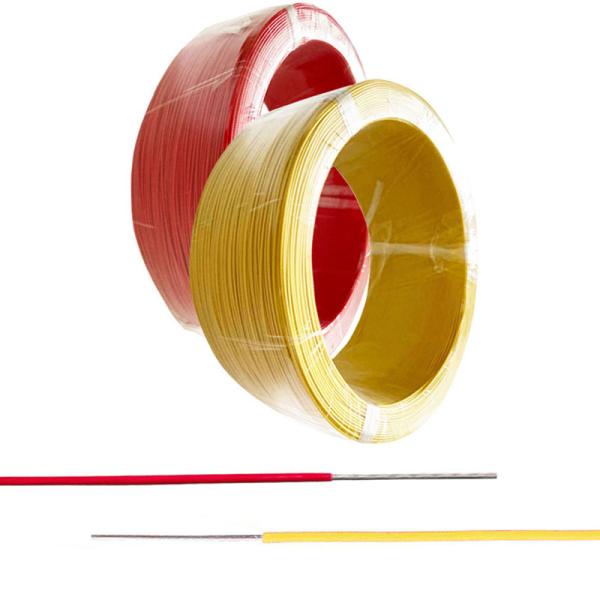

Fluoroplastic Heat Resistance Wire FEP PFA ETFE PTFE Insulated
Fluoroplastic Heat Resistance Wire FEP PFA ETFE PTFE Insulated
Fluoroplastic Heat Resistance Wire FEP PFA ETFE PTFE Insulated
Fluoroplastic Heat Resistance Wire FEP PFA ETFE PTFE Insulated
Specifications
Brand Name :
SANCO
Model Number :
AF-200, AFK-250, AFR-250
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray or Packing in roll with carton box
Insulated :
FEP, PFA, ETFE, PTFE
Working temperature :
-65℃~+250℃, -65°C ~+200°C
Features :
high temperature Resistant
Available Color :
White, Yellow, Purple, Green, Gray, Blue, Red, Black...
Core Number :
Single Core or Multicores
Gauge :
8AWG ~ 28AWG...
Conductor Material :
Tinned Plated Copper or Silver Plated Copper
Rated voltage :
AC 220V or 600V or Below
Customized product :
Yes
Description

FEP PFA ETFE PTFE Insulation Heat Resistance Fluoroplastic Wire

High temperature is called fluoroplastics,There are PTFE, FEP, PFA, ETFE total 4 types:


1. High temperature PTFE: PTFE wire can be continuously used at 250 degree, very low coefficient of friction, good wear resistance and excellent chemical stability.
2. High temperature FEP: FEP wire with excellent chemical stability, excellent non-stick characteristics, the maximum operating temperature is 200℃.
3. High temperature PFA: PFA wire has higher continuous service temperature of 250℃, stronger toughness, especially suitable for use in high temperature anti-stick and chemical resistance applications
4. High temperature ETFE: ETFE wire is a copolymer of ethylene and tetrafluoroethylene with excellent chemical resistance and continuous operation at 150℃

Wire Gauge
(AWG)		 Section area
(mm2)		 Conductor construction
piece/diameter
(mm)		 Insulation thickness
(mm)		 OD
(mm)		 Max. Conductor resistance at 20℃
(Ω/Km)		 Packing length
(m)
10awg 5mm2 37x0.43mm 0.33mm 3.67 3.546 305
12awg 3mm2 19x0.49mm 0.33mm 3.11 5.64 305
14awg 2mm2 19x0.37mm 0.33mm 2.51 8.96 305
16awg 1.2mm2 19x0.3mm 0.33mm 2.16 14.6 305
17awg 19x0.26mm 0.33mm 1.96 18.3 305
18awg 1mm2 19x0.23mm 0.33mm 1.81 23.2 305
20awg 0.5mm2 19x0.2mm 0.33mm 1.61 36.7 305
1x0.8mm 0.33mm 1.46 35.2 305
22awg 0.3mm2 19x0.16mm 0.33mm 1.46 59.4 610
1x0.65mm 0.33mm 1.31 56.4 610
24awg 0.2mm2 7x0.2mm 0.33mm 1.26 94.2 610
1x0.5mm 0.33mm 1.16 89.3 610
26awg 0.12mm2 7x0.16mm 0.33mm 1.14 150 610
1x0.4mm 0.33mm 1.06 143 610
28awg 0.08mm2 7x0.12mm 0.33mm 1.02 239 610
1x0.32mm 0.33mm 0.98 227 610
30awg 0.06mm2 7x0.1mm 0.33mm 0.96 381 610
1x0.254mm 0.33mm 0.914 361 610
32awg 0.035mm2 7x0.08mm 0.41mm 1.06 664.8 610
1x0.2mm 0.41mm 1.02 588.3 610

Fluoroplastic Heat Resistance Wire FEP PFA ETFE PTFE Insulated

Fluoroplastic Heat Resistance Wire FEP PFA ETFE PTFE Insulated
