300V PVC Insulated PVC Sheathed Cable Multicores Oil Cold Resistance
300V PVC Insulated PVC Sheathed Cable Multicores Oil Cold Resistance
300V PVC Insulated PVC Sheathed Cable Multicores Oil Cold Resistance
300V PVC Insulated PVC Sheathed Cable Multicores Oil Cold Resistance
Specifications
Brand Name :
SANCO
Model Number :
TRVV
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Supply Ability :
100000M/Per Month
Delivery Time :
5~10days
Packaging Details :
Cable tray or Packing in roll with carton box
Insulation Materials :
105℃ PVC Insulated
Conductor :
Stranded Copper
Sheath :
105℃ PVC Jacket
Features :
High flexible, Oil and Cold resistance
Rated voltage :
300/300V or 300/500V
Working temperature :
-40 to +80 Degree
Core Number :
Multicores
Sheath Color :
Black
Sample :
Free Provide if Available in warehouse
Description

Oil and Cold Resistance High Flexiblility Multicores TRVV Drag Chain Cable

About Drag Chain Cable

The drag chain cable is specially designed for the need of high bend bending and continuous motion

It's widely use for industrial electronic systems, storage, equipment, robot CNC machine tools, mechanical automation and drive systems, for high flexible towchain system power supply, high-speed signal transmission.

Features:

High flexibility, tensile resistance, abrasion resistance, cold resistance, oil resistance, bending resistance, folding resistance.

Oil Resistant Sheath
The sheath is environmentally friendly, resistant to oil and bending. Suitable for robots, tank chains, engraving machines, CNC machine tools and other equipment. Suitable for all kinds of oily workplaces.

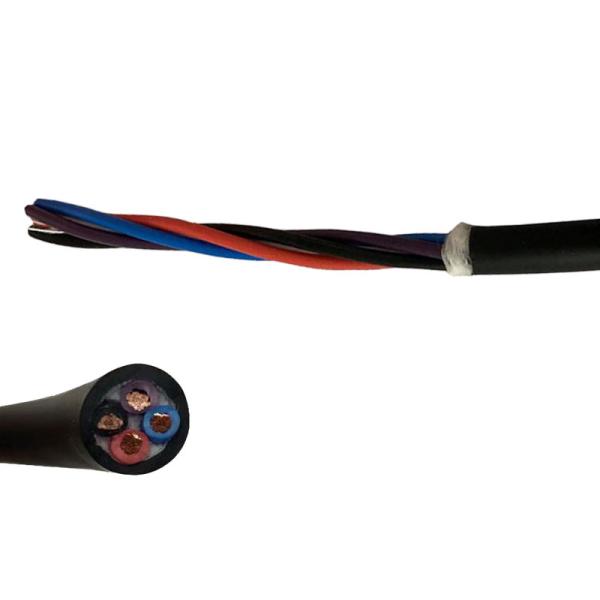

Structure of Drag Chain Cable

1. Conductor: multi-strand oxygen free copper wire with high bending strength

2. Insulation: special PVC compound

3. Core structure: Wire core stranding with small pitch, wrapped in non-woven fabric

4. Sheath: special PVC compound

Electrical properties:

Working voltage: 300/500V

Insulation resistance: 20MOhm x KM

Minimum bending radius: Mobile installation: 7.5 x cable diameter (< 4.0mm2); Fixed installation: 4 x cable diameter

Temperature range: Mobile installation 0Degree to +70 Degree; Fixed installation -40Degree to +80Degree

Model

Specification

mm2

Outer Diameter

mm

Wire core

mm

Conductor structure

mm
TRVV 2*0.2 4.4 1.4 40/0.08
TRVV 2*0.3 4.6 1.6 60/0..08
TRVV 2*0.5 5.6 1.9 100/0.08
TRVV 2*0.75 6.4 2.2 150/0.08
TRVV 2*1 7.2 2.5 200/0.08
TRVV 2*1.5 8 2.9 300/0.08
TRVV 2*2.5 10 3.6 500/0.08
TRVV 3*0.2 4.8 1.4 40/0.08
TRVV 3*0.3 5.2 1.6 60/0..08
TRVV 3*0.5 6 1.9 100/0.08
TRVV 3*0.75 7.2 2.2 150/0.08
TRVV 3*1 7.8 2.5 200/0.08
TRVV 3*1.5 9 2.9 300/0.08
TRVV 3*2.5 10.6 3.6 500/0.08
TRVV 4*0.2 5 1.4 40/0.08
TRVV 4*0.3 5.4 1.6 60/0..08
TRVV 4*0.5 6.6 1.9 100/0.08
TRVV 4*0.75 7.8 2.2 150/0.08
TRVV 4*1 8.6 2.5 200/0.08
TRVV 4*1.5 9.8 2.9 300/0.08
TRVV 4*2.5 11.3 3.6 500/0.08
TRVV 5*0.2 5.4 1.4 40/0.08
TRVV 5*0.3 6.2 1.6 60/0..08
TRVV 5*0.5 7.2 1.9 100/0.08
TRVV 5*0.75 8.5 2.2 150/0.08
TRVV 5*1.0 9.8 2.5 200/0.08
TRVV 5*1.5 10.6 2.9 300/0.08
TRVV 5*2.5 13.2 3.6 500/0.08
