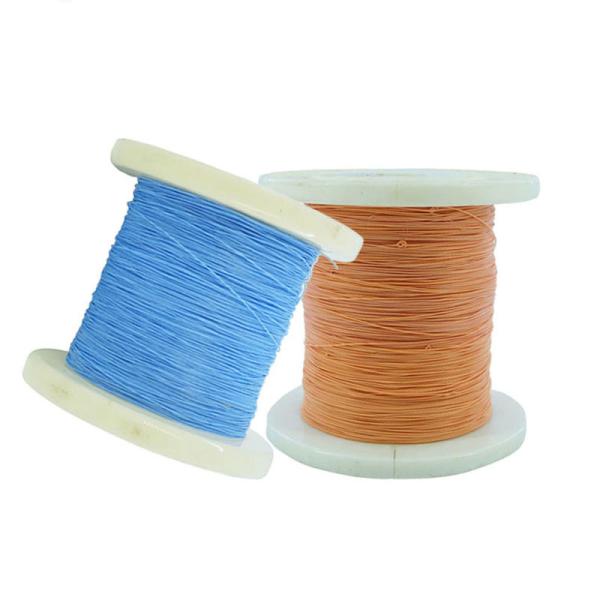

Fluoroplastic PTFE Insulated Wires 16 Awg high temperature Wire High Temp Resistant
Fluoroplastic PTFE Insulated Wires 16 Awg high temperature Wire High Temp Resistant
Fluoroplastic PTFE Insulated Wires 16 Awg high temperature Wire High Temp Resistant
Fluoroplastic PTFE Insulated Wires 16 Awg high temperature Wire High Temp Resistant
Specifications
Brand Name :
SANCO
Model Number :
AFR-250
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray / Packing in roll with carton box
Application :
For PTC thermistors, Electric machinery
Conductor Materials :
Silver Plated, Nickel Plated or Bare Copper
Insulation :
PTFE
Features :
Heat Resistance
Working Temperature :
-60℃ ~+250℃
Gauge :
10AWG~32AWG
Colors :
Orange, Red, Yellow, Gray, Blue, Purple, White, Black...
Rated voltage :
AC 220V Or 600V
Conductor Type :
Stranded
Core Number :
Single Core
Description

Silver Plated Copper PTFE Fluoroplastic Insulation High Temp Resistant Wire Cable

Application:

Used for Oil equipment, Electric machinery, Automotive cables, Outdoor lighting, PTC thermistors, Electric components etc.

Features:

1. High temperature resistance
2. Cold resistance
3. Good softness
4. Aging resistance
5. Anti-interference
6. Easy insulation stripping
7. Small diameter
8. Especially suitable for frequent bending occasions

Properties of PTFE Wire:

1. Rated voltage: AC 220V Or 600V
2. Working temperature: -60℃ ~ 250℃, Short-term temperature can be 350 ° C
3. Conductor Material: Silver Plated Copper, Nickel Plated Copper or Bare Copper

4. Conductor Type: Stranded or Solid
5. Insulated: PTFE
6. Available Colors: Orange, Red, Yellow, White, Blue, Brown, Black, Gray, Green, Purple...

7. Core Number: Single Core or Multicores

Conductor


Insulated

thickness
mm

 Wire OD
mm		 Resistance of insualtion
Nominal section area
mm2		 single wire x dia. Conductor Dia.
mm		 110V 250V 600V AFR-250 type AFRP-250 type MΩ·km
mm 110V 250V 600V 110V 250V 600V
0.013 7×0.05 0.15 0.1 0.15 0.25 0.38 0.49 0.71 0.7 0.82 1.02 5×103
0.035 7×0.08 0.24 0.1 0.15 0.25 0.47 0.58 0.81 0.85 0.91 1.14
0.06 7×0.10 0.3 0.1 0.15 0.25 0.55 0.65 0.87 0.9 0.97 1.2
0.08 7×0.12 0.36 0.1 0.15 0.25 0.6 0.7 0.93 1 1.03 1.26
19×0.07
0.1 7×0.14 0.42 0.1 0.15 0.25 0.7 0.83 1 1.05 1.15 1.3
19×0.08
0.14 7×0.16 0.5 0.1 0.15 0.25 0.73 0.85 1.05 1.05 1.18 1.45
19×0.10
0.2 7×0.20 0.6 0.15 0.3 0.85 0.97 1.3 1.3 1.4 1.7
19×0.12
0.35 7×0.25 0.8 0.15 0.3 1.2 1.5 1.6 1.9
19×0.16
0.5 7×0.30 0.9 0.15 0.3 1.3 1.6 1.7 2
19×0.18
0.8 7×0.37 1.1 0.2 0.3 1.65 1.85 2.05 2.3
19×0.23
1 19×0.26 1.3 0.2 0.3 1.88 2 2.25 2.45
1.2 19×0.28 1.4 0.2 0.3 1.95 2.15 2.38 2.55
1.5 19×0.32 1.6 0.2 0.3 2.15 2.35 2.63 2.83
2 19×0.37 1.85 0.2 0.3 2.4 2.6 2.97 3.08
2.5 19×0.14 2.34 0.2 0.35 2.95 3.2 3.43
49×0.26
3 49×0.28 2.52 0.2 0.35 3.1 3.37 3.5
4 49×0.32 2.88 0.35 3.52 4.12
6 49×0.39 3.51 0.35 4.15 4.75

Noted: Specification and core no. are not limited to above regulation, they could be customized.
