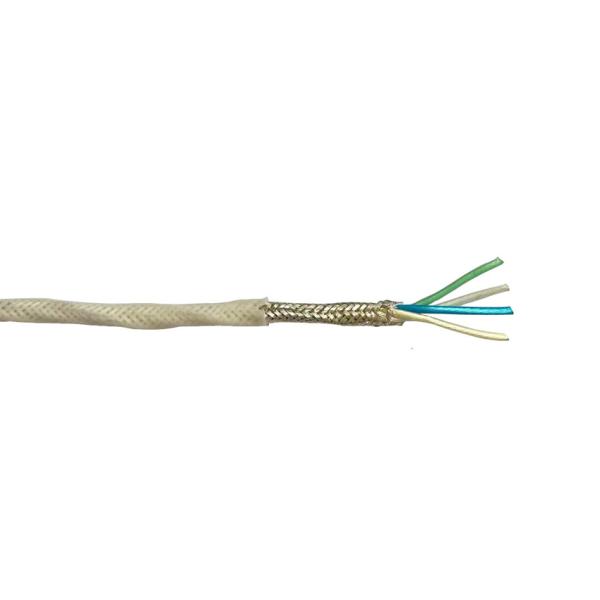

high temperature Shielded PTFE Insulated Wires Stranded 4 Core For Electrical Connection
high temperature Shielded PTFE Insulated Wires Stranded 4 Core For Electrical Connection
high temperature Shielded PTFE Insulated Wires Stranded 4 Core For Electrical Connection
high temperature Shielded PTFE Insulated Wires Stranded 4 Core For Electrical Connection
Specifications
Brand Name :
SANCO
Model Number :
AFR-250
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray / Packing in roll with carton box
Application :
Electrical connection
Insulation :
PFA PTFE ETFE FEP insulation
Condouctor :
bare copper stranded, silver plated copper
Features :
High Temperature resistant
Max. temperature :
-60~+250degree
Wire gauge :
32awg~10awg,stranded
Core number :
single core,2 core,3 core ,4core...
Rated voltage :
125V, 300V, 600V
Shelf life :
1 year
Service :
OEM ODM Accept
Customized product :
Available as per detailed technical data
Description

4 Core high temperature Shielded Wire,PFA PTFE ETFE FEP High Temp Cable

Application:

1. In the electronic industry, can be used for temperature compensation wire, low temperature resistance wire, high temperature heating wire, aging resistance wire and flame retardant wire;
2. In household appliance industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice fort, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.

Features:

It has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc. Excellent electrical insulation performance, high voltage resistance, low loss at high frequency, no moisture absorption, large insulation resistance; It has excellent fire resistance, aging resistance and long service life.

Property:

1. Conductor bare copper stranded, silver plated copper stranded or nickel plated copper stranded
2. Insulation: PTFE film (PTFE film wrapped insulation)
3. Silver or tinned copper wire braided

4. Rated voltage: 125V, 300V, 600V

5. Working temperature: -60 ~ 250℃, short-term temperature 350℃
6. Color: red/yellow/blue/white/black/gray/brown/purple/green etc.
7. Test voltage: 1000V, 1500V, 2500V

high temperature Shielded PTFE Insulated Wires Stranded 4 Core For Electrical Connection

Wire gauge Cross-section Conductor Max.OD of wire
mm		 Reference weight
kg/km
AF AFP AFPF AF AFP AFPF
AF-1 AFP-1 AFRPF-200 AF-1 AFP-1 AFRPF-200
AFR-200 AFRP-200 AFRPF-250 AFR-200 AFRP-200 AFRPF-250
AWG mm2 mm AFR-250 AFRP-250 AFR-250 AFRP-250
36AWG 0.013 7/0.05 0.57 0.97 1.45 0.44 1.89 2.93
32AWG 0.035 7/0.08 0.67 1.15 1.55 0.73 2.39 3.52
- 0.05 10/0.08 0.72 1.28 1.68 0.91 2.67 3.85
- 0.07 14/0.08 0.75 1.3 1.7 1.16 3.05 4.29
- 0.1 21/0.08 0.85 1.4 1.8 1.57 3.63 4.95
26AWG 0.12 24/0.08 0.85 1.5 1.9 1.66 4.18 5.45
- 0.14/0.15 30/0.08 0.9 1.55 1.95 2.07 4.32 5.72
- 0.2 42/0.08 1 1.65 2 2.72 5.17 6.67
- 0.25 56/0.08 1.1 1.7 2.05 3.47 6.13 7.73
22AWG 0.3 62/0.08 1.18 1.75 2.25 4.2 7.55 9.3
- 0.35 75/0.08 1.2 1.8 2.35 4.7 7.74 10.2
20AWG 0.5 63/0.1 1.45 2.05 2.4 5.36 8.54 11
- 0.75/0.80 91/0.1 1.69 2.39 / 8.19 11.9 /
18AWG 1 56/0.15 1.95 2.5 / 10.9 15.2 /

Noted:Specification and core no. are not limited to above regulation,they could be customized.
