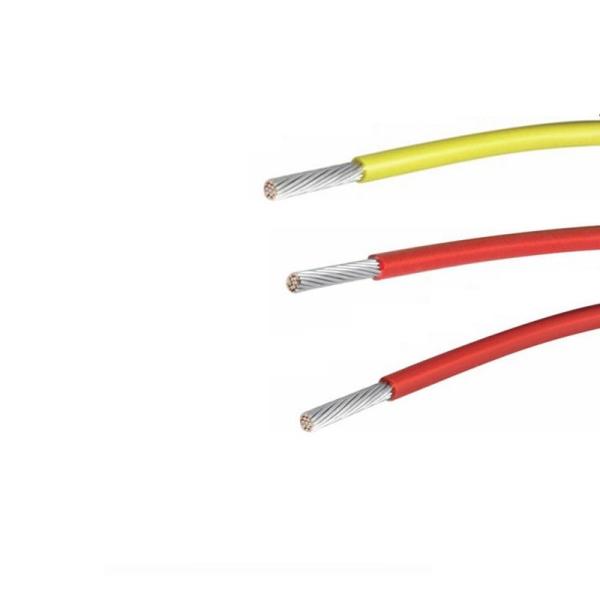

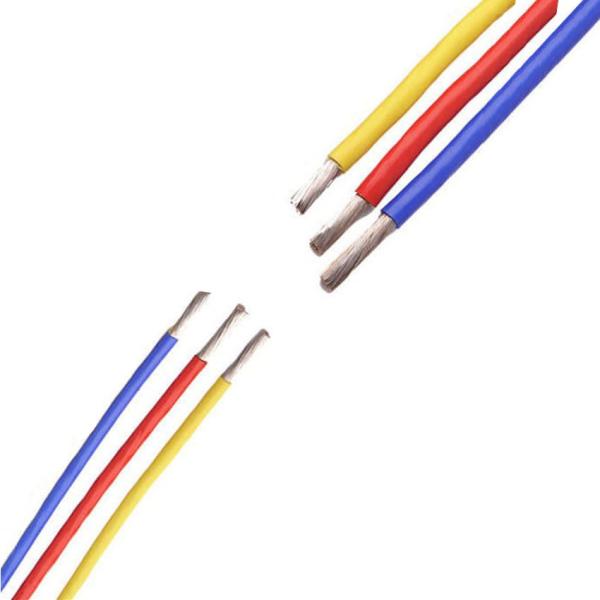

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
Specifications
Brand Name :
SANCO
Model Number :
FF40-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray or Packing in roll with carton box
Keywords :
Tefzel Wire
Features :
Heat Resist
Working temperature :
-65~+150℃
Conductor :
Tin Plated
Color :
10 Basic Colors
Wire gauge :
12 14 16 18 20 22 Gauge etc.
Rated Voltage :
AC 600V
Free sample :
1~3 meter
Customized wire :
Available as per sample or technical data
After-sales :
Lifelong maintenance
Description

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

About Tefzel Wire:

Tefzel wire, made from ethylene-tetrafluoroethylene (ETFE), is known for its excellent chemical resistance, high-temperature tolerance, and electrical insulation properties

Tefzel wire offers excellent resistance to chemicals, high temperatures, and abrasion. It is also known for its low coefficient of friction, high dielectric strength, and good electrical properties.

Application: Aerospace,Automotive: ,Industrial Equipment:,Medical Devices,Telecommunications,Robotics,Marine Applications,Renewable Energy etc.

Properties

Insulation Tefzel (ETFE) insulation
Conductor Tin plated (Solid or Stranded)
Operating temperature -65℃~+150℃
Rated voltage AC600V or below
Insulation resistance(20 ℃) not less than 100 m Ω. Km
Voltage test (AC) insulation wire 2200V/1min, shielding wire 1500V/30s no breakdown
Color Red, yellow, blue, white, black, transparent, brown, green, yellow, green

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

Wire gauge Section area
(mm2)		 Conductor construction
piece/diameter
(mm)		 Reference OD
(mm)

Max. Conductor

resistance at 20℃
(Ω/Km)

 Reference weight
kg/km
FF40-1 FF40P11-1 FF40-1 FF40P11-1
26awg 0.14mm2 19/0.1 1.02 1.52 136 2.66 6.64
24awg 0.2mm2 19/0.12 1.14 1.64 90.4 3.82 8.17
22awg 0.4/0.3mm2 19/0.16 1.32 1.85 53.1 5.48 10.4
20awg 0.6/0.5mm2 19/0.2 1.52 2.02 32.4 7.98 13.5
- 0.75mm2 19/0.23 1.7 2.2 24.6 9.99 16.1
18awg 1mm2 19/0.26 1.8 2.3 20.4 11.7 18.1
16awg 1.2mm2 19/0.28 2.01 2.51 16.6 14.8 21.8
- 1.5mm2 19/0.32 2.25 2.75 12.7 18.2 25.9
14awg 2mm2 19/0.36 2.36 2.86 10 22.2 30.3
- 2.5mm2 37/0.37 2.78 3.31 7.43 30.4 39.9
12awg 3mm2 37/0.32 2.9 3.43 6.63 33.6 43.4
- 4mm2 37/0.37 3.38 3.91 4.88 45.4 56.7
10awg 5mm2 37/0.4 3.53 4.06 4.13 52.2 64

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

Company Profile-Your Expert in High-Performance Specialty Cables

1. With 22 years of industry expertise,Shenzhou Special Cable specializes in manufacturing hightemperature wires (PTFE/FEP/PFA/ETFE Wire) and ultra-flexible cables (TPE/TPU/PUR/TPV cable).

2. We offer end-to-end customization from material selection to mass production, with products featuring an operating range of -100℃ to 500℃ and over 20 million bend cycles, ideal for robotics, medical devices, automotive wiring and industrial automation.

3. We serve global clients with fast response (24-hour solution design), flexible production quantity (min. 50m orders)

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

Rigorous Testing, Guaranteed Quality

1. Shenzhou Special Cable implement a comprehensive quality control system with over 20 rigorous tests including high-temperature resistance, bending cycles, and insulation resistance etc.
2. Equipped with imported testing instruments, we guarantee products meet international standards
3. 500+ sqm professional testing laboratory
4. Professional QC team

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

Global Exhibitions, Professional Recognition

We have consistently participated in global exhibitions including Middle East Electricity Dubai, China-ASEAN Expo, and India Power-Gen etc., showcasing our high-temperature and ultra-flexible cable solutions.

These engagements help us refine products and services to meet diverse international market demands.

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

Expert Team, Professional Service

We boast industry-leading interdisciplinary teams: production with 15-year experienced technicians, R&D led by polymer experts, multilingual sales with 24/7 response, and ISO-certified management.

Our coordinated approach delivers one-stop solutions from development to delivery.

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

Secure Packaging, Global Reach

1. We use moisture-proof and fumigation industrial packaging to ensure safe cable delivery.

2. Customized options like carton box,wooden cases & pallets available.

3. Offering sea/air/express shipping with over 99% on-time delivery worldwide.

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge

Free Samples | Technical Support | 24 hours Online Consultation
