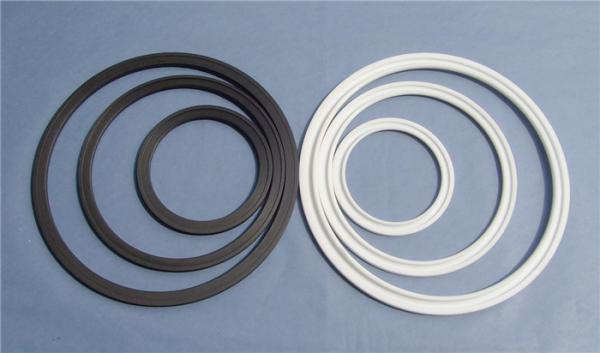

Low Friction PTFE Machined Parts , PTFE O Ring High Temperature Resistance
Low Friction PTFE Machined Parts , PTFE O Ring High Temperature Resistance
Low Friction PTFE Machined Parts , PTFE O Ring High Temperature Resistance
Low Friction PTFE Machined Parts , PTFE O Ring High Temperature Resistance
Specifications
Name :
PTFE Machined Parts
Material :
PTFE
Feature :
None Toxic
Color :
White, Colorful
Application :
Mechanical, Electronics, Aerospace, Aviation, etc
ODM OEM :
Available
Place of Origin :
China
Brand Name :
Forog
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
2-3days for sample , 3-20days for mass production
Payment Terms :
L/C, T/T
Model Number :
ODM OEM
Packaging Details :
Export standard wooden case
Supply Ability :
50 tons per month
Description

Description

The excellent performance of PTFE makes it widely used in chemical, mechanical, electronic, pharmaceutical, environmental protection, aerospace, aviation and other fields. According to the use requirements, pure PTFE or various filled PTFE blanks are selected and processed by CNC machine tools to make various products that meet customer needs.

In addition to polytetrafluoroethylene, there are other fluorine materials with excellent properties to choose from, including PCTFE, PVDF, ETFE.

PTFE machined parts available

  • Ball, Valve seats & V packings
  • Back up rings & O rings
  • Gaskets & Seals
  • Compressor rings & Piston rings
  • Flexible bellows
  • To customer drawings

Our machined parts range comprise of materials in both PTFE (pure PTFE and compounded PTFE) and other fluorine materials (PCTFE, PVDF & ETFE).

PTFE PVDF PCTFE ETFE
Properties Unit
Maximum continuous service temperature ℃ 260 150 +170 to +180 150
Becomes brittle below ℃ -200 -60 -40 -180
Density g/cm3 2.13 - 2.23 1.76 - 1.78 2.07 - 2.12 1.67 - 1.75
Tensile strength N/mm2 20 - 40 40 - 60 30 - 40 35 - 45
Elongation at break % 140 - 400 25 - 400 175 200 - 500
Young modulus (elasticity) N/mm2 350 - 750 1000 - 3000 1300 1000
Shore hardness D - 55 - 60 77 - 82 73 - 79 67 - 73
Thermal expansion coefficient(20 - 100℃) 10-5.K-1 16 10 5 13
Thermal conductivity at 20℃ W / (mK) 0.24 0.17 0.26 0.24
Oxygen index Vol.-%O2 95 44 - 48 94 32 - 37
Specific resistance W. cm 10 18 10 14 10 15 10 16
Dielectric strength kV/mm 55 - - -
Surface resistance W 10 17 - - -
Water absorption (comparison 24h) % 0 0.03 0 0.02
Expanding agent - none in the standard temperature range ketones, esters at high temperatures some chlorinated hydrocarbons some halogenated solvents at high temperatures
Chemically attacked by - molten or dissolved NA metal, F, FCl3 at high temperatures fuming HNO3 and H2SO4, amines, pyridines similar to PTFE fuming H2SO4 and similar

About us


We only use quality ingredients! Only high-quality raw materials can first ensure that our products exert their maximum performance in performance, so that our products are not bad under the requirements of corrosion resistance, pressure resistance, temperature resistance, wear resistance, sealing and other conditions of use. which performed.

Our products include fluoroplastic polymer products and ultra-high molecular weight polyethylene products. The main product materials include polytetrafluoroethylene (PTFE), FEP, PFA, PVDF, PCTFE and UHMW-PE. All kinds of products include plates, rods, tubes, membranes, gaskets, gaskets, ball valves, ball seats, and special-shaped parts. We can also design and produce various filler products and precision processed parts according to customer requirements.

Products are widely used in petrochemical, food packaging, pharmaceutical equipment, light industrial food machinery, hydraulic machinery, metallurgical mines, railway bridges, environmental protection engineering and other fields.

Jiaxing Forog Polymer Material Co., Ltd. adhering to the core value concept of "quality first, reputation first, management first, service first", meeting the needs of customers as its purpose, and is willing to provide you with responsible products and services!
