Non Abrasion Extruded Flexible PTFE Tubing Smooth Surface High Performance
Non Abrasion Extruded Flexible PTFE Tubing Smooth Surface High Performance
Non Abrasion Extruded Flexible PTFE Tubing Smooth Surface High Performance
Non Abrasion Extruded Flexible PTFE Tubing Smooth Surface High Performance
Specifications
Place of Origin :
China
Brand Name :
Forog
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
2-3days for sample , 3-20days for mass production
Payment Terms :
L/C, T/T
Model Number :
ODM OEM
Packaging Details :
Export standard wooden case
Supply Ability :
50 tons per month
Name :
PTFE Extruded Tubing
Material :
PTFE
Feature :
High Performance
Color :
White, Colorful
Application :
Mechanical, Electronics, Aerospace, Aviation, etc
ODM OEM :
Available
Description


Features

Non-conductive: Good insulation, assuring a safe system
Smooth surface: Small friction coefficient to ensure the cables go through smoothly
Fire resistance: Self-extinguishing, do not support combustion
Corrosion Resistance: Resistant to acids, bases and salts, assuring a lower maintenance cost and a longer performance life
Impact strength: Resistant to compression and impact, suitable to be buried in concrete

Description

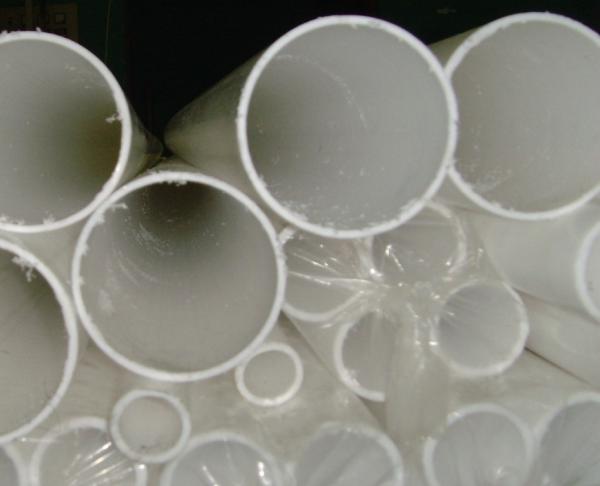

PTFE extruded tubes include ram extruded tubes and paste extruded tubes. Ram extruded tubes are manufactured from PTFE suspension resin while paste extruded products from dispersion resin.

Besides virgin PTFE, compounded PTFE are suggested to be used according to different working conditions. For example, fiberglass, carbon fiber, graphite, etc. According to customers’ needs, FOROG can choose the most suitable material for you.

Specifications

RAM EXTRUDED TUBES

OD(mm)

Tolerance (mm)

Wall thickness(mm)

Tolerance (mm)

Length (mm)

Tolerance (mm)
14 +1.5/-0 3

2≤T≤3, ±0.2

3<T≤6, ±0.3

MAX 6000

+20.0/-0
20 2
20 3
24 3
25 2
28 2
30 2
35 2
35 3
40 +2.0/-0 3
45 3
51 3
51 4
51 5
65 3
65 5
75.5 +3.0/-0 3
82 4
82 6
90 3
90 5
102 +4.0/-0 3
102 4
102 5
126 4.5
158 5
210 5
260 +5.0/-0 5
310 5

Only some regular sizes are listed above. Different sizes can be supplied. Please consult us.

PASTE EXTRUDED TUBES

OD×ID (mm) Tolerance (mm) OD×ID (mm) Tolerance (mm)
0.8×0.4 ±0.08 12×10 ±0.2
1.0×0.5 ±0.08 14×12 ±0.2
1.6x0.8 ±0.08 16×14 ±0.2
2×1 ±0.08 18×16 ±0.3
4×2 ±0.1 20×18 ±0.3
6×4 ±0.1 22×20 ±0.3
8×6 ±0.1 24×21 ±0.3
10×8 ±0.1 28x25 ±0.3

Only some regular sizes are listed above. Different sizes can be supplied. Please consult us.

About us

We only use quality ingredients! Only high-quality raw materials can first ensure that our products exert their maximum performance in performance, so that our products are not bad under the requirements of corrosion resistance, pressure resistance, temperature resistance, wear resistance, sealing and other conditions of use. which performed.

Our products include fluoroplastic polymer products and ultra-high molecular weight polyethylene products. The main product materials include polytetrafluoroethylene (PTFE), FEP, PFA, PVDF, PCTFE and UHMW-PE. All kinds of products include plates, rods, tubes, membranes, gaskets, gaskets, ball valves, ball seats, and special-shaped parts. We can also design and produce various filler products and precision processed parts according to customer requirements.

Products are widely used in petrochemical, food packaging, pharmaceutical equipment, light industrial food machinery, hydraulic machinery, metallurgical mines, railway bridges, environmental protection engineering and other fields.

Jiaxing Forog Polymer Material Co., Ltd. adhering to the core value concept of "quality first, reputation first, management first, service first", meeting the needs of customers as its purpose, and is willing to provide you with responsible products and services!
