Industrial Wire Coating Line 4KW-7.5KW PTFE Cable Extruder Machine
Industrial Wire Coating Line 4KW-7.5KW PTFE Cable Extruder Machine
Specifications
Place of Origin :
China
Brand Name :
SUKO
MOQ :
1 UNIT
Price :
Negotiation
Packaging Details :
Plywood pallet, film etc.
Delivery Time :
6-8 weeks
Payment Terms :
T/T
Supply Ability :
Customizing
Name :
Wire Coating Line
Machine Style :
35, 45, 60, 80,90,100,120
Main Machine Power :
4KW-7.5KW
Wire Spec. :
Dia 0.8-18mm(
Volytage/HP/HZ :
380V 50HZ 3P
Description

Application

This equipment is suitable for single-layer or double -layer extrusion production of fluoroplastic(PTFE)high temperature wires. PTFE wires are widely used in defense and military industry, aerospace, electronic and electrical, semiconductor, construciton, mediacl, automotive, electromechanical,metallurgy, petrochemical and other industrial fileds.

Industrial Wire Coating Line 4KW-7.5KW PTFE Cable Extruder Machine

Industrial Wire Coating Line 4KW-7.5KW PTFE Cable Extruder Machine

Industrial Wire Coating Line 4KW-7.5KW PTFE Cable Extruder Machine

SPECIFICATIONS

Machine model Pay-off line type Pay-off bobbinsize Screw diameter Main unit power Wire spec. Cooling device Accumulator capacity Capstan power Wire speed Take-up line type Receving reel Take-up line power
ZY-STJ-35 Double axes PN400-630 ∅35 4KW ∅0.8-2.0 Single layer 30 1.5KW 20m Axis packing PN400-630 1.5KW
ZY-STJ-45 PN400-630 ∅45 4KW ∅1.5-3.0 1.5KW 20m PN400-630 1.5KW
ZY-STJ-60 PN630-800 ∅60 4KW ∅2.5-5.0 2.2KW 15m PN500-630 2.2KW
ZY-STJ-80 PN400-630 ∅80 5.5KW ∅4.0-6 2.2KW 12m PN500-800 3.7KW
ZY-STJ-90 PN630-800 ∅90 5.5KW ∅5.0-8 3.7KW 8m PN630-1000 5.5KW
ZY-STJ-100 PN400-630 ∅100 7.5KW ∅8.0-12 5.5KW 8m PN800-1250 5.5KW
ZY-STJ-120 PN400-630 ∅120 7.5KW ∅10-18 5.5KW 5m PN800-1250 5.5KW

High-voltage cables: PTFE cables can withstand high voltages, making them suitable for power transmission and distribution.
Signal cables: PTFE cables provide excellent signal transmission characteristics, making them ideal for telecommunications and data applications.
Control cables: PTFE cables are used in control systems due to their resistance to chemicals and extreme temperatures.
Automotive wiring: PTFE cables are used in automotive applications where high temperatures and harsh conditions are encountered.

Chemical processing: PTFE cables are resistant to a wide range of chemicals, making them suitable for use in chemical plants and laboratories.
Aerospace: PTFE cables are used in aerospace applications due to their lightweight, flexibility, and resistance to extreme temperatures.
Medical: PTFE cables are used in medical devices and equipment due to their biocompatibility and resistance to sterilization processes.
Food processing: PTFE cables are used in food processing equipment due to their non-stick properties and resistance to corrosion.

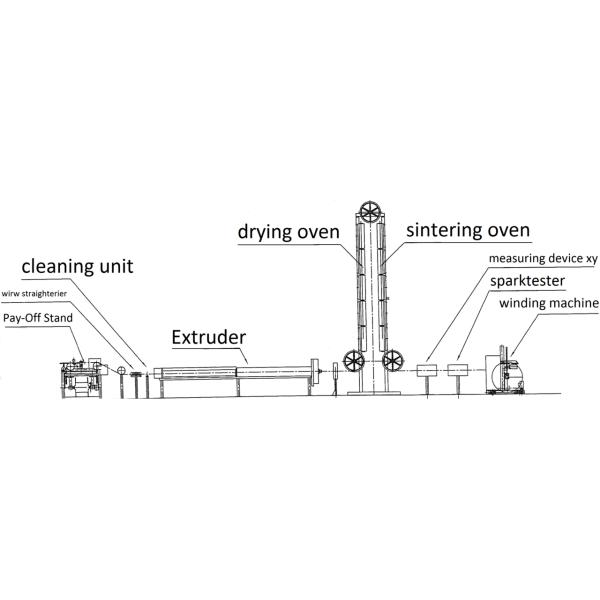

Teflon high temperature wire extruder production line machine consists of several main components:

Pay-off frame: used to place the reel or reel of Teflon material so that the material can be introduced into the extrusion host.

Extrusion host: the main equipment, which heats and melts the Teflon material through heating and screw extrusion, and extrudes the molten material into a cable with the required shape and size.

Pulling machine: used to pull the extruded Teflon cable to keep it at a stable speed and tension, and to help cool it down.

Wire Storage Rack: Used to collect and reel extruded Teflon cables.

Spark testing machine: used to detect whether there are defects or damage on the surface of the extruded cable.

Meter Counter: Used to measure and record the length of extruded Teflon cables.

Coiling machine: used to wind the extruded Teflon cable into a drum or coil for subsequent use.

Electric control box: an electrical control system that controls the work of each component, and is used to adjust parameters such as extrusion speed and temperature.

These components work together to enable the extrusion line to efficiently and stably produce high-quality Teflon high-temperature cables.
