PTFE Polymer Powder Mixing Machine With Fiberglass Graphite Carbon Bronze
PTFE Polymer Powder Mixing Machine With Fiberglass Graphite Carbon Bronze
PTFE Polymer Powder Mixing Machine With Fiberglass Graphite Carbon Bronze
PTFE Polymer Powder Mixing Machine With Fiberglass Graphite Carbon Bronze
Specifications
Brand Name :
SUKO
Model Number :
H13232
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Customizing
Delivery Time :
6-8 weeks
Packaging Details :
Plywood pallet, film etc.
Name :
PTFE Six barrels mixing machine
Motor Power :
30
Discharge Method :
Manual
Application :
Pharmaceutical, Chemical, Food, Cosmetics
Condition :
New
Rotation Speed :
1-60rev / min
Cetificate :
CE ISO
Capacity :
15-650kg
Customized Design :
Accept
Function :
Mixing Powder and guanule
Key Selling Points :
Automatic
Auxiliary :
spraying, heating and cooling
Barrel Volume :
500 L customize
Description

Working Principle:

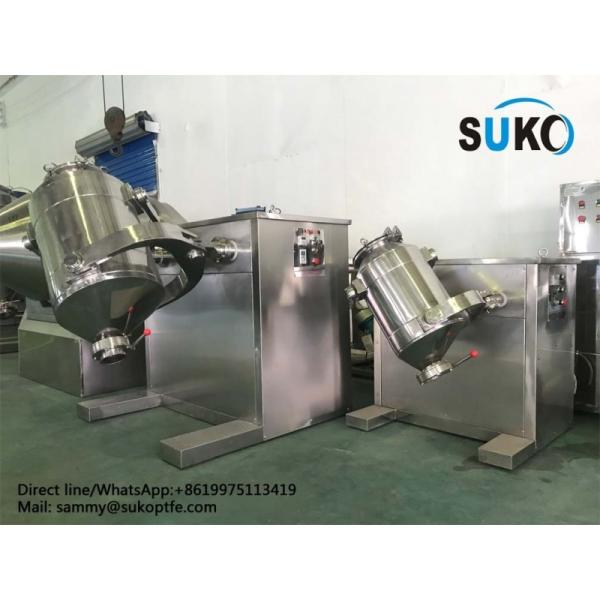

The mixing barrel is suspended at the end of the main and driven axles through two Y-type universal joints. The two universal joints intersect and perpendicular to each other in space. When the drive shaft is dragged and rotated, the cardan envoy barrel moves repeatedly in space, such as translation, rotation and roll. Material in the cylinder is followed by three-dimensional compound movement in the axial, radial and circumferential directions. Many kinds of materials in the cylinder flow, diffuse and dope with each other, and evenly show a uniform state.

Special design for PTFE polymer powder mix with fiberglass, graphite, carbon, bronze etc. without temperature rising.

Part 1 : Equipment Overview

Equipment name: V-type mixer Equipment

model: V-100

Equipment number: one set

Equipment usage: For the mixture of powder

Basic requirements:

1, Each 40-50L material / batch mixing, and do not bring any impurities in the process of mixing.

2, The device barrel material is made of SUS304 stainless steel, the inside and outside of the barrel is polished, no mixing dead angle and don’t stick the material.

3, The equipment design is reasonable and advanced; with smooth operation, good reliability and simple operation; The noise is less than 65db.

Part 2: equipment performance

Equipment technical parameters:

1. Mixing barrel total volume of 100L, Material handling capacity: 40-50L

2, Equipment main motor power 1.5 kw.

3, Mixing time Digital setting 0-99 minutes, timing shutdown.

4, power supply: 380V / 220V / 50Hz.

I. Working Principle: The mixing barrel is suspended at the end of the main and driven axles throughtwoY-type universal joints. The two universal joints intersect and perpendicular toeachotherin space. When the drive shaft is dragged and rotated, the cardan envoy barrel movesrepeatedly in space, such as translation, rotation and roll. Material in thecylinderisfollowed by three-dimensional compound movement in the axial, radial andcircumferential directions. Many kinds of materials in the cylinder flow, diffuseanddopewith each other, and evenly show a uniform state. Special design for PTFE polymer powder mix with fiberglass, graphite, carbon, bronzeetc. without temperature rising. II. Performance description: (1) The machine is composed of a base, a drive system, a universal wall-rockingmechanism, a unique shape of mixing barrel and an electrical control system. (2) Reasonable design, beautiful appearance, fine processing, stablemovement,stepless adjustable; large loading coefficient, high mixing uniformity, easy discharge,easy cleaning, in line with GMP specifications.
