GCS1 Directly factory sale 3 phase low voltage switchboard
- Good practicability
- Flexible design
- High security
- High reliability

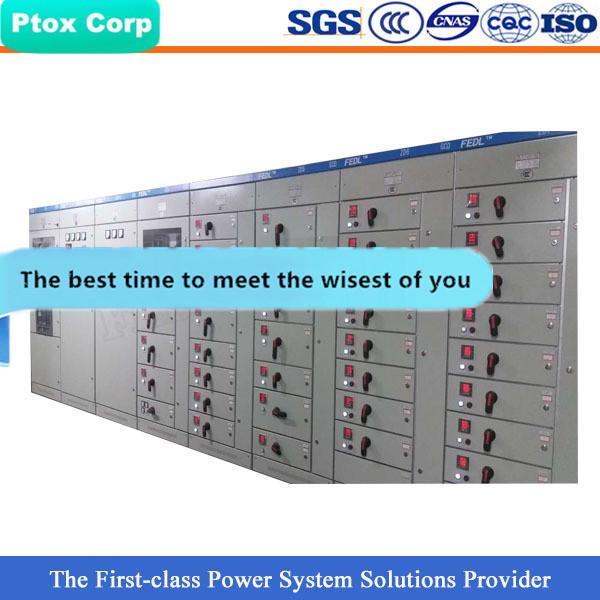

GCS1 fixed-separated low voltage main marine switchboard is a domestic advanced product, based on the withdrawable switchgear and self-developed according to the user's powder distribution special requirement and project practicability.
GCS1 fixed-separated low voltage main marine switchboard is widely applied to power distribution system and powder control center of power plants, petroleum, chemical, metallurgical ,textile and high-rise buildings. It is applicable to three-phase four-wire and three-phase five-wire power systems with three-phase AC 50, rated voltage 380V and rated current 6,300A and below as power acceptation and distribution. The device can be divided into power distribution center (PC Cabinet) and motor control center (MCC cabinet) by its application.
- Ambient air temperature : -5°C ~ +40°C;
- Daily average temperature(Within 24h): ≤+35℃
- Relative humidity: ≤50% at the maximum temperature of +40℃ and may be higher at lower temperature, for example, 90% at +20℃.
- Altitude:≤2,000m;
- Installation inclination:≤ 5°;
- Installation places: Indoor; without fire, explosion risk, serious pollution, rain immersion, violent vibration,chemical corrosion and conductive dust.
If the switchgear will be used in conditions that exceed the normal environmental conditions, users should consult with the manufacturer.
No. | Item(Unit) | Data |
1 | Rated Working Voltage(V) | AC380 |
2 | Rated Insulation Voltage(V) | AC660V |
3 | Rated frequency(Hz) | 50 |
4 | Main Bus Rated Current (A) | ≤6300 |
5 | Distribution Bus Rated Current(A) | ≤2200 |
6 | Main Bus Rated Short-time Withstand Current (kA) | ≤100 |
7 | Distribution Bus Rated Short-time Withstand Current (kA) | 15 |
8 | Rated Impulse Withstand Voltage(kV) | 8 |
9 | Standard | GB7251.12 |
10 | Protection Degree | IP30 |
