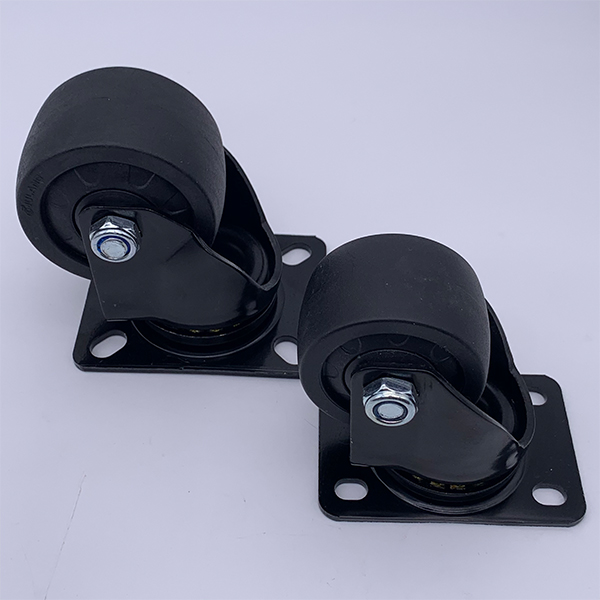

Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch
Specifications
Place of Origin :
Suzhou, China (Mainland)
Brand Name :
OEM Acceptable
Supply Ability :
800000 Piece/Pieces per Month
Packaging Details :
Inner Bag, Carton, Pallet
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Model Number :
1029-75
Certification :
ISO9001
Product Name :
3 inch Black Nylon Wheel Low Profile Plate Swivel Caster
Load :
500kg
Wheel Diameter :
75mm
Wheel Width :
45mm
Top Plate :
105x82mm
Bolt Pattern :
80x60/73x53mm
Hole Size :
10mm
Height :
108mm
Mounting Type :
Plate Swivel
Bearing Type :
Double Ball Bearing
Tread Material :
PA / Nylon
Description

Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch

1. Description

High Quality: The wheels made of the popular Non-Marking Hi-temp Nylon type, very quiet running, absorbs shock and vibrations. Double ball bearing bring a max loading capacity and safety.

Better able to withstand temperature extremes and variations: As a natural product, rubber is likely to degrade faster when subjected to extremes of either heat or cold, and is more likely to be affected by humidity. Nylon is 100% synthetic, so it copes much better in a wider range of conditions.

Rotate 360 degrees: The wheel brake locks both the wheel and the swivel simultaneously, effective to stop and prevent the device from moving and hurting others.

GREAT FOR: Mounting on the carpenter workbench, equipment cabinets, vending Machine ,bank operating devices and other heavy duty items

2. Specification

Product Name 3 inch Black Nylon Wheel Low Profile Plate Swivel Caster
Wheel Diameter 75
Wheel Width (mm) 45
Load (kg) 500
Height (mm) 108
Swivel Radius 27.5
Brake Swivel Radius 65
Plate Size (mm) 105x82
Hole Spacing (mm) 80x60/73x53
Hole Size (mm) 10
Tread Material Nylon
Code 1029-75


Black PA Nylon Caster Wheels 360 Degree Top Plate 3 inch

3. FAQ

Q: Do you provide samples of Black PA Nylon Caster Wheels?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How about your delivery time of Black PA Nylon Caster Wheels?

A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: What is the term of payment for Black PA Nylon Caster Wheels?

A: Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.
