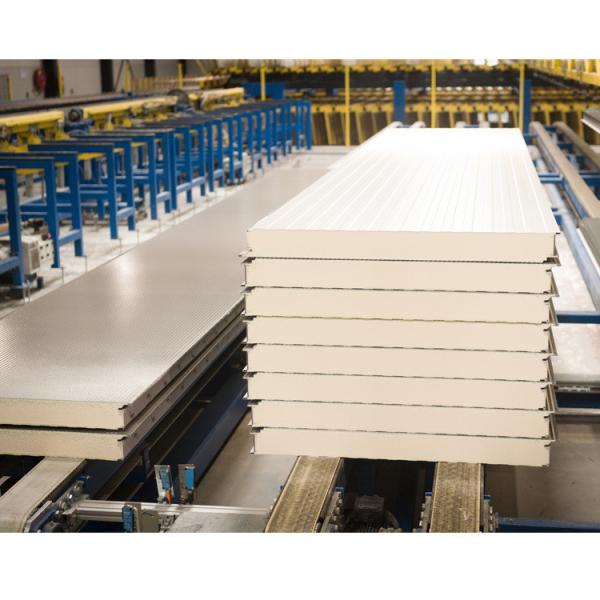

Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation
Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation
Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation
Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation
Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation
Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation
Specifications
Place of Origin :
Henan, China
Brand Name :
ZENGTUO
Supply Ability :
4000 Ton/Tons per Month
MOQ :
200 square meters
Price :
$15.90/square meters 200-499 square meters
Color :
White, Grey, Blue, Red, etc.
Resistance :
Temperature From -40°c to +100°c
Bending Strength :
≥0.3MPa
Surface Material :
Color Steel Sheet, Aluminum Sheet, Stainless Steel Sheet, etc.
Material :
Polyurethane (PU)
Shipment Container :
20ft container , 40HQ
Thiskness :
50-200 mm
Heat Preservation :
≥0.024W/mK
Thickness :
50mm-200mm
Pu Foam Density :
35kg/m³， 40kg/m³
Compressive Strength :
≥0.2MPa
Steel Sheet Thickness :
0.3-0.6mm
Core :
polyurethane foam
Thermal Conductivity :
0.018-0.024W/mK
Fireproof Grade :
B
Description

Product introduction

Polyurethane sandwich board is selected two layers of high-quality color coated steel plate or other precision pressed metal sheet as the surface material, roll molding, in the middle of the injection of flame retardant polyurethane foam liquid, after high pressure foaming curing and other specific process conditions, and the strong adhesion and characteristics of the metal panel composite into a beautiful, flat, tough building board.

Polyurethane sandwich board beautiful appearance, the overall effect is good, it sets bearing, insulation, fire prevention, waterproof in one, and no need for secondary decoration, installation is fast and convenient, construction period is short, comprehensive benefits, has a good cost-effective advantage, is a wide range of uses, great potential of energy-efficient building envelope materials, is also the Ministry of National Construction to promote and promote a new energy-saving plate.

peculiarity

Lightweight: Polyurethane foam has a low density, so the polyurethane sandwich sheet is relatively light, which is conducive to reducing the building's own weight and transportation costs.

Thermal insulation: Polyurethane foam has good thermal insulation properties, which can effectively reduce energy loss and improve the energy efficiency of buildings.

High strength: The panels of polyurethane sandwich sheets are usually made of high-strength materials such as steel or aluminum sheets, which make them have high bending and compression resistance.

Effective width

1000(mm)

Length

According to customer's request, less than 11.8m.

Materials

Polyurethane foam panel,Color steel tile

Structure

Upper and lower layer: Color steel sheet

Middle: Polystyrene foam board

Density

40-45 kg/m³

Conventional color

White, sea blue, red etc.

Life time

30-50 years

Performance

Light weight, heat insulation, water resistant, green and environmental

Usage

Roof, Wall, Ceiling, Partition

Factory display

Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation Polyurethane 50mm Cool Room Sandwich Panels For Easy And Fast Installation
