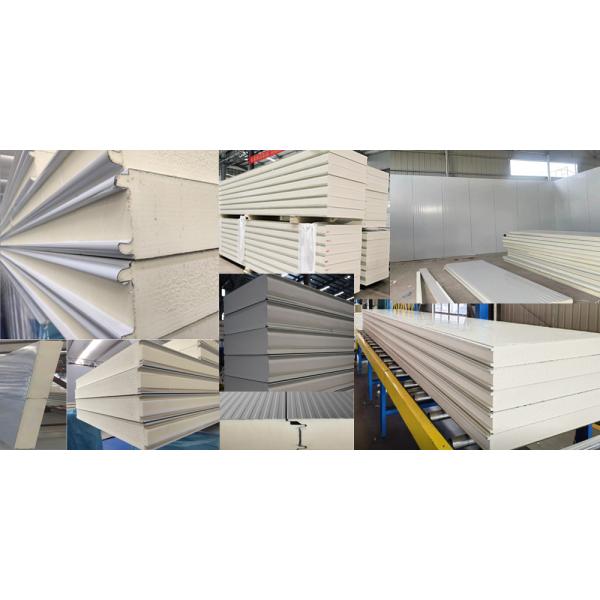

Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Polyurethane PU Sandwich Panel Fireproof 50 - 200mm Thiskness For Cold Room
Specifications
Place of Origin :
Henan, China
Brand Name :
ZENGTUO
Supply Ability :
4000 Ton/Tons per Month
MOQ :
500 square meters
Price :
$15.00/square meters 500-999 square meters
Panel Material :
Metal
Resistance :
Temperature From -40°c to +100°c
Surface Material :
Color Coated Steel Sheet
Color :
any color
Core Material :
Polyurethane Foam
Thiskness :
50-200 mm
Shipment Container :
20ft container , 40HQ
Fireproof Grade :
B1
Density :
35-40kg/m³
Application :
Roof, Wall, Ceiling, Partition
Description

Product introduction

A standard width is 1meters and customizable length
The panel thickness ranges from 50 mm to200mm The facing material thickness is 0.55 mm colorbonded coated steel sheets, including a primer and an Anti-Bacteria Food Grade/Stainless SUS 304 2B coating.
The core comprises FGrade Polyurethane Foam (flame-retardant material with combustible properties). It has a low k-value, indicating good thermal conductivity, and a density of 38 kg – 40 kg per cubic meter (2.50 pounds/cubic feet).
Options of smooth and grooved surfaces, with the grooves spaced every 100 mm, providing high-performing strength

peculiarity

Low thermal conductivity of PU sandwich panels with excellent thermal insulation properties, can greatly reduce the thickness of periphery of the building structure, which effectively increasing the interior area of the building and save energy and costs.

Lightness in weight and Heavy Weight Carier: with respect o weight, pu sandwich panelis versatile.

Simple construction: polyurethane sandwich plate has the characteristics of standardized production and on-site assembly, convenient installation, can improve the construction efficiency.

advantage

Low thermal conductivity polyurethane sandwich plate composite plate has small thermal conductivity, good thermal insulation performance, is the best insulation material.

ECOLOGICAL

100% of the material is recyclable and the panels are friendly to the environment at the production and disposal stages.

Beautiful and economic surface forms are diverse, rich in color, reduce material loss, save construction time and project costs

Sound absorption.

Specifications

Panel effective width

1000mm

Surface sheets

Steel sheets(0.40 ~ 0.70 mm)

Panel thickness

50/75/100/150/200/250 mm

Core material density

38 ~ 42 KG/M³

Regular color

White grey, Sea blue, White sliver grey

Special color

customized

Length limitation

Max 5.9m for 20FT;

Max 11.95m for 40FT.

Main application

Cold room,food factory,cool room,freezer room,etc.
