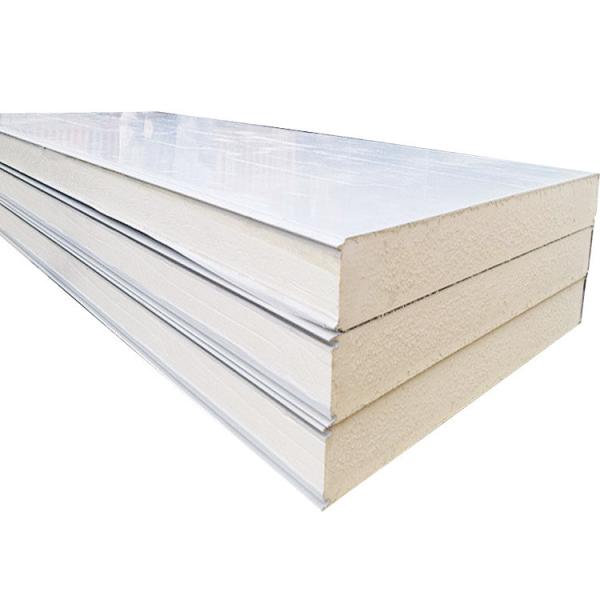

Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core
Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core
Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core
Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core
Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core
Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core
Specifications
Place of Origin :
Henan, China
Brand Name :
ZENGTUO
Supply Ability :
4000 Ton/Tons per Month
MOQ :
200 square meters
Price :
$15.90/square meters 200-499 square meters
After-sale Service :
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
Project Solution Capability :
graphic design, 3D model design, total solution for projects
Surface material :
Galvanized Steel
Core material :
PU Polyurethane
Width :
1000mm
Structure :
PPGI + Polyurethane +PPGI
Fireproof :
B1 Grade
color :
white
MOQ :
200Square Meter
Description

Features

It has the characteristics of fire prevention, thermal insulation, waterproof, sound insulation, etc., which brings high quality appearance effect to the building, and is currently the world's most forward-looking energy-saving thermal insulation, green environmental protection, and ideal building board for artistic buildi.

Polyurethane wall panel adopts dark nail type connection surface without exposed screws, so that the building has a beautiful appearance.
The high flexural bearing capacity of the polyurethane wall panel makes the wall have better mechanical properties and thermal insulation properties, while reducing the need for auxiliary steel structure.

specification

The specifications of our factory's polyurethane sandwich board, the bond strength of polyurethane sandwich board is not less than 0.09MPa, the combustion performance of the sandwich board reaches B1 level, and the bending capacity of the sandwich board is not less than 0.5Kn/m2 when the deflection of the sandwich board is Lo/200 (Lo is the distance between the supports). The effective width of the polyurethane sandwich plate is usually 1000mm, and the length can be customized.

Effective width

1120(mm)

Length

According to customer's request, less than 11.8m.

Materials

Polyurethane foam panel,Color steel tile

Structure

Upper and lower layer: Color steel sheet

Middle: Polystyrene foam board

Density

40-45 kg/m³

Conventional color

White, sea blue, red etc.

Life time

20 years

Performance

Light weight, heat insulation, water resistant, green and environmental

Usage

Roof, Wall, Ceiling, Partition

Polyurethane sandwich panel has good fire resistance

Polyurethane sandwich board non-toxic and tasteless

Wide range of temperature Waterproof, moisture-proof polyurethane sandwich board beautiful appearance, the overall effect is good, it sets load bearing, heat preservation, fire prevention, waterproof in one, and no two decoration

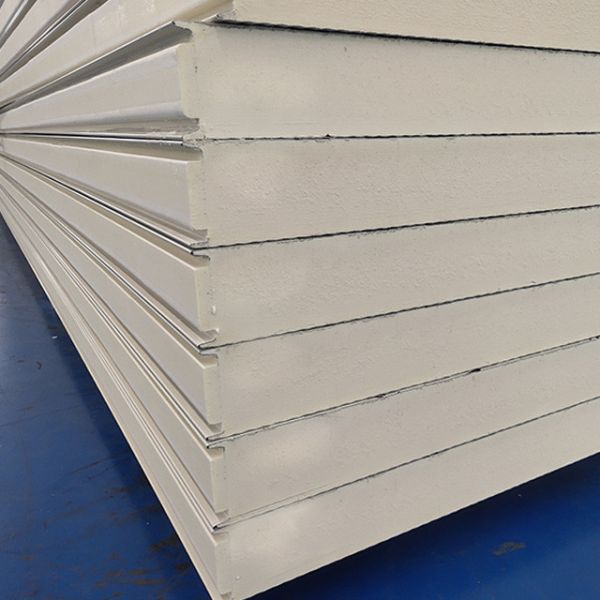

Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core

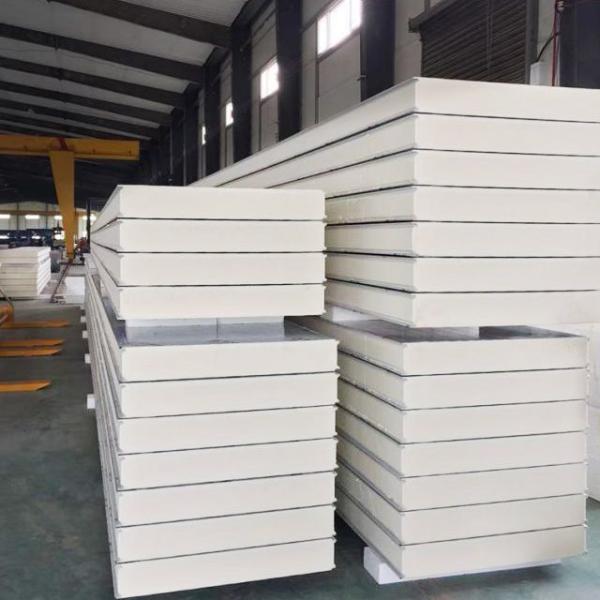

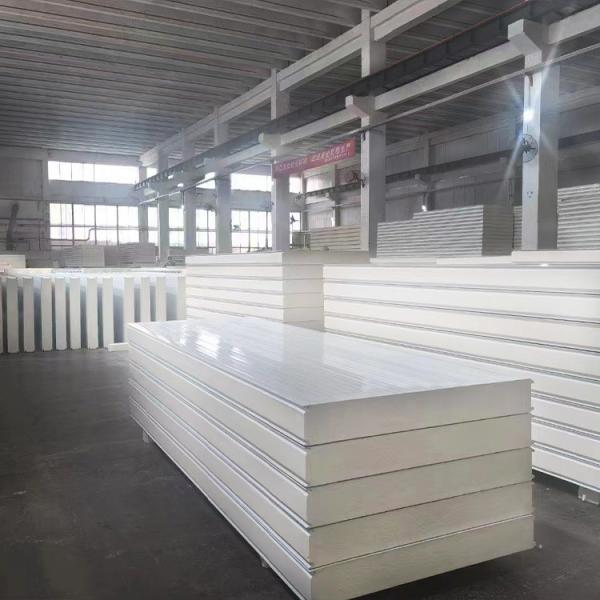

Factory display

Metal Panel Insulated Sandwich Roofing Panels With PU Polyurethane CoreMetal Panel Insulated Sandwich Roofing Panels With PU Polyurethane CoreMetal Panel Insulated Sandwich Roofing Panels With PU Polyurethane Core
