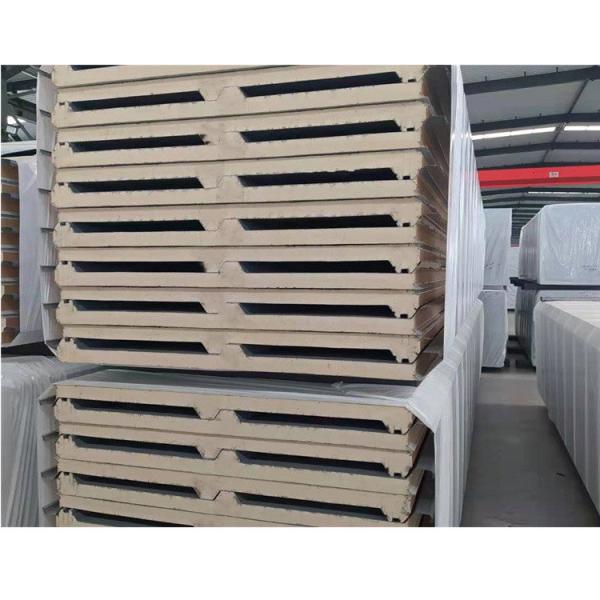

100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
100mm Thickness PU Roof Panel Polyurethane Insulated Sandwich Roof Panel
Specifications
Place of Origin :
Henan, China
Brand Name :
ZENGTUO
Supply Ability :
4000 Ton/Tons per Month
MOQ :
500 square meters
Price :
$8.90/square meters 500-999 square meters
Sound Insulation :
≥30dB
Installation Method :
Concealed fixing or through fixing
Color :
White, Grey, Blue, Red, Green, etc.
Material :
Polyurethane (PU)
Snow Load Resistance :
≥1.0kN/m2
Thickness :
50mm, 75mm, 100mm, 150mm, 200mm
Length :
Customizable
Thermal Conductivity :
0.022-0.028 W/mK
Density :
35-40kg/m3
Fire Rating :
Class B1
Application :
Roofing for industrial and commercial buildings
Width :
1000mm
Description

advantage

Set bearing, heat preservation, fire prevention, waterproof in one, and no need for secondary decoration, quick and convenient installation, short construction period, good comprehensive benefits, with good cost-effective advantages, is a widely used plate

PU Panel roofing or what we call insulated panels. we have Roofing PU Panel ,These panels consist of a rigid foam insulation layer sandwiched between two structural metal skin surfaces. The core consists of Polyurethane and Polyisocyanurate insulated panels that form a strong bond to the outer skin, creating a durable panel.

Strong and durable

Polyurethane four-wave roof plate is made of double-sided composite aluminum-zinc plated color steel, supplemented by hard hair on both sides of the groove

Large bearing capacity

Large panel design, reinforce the surface size, increase the span space, 40mm crest height of the panel, greatly improve the bearing capacity of the roof panel

Features

Heat, Sound and water insulated.

Corrosion resistance

Lap properly

The bevel design at the small edge of the lap joint is simple and reasonable.

specification

Type

PU sandwich roof panel/polyurethane sandwich roof panel

Core

polyurethane

Density

40-45kg/m3

Surface material

color steel sheet/aluminum foil

Steel thickness

0.3-0.8mm

Core thickness

40/50/75/90/100/120/150/200mm

Length

1-11.8m

Effective Width

1000mm

Fire Rating

Great B

Color

Any Ral color

Wave

four waves

Advantages

Lightweight/Fireproof/Waterproof/Easy Install/Insulation

Surface Appearance

seamless-wave/slitwidth-wave/concave-wave/Flat/Embossed/Other

Usage

It is suitable for the various roofs referring to the large-size factory buildings, storage, exhibition halls, gymnasiums, freezing stores, purification workshops, etc.
