Specifications
Brand Name :
Yongjia
Model Number :
Low Pressure Foam Machine
Certification :
CE
Place of Origin :
Jiangsu, China
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
50 Set/Sets per Month PU polyurethane low pressure foam mixing molding machine
Delivery Time :
45-60 days
Packaging Details :
sea worthy wooden box for PU Polyurethane Low Pressure Foam Mixing Molding Machine for Sheet Foam
Product Name :
pu injection moulding machine
Injection Output :
54-216g/s
Foam application :
All shaped memory foam pillows
Input power :
three-phrase five-wire，380V 50HZ
Rated power :
about 11KW
Raw Material :
Flexible Foam Polyol+Isocyanate
Description

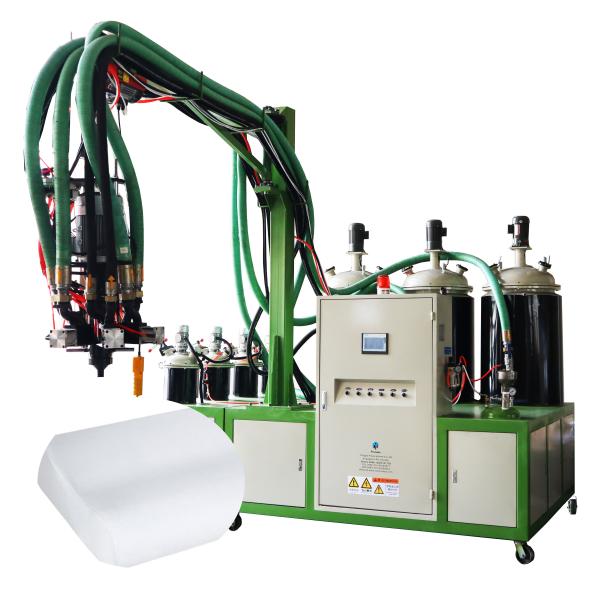

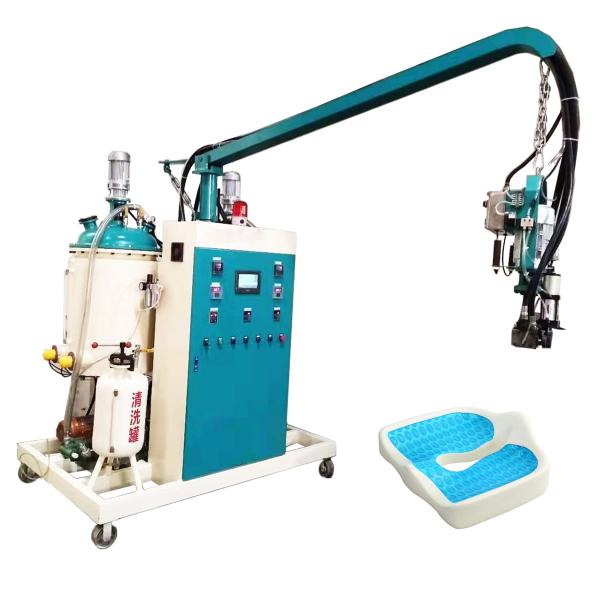

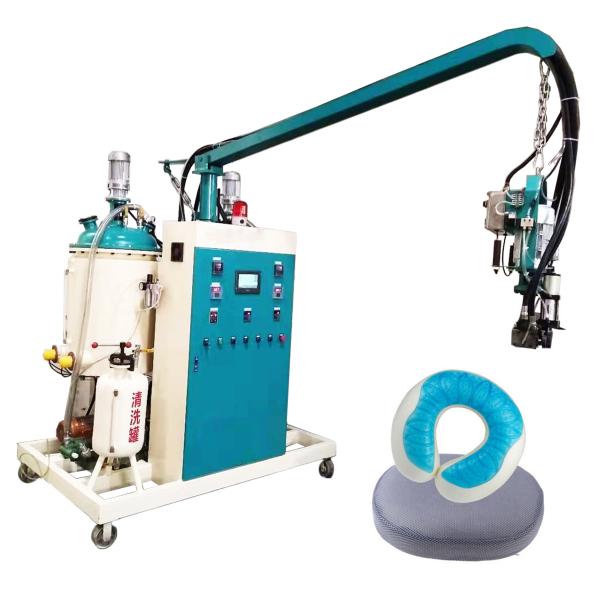

Polyurethane Soft C Shaped Memory Foam Pillow Molding Low Pressure PU Foaming Machine
Product Description of polyurethane injection molding machine:

SPUF2A25-20 type low pressure foaming machine is newly developed by Yongjia company based on learning and absorbing advanced techniques abroad, which is widely employed in the production of automotive parts, automotive interior, toys, memory pillow and other kinds of flexible foams like integral skin, high resilience and slow rebound , etc. This machine has high repeat injection precision, even mixing, stable performance, easy operation, and high production efficiency, etc.

No. Item Technical Parameter
1

Foam application

 Flexible foam pillows
2 raw material viscosity(22℃)

～3000CPS

～1000MPas
3 Injection Output 54-216g/s
4 Mixing ratio range 100:28～48
5 Mixing head

2800-5000rpm, forced dynamic mixing
6 Tank Volume 120L
7 Metering pump A pump: GPA3-25 Type B Pump: JR20 Type
8 Compressed air requirement

dry, oil free P:0.6-0.8MPa

Q:600NL/min(Customer-owned)
9 Nitrogen requirement

P:0.05MPa

Q:600NL/min(Customer-owned)
10 Temperature control system heat:2x3.2kW
11 Input power three-phrase five-wire,380V 50HZ
12 Rated power about 11KW
13 swing arm Rotatable swing arm, 2.3m(length customizable)

Features of pu injection machine:

1. For sandwich type material bucket, it has good heat preservation

2. The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation was absolutely clear.

3. Head connected with the operation system, easy for operation

4. The adoption of new type mixing head makes the mixing even, with the characteristic of low noise, sturdy and durable.

5. Boom swing length according to the requirement, multi-angle rotation, easy and fast
6. High precision pump lead to measuring accurately
7. Easy for maintenance, operation and repair.
8. Low energy consumption.

Applications:

Also known as viscoelastic foam, memory foam contours in response to heat and pressure. The material provides a supportive, pressure-relieving cradle that makes it ideal for use in pillows.

Whether you suffer from neck pain or whether you’re simply looking for a pillow that will support your spine and help you get a better night’s sleep, look no further. Polyurethane foam pillow can meet all your requirements.

Polyurethane Soft C Shaped Memory Foam Pillow Molding Low Pressure PU Filling Machine
