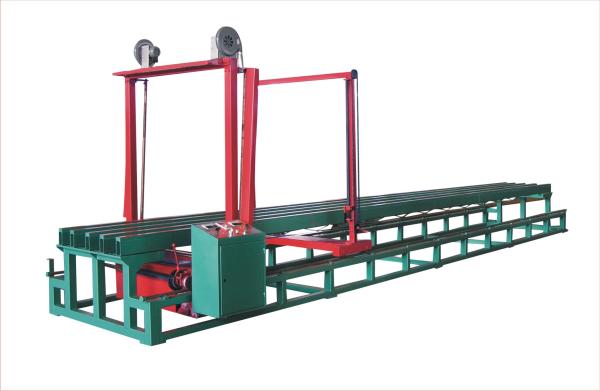

11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks
Specifications
Brand Name :
D&T
Model Number :
DTC-EP200
Certification :
CE
Place of Origin :
Zhejiang,China
MOQ :
1 set
Price :
USD 5000 - 40000 / set
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
20 sets / month
Delivery Time :
40 working days
Packaging Details :
Film + wooden box
Item :
EPS Sheet Cutter
Max. cutting size :
2000*1300*1300mm
Power :
11.2kw
Overall Dimension :
8800*1950*2450mm
Weight :
800kg
Wire Dia. :
0.8-1.2mm
Cutting Speed :
0-2m/min
Description

11.2kw Horizontal EPS Sheet / Styrofoam Cutting Machine For EPS Blocks

TECHNICIAL DATA
Type DTC-EP200 DTC-EP300 DTC-EP400 DTC-EP600 DTC-EP800
Max. Product Size

2000×1300×

1300(mm)

3000×1300×

1300(mm)

4000×1300×

1300(mm)

6000×1300×

1300(mm)

8000×1300×

1300(mm)
Power 11.2kW 11.2kW 11.2kW 11.2kW 11.2kW
Overall Dimension

4800×1950×

1850(mm)

5800×1950×

1850(mm)

6800×1950×

2450(mm)

8800×1950×

2450(mm)

10800×1950×

2450(mm)
Overall Weight 800㎏ 1000㎏ 1200㎏ 1600㎏ 2000㎏

Main Features:


1. The main frame of the machine is welded from square profile steel, with strong structure and high strength.
2．The machine has horizontal, cross and edge cutting devices.
3．The machine adopts transducer to get the suitable cutting speed for different type and density EPS block.
4．Voltage adjustment. With the transducer, the machine can cut sheet excellent.


Note: The price bases on present exchange rate. It will be changed with the exchange rate.

This offer is valid: 30 days
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T or Sight Confirmed Irrevocable L/C

Delivery: 40 days after receipt of advance payment.

Installation and Start-up: One technician (with one Translator) will be assigned to coordinate installation, Commissioning and training, cost for flight and suitable accommodation plus USD60/day each will be charged additionally.

Warranty: 12 months limited warranty

The machine also can be produced by customer’s special requirement.


.
