High Performance Polystyrene Eps Block Molding Machine For Easy Operation

Specifications

Brand Name :

D&T

Model Number :

DTZ100AB

Place of Origin :

China

MOQ :

1 set

Price :

USD 10000-200000 /PC

Payment Terms :

L/C, T/T, Western Union，paypal

Supply Ability :

20 SETS PER MONTH

Delivery Time :

40 work days

Packaging Details :

WOODEN BOX

After-sales Service Provided :

Engineers available to service machinery overseas

Mold Dimension :

1000*800

Max Product Dimension :

800*600*330

Stroke :

210-1360mm

Steam Entry :

DN80mm

Steam Consumption :

(12-15T) Steam of 1T material kg/cycle

Water Entry :

DN80mm

Cooling Water Consumption :

40-120kg/cycle

Comm-pressed Air Entry :

DN40mm

Description

High Performance Polystyrene Eps Block Molding Machine For Easy Operation

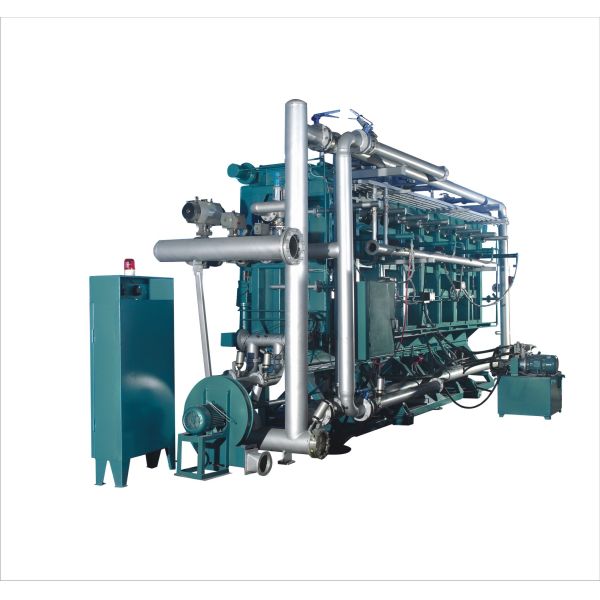

[EPS Block Molding Machine]

Main Features
1). Machine structure:
a.The machine mold are welded by strong rectangle tube and steel plate which make high strength to keep more safety of the machine;
b.All block mold frames are treated by heat-treatment to release the welding stress, so that the frames would not deformed;
c. After heating treatment, all mold frames are processed by sand blasting treatment to keep the rust away, then under coat and finishing
coat are greatly improved anticorrosion performce and long life;
d. Adopts three Germany gauges and safety valve for multi-safety protection.
The machine will be tested by water pressure and steam(many steps),ensure the machine more stable and safety.

2). Steam system: three ball valves, comparing one big steam valve control system, saves 20% steam,with ISO-standard butterfly valves,
greatly improve stability and long life;

3). Control system:
a. Adopts PLC(Mitsubishi) and touch screen(schneider) for an easy operation;
b.Equipped material level sensor to control the filling. The block cooling is controlled by foam pressure sensor, the whole procedure for filling,
heating, cooling will be controlled automatically by PLC.

TECHNICAL DATA

Item		SPB200/DZ	SPB200/DF	SPB300/DZ	SPB300/DF
Mould Cavity Size(mm)		2040x1240 x1030	2040x1240x1030	3060x1240x1030	3060x1240x1030
Block Size (mm)		2000×1200 ×1000	2000×1200×1000	3000×1200×1000	3000×1200×1000
Steam	Diameter Volume Useable Volume	DN80 30-50kg/cycle 0.8MPa	DN65 20-30kg/cycle 0.8MPa	DN80 50-70kg/cycle 0.8MPa	DN65 30-40kg/cycle 0.8MPa
Compressed Air	Diameter Volume Useable Volume	DN40 1.5-2m3/cycle 0.6MPa	DN40 1-1.5m3/cycle 0.6MPa	DN40 1.8-2.2m3/cycle 0.6MPa	DN40 1.5-1.8m3/cycle 0.6MPa
Cooling Water	Diameter Volume Useable Volume	DN40 0.2-0.4m3/cycle 0.4-0.6MPa		DN40 0.4-0.6m3/cycle 0.4-0.6MPa
Drainage	Vacuum drain Steam vent Condensate Blower outlet	125mm 100mm 100mm 125mm	100mm 125mm	125mm 100mm 100mm 125mm	125mm 125mm
Throughput	15kg/m3	5min/cycle	5-12min/cycle	6min/cycle	6-15min /cycle
Power		20.5-24.5Kw	9.5Kw	20.5-24.5Kw	9.5Kw
Overall Dimension(mm)	(L×W×H)	5700×4000 ×2850	4000×2150×2100	7200×4500×4300	5030×227 0×2120
Weight		6000kg	4200kg	7200kg	6000kg
Room Height Required		6000mm	6000mm	6000mm	6000mm
