Full Pneumatic Driving Polyurethane Foam Spray Machine 380V/50HZ/3 Phase
Full Pneumatic Driving Polyurethane Foam Spray Machine 380V/50HZ/3 Phase
Specifications
Brand Name :
RongXing
Model Number :
RX900
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability :
100 set/month
Delivery Time :
5-10 working days
Packaging Details :
wooden case,1000*900*1500mm
Product Name :
New design polyurethane foam spray machine,380V polyurethane foam insulation machine
Use :
Exterior wall insulation,transfer PU
Spec :
380V/50HZ/3-Phase or 220V/50HZ/1-Phase
Use place :
waterproof construction, polyurethane roofing, walling heat-insulated construction
Gross weight :
about 200KG
Packing size :
1000*900*1500mm
Color :
blue
Packing :
wooden case
Description

Compact Structure Polyurethane Spray Machine 3000W×2 Heater Power CE Assured

Spec:

Specifications: 900
The ratio of raw material 1:1
Viscosity range of raw material 200-1000CPS(under working temperature)
Max working pressure 25Mpa (200bar)
Max fluid temperature 80°C (176°F)
Max output 2-10kg/min
Heater power 3000W×2
Drive model Full pneumatic
Pipeline insulation heating power 2000W
Voltage (Optional) 1-ph 220V 50Hz or 3-ph 380V 50Hz
Pneumatic source 0.5-0.8Mpa 1m³/min (73-116psi 35 cu ft)
Standard Configuration:
A500 mainframe 1 set
P2 spray gun 1 pc
Transfer pump 2 pcs
Heated hose (Standard) 15m (50ft)
Max hose length (Optional) 120m
Transfer pump hose 2 pcs
Air pipe 1 set
Spare parts and tools 1 set
Transport Parameter:
Package size (L×W×H) 1000×900×1500cm (2.95×2.95×4.75ft)
Net weight/Gross weight 125kg/200kg (286 lb/430 lb)

Features:

1. This equipment low failure rate, easy to move, easy to operate, heating faster, spraying evenly, save 10% material.

2. The flat-type booster pump has the perfect coaxial structure design, minimizing the wear of the seal ring. The two-way pressurization design minimizes the pressure fluctuation, and the spraying effect is more stable than the traditional booster pump.

3. Equipped with isocyanate anti crystallization & lubrication device, the circulating lubricating fluid can take away the leaking isocyanate or the magazine at any time, the pump shaft always infiltrates in the lubricating fluid, avoids the isocyanate crystallization.

4. The cylinder is equipped with the prevention of cryogenic icing device, so that the equipment can still work normally under low temperature condition.

Use area:
Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.

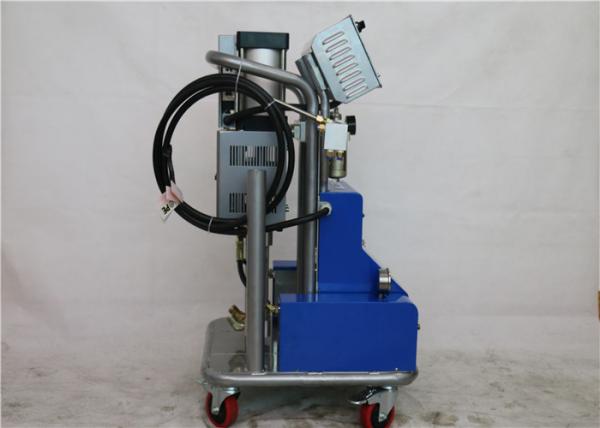

Picture:

Full Pneumatic Driving Polyurethane Foam Spray Machine 380V/50HZ/3 Phase
