High Pressure PU Spray Machine For Exterior Wall Insulation CE Certificated
High Pressure PU Spray Machine For Exterior Wall Insulation CE Certificated
Specifications
Brand Name :
RongXing
Model Number :
RX350
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability :
100 set/month
Delivery Time :
5-10 working days
Packaging Details :
carton box,1000*900*1500mm
Product Name :
high pressure PU spray machine,spray polyurethane foam machine
Use :
Exterior wall insulation
Spec :
380V/50HZ/3-Phase or 220V/50HZ/1-Phase
Use place :
waterproof construction, polyurethane roofing, walling heat-insulated construction
Gross weight :
about 210KG
Packing size :
1000*900*1500mm
Color :
Blue
Description

high pressure PU spray machine,spray polyurethane foam machine

Spec:

Specifications: 350
The ratio of raw material 1:1
Viscosity range of raw material 200-2000CPS(under working temperature)
Max working pressure 25Mpa (250bar)
Max fluid temperature 80°C (176°F)
Max output 4-12kg/min (19.8 lb/min)
Heater power 7500W×2
Pipeline insulation heating power 3500W
Spray gun clean Self-clean by air
Voltage (Optional) 1-ph 220V 50Hz or 3-ph 380V 50Hz
Pneumatic source 0.5-0.8Mpa 1m³/min (73-116psi 35 cu ft)
Standard Configuration:
A500 mainframe 1 set
P2 spray gun 1 pc
Transfer pump 2 pcs
Heated hose (Standard) 15m (50ft)
Max hose length (Optional) 120M
Transfer pump hose 2 pcs
Air pipe 1 set
Spare parts and tools 1 set
Transport Parameter:
Package size (L×W×H) 1000×720×1200cm (2.95×2.95×4.75ft)
Net weight/Gross weight 125kg/210kg (286 lb/430 lb)

Use area:
Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.

Picture:

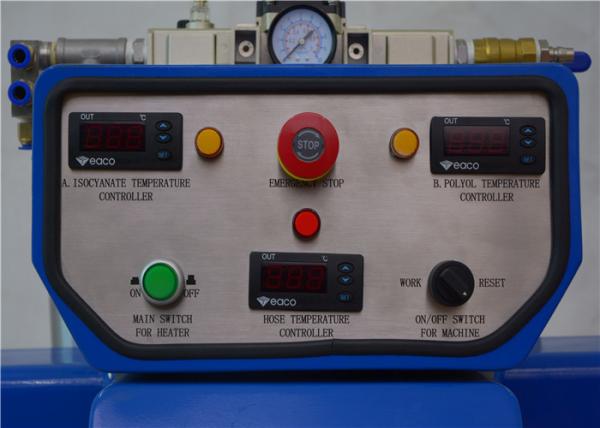

High Pressure PU Spray Machine For Exterior Wall Insulation CE Certificated
