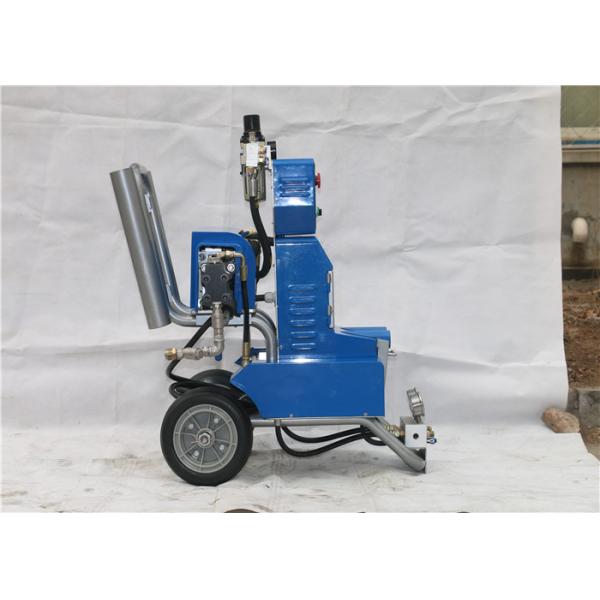

High Pressure Polyurethane Injection Machine For Wall And Roof Insulation
High Pressure Polyurethane Injection Machine For Wall And Roof Insulation
High Pressure Polyurethane Injection Machine For Wall And Roof Insulation
High Pressure Polyurethane Injection Machine For Wall And Roof Insulation
High Pressure Polyurethane Injection Machine For Wall And Roof Insulation
High Pressure Polyurethane Injection Machine For Wall And Roof Insulation
Specifications
Brand Name :
RongXing
Model Number :
RX350
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability :
100 set/month
Delivery Time :
5-10 working days
Packaging Details :
carton box,1000*900*1500mm
Product Name :
High pressure PU polyurethane spray foam machine
Use :
Exterior wall insulation
Spec :
380V/220V
Use place :
waterproof construction, polyurethane roofing, walling heat-insulated construction
Gross weight :
about 210KG
Packing size :
1000*900*1500mm
Packing :
wooden case
Description

sales Service Provided and New Condition spray foam machine, High pressure PU polyurethane spray foam machine

Spec:

Specifications: 350
The ratio of raw material 1:1
Viscosity range of raw material 200-2000CPS(under working temperature)
Max working pressure 25Mpa (250bar)
Max fluid temperature 80°C (176°F)
Max output 4-12kg/min (19.8 lb/min)
Heater power 7500W×2
Pipeline insulation heating power 3500W
Spray gun clean Self-clean by air
Voltage (Optional) 1-ph 220V 50Hz or 3-ph 380V 50Hz
Pneumatic source 0.5-0.8Mpa 1m³/min (73-116psi 35 cu ft)
Standard Configuration:
A500 mainframe 1 set
P2 spray gun 1 pc
Transfer pump 2 pcs
Heated hose (Standard) 15m (50ft)
Max hose length (Optional) 120M
Transfer pump hose 2 pcs
Air pipe 1 set
Spare parts and tools 1 set
Transport Parameter:
Package size (L×W×H) 1000×720×1200cm (2.95×2.95×4.75ft)
Net weight/Gross weight 125kg/210kg (286 lb/430 lb)

Use area:
Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.

Picture:

High Pressure Polyurethane Injection Machine For Wall And Roof Insulation
