Specifications
Brand Name :
RongXing
Model Number :
207550
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability :
100 set/month
Delivery Time :
2- 5 working days
Packaging Details :
carton box,1400*180*180mm
Product Name :
304SS high viscosity air piston transfer pump
Use :
Transfer high viscosity fluid
Spec :
5:1
Use place :
200KG drum(suction tube length could make as customer wanted)
Gross weight :
about 10KG
Packing size :
1400*180*180mm
Description

304 Stainless Air Powered Transfer Pump 0.8Mpa Pressure Inlet Max CE Assured

Spec:

Item name 304SS High viscosity air piston transfer pump,fluid transfer pump
Model
207550
Pressure ratio
5:1
Main material
304 stainless steel
Air pressure
0.3-0.8Mpa
Gressure output
0-25L/Min
Air inlet
G1/4”
Fluid outlet
G1/2”
Gross weight 10KG
Suction tube length
900mm.(The length could make as customer wanted)
Packing size
1400*180*180mm
Port Shanghai
Package carton box
Delivery time Shipped in 7 days after payment


Describe:

* special for heavy viscosity liquid, such as paint spraying,
* for chemical liquid, oil, heavy visocosity liquid, PU liquid,
* pressure inlet Max: 0.8Mpa
* capacity: 1.5L/min~25L/min
* ratio: 5:1
* pump body material: 304 stainless steel pump

Advantages:

1, after the close of polished stainless steel surface and surface treatment . Without prejudice to the chemical properties of the material while increasing the speed of material transport. 2, can handle a variety of high-viscosity fluids , strong corrosion resistance . 3 , repair parts less , reduce maintenance costs in the true sense 4 , high mechanical life .

Usage:

In paints, coatings , automotive painting , building painting, oil body transportation , chemical, pharmaceutical and other industries widely used. Very suitable for viscous liquids, corrosive liquids containing solid particles or liquid transport gas bubbles . A variety of materials , wide adaptation , easy to install , and easy maintenance.

Applications:

Chemical industry:PU, acids, bases, solvents, suspended solids, dispersions.

Petrochemical industry: crude oil, heavy oil, grease, mud, sludge and so on.

Paint industry: resins, solvents, colorants, paint and so on.

Cosmetic industry: detergents, shampoos, lotions, creams, hand creams , surfactants .

Ceramics: mud, ceramic slurry, lime slurry, clay slurry.

Mining industry: coal slurry, lava, mud, mortar, lubricants.

Water: stone mortar, soft sediment, sewage, chemicals, waste water.

Food industry: liquid semi-solid chocolate, salt , vinegar , syrup, vegetable oil, soybean oil , honey , animal blood .

Beverage industry: yeast, syrups, concentrates, liquid mixture, wine, juice , corn syrup , etc.

Pharmaceutical industry: solvents, acids , bases, and plant extracts liquid , ointment , liquid plasma and other types of drugs .

Paper: adhesives, resins, paints, inks , pigments , such as hydrogen peroxide .

Textile industry: chemical dyes, resins, rubber and so on.

Construction: Cement paddle, ceramic tile adhesives, rock slurry, ceiling paint and so on.

Automotive industry: polishing creams, oils, coolants, automotive paint, oil, latex, varnish, lacquer additives, degreasing fluid, paint and so on.

Furniture industry: adhesives, varnishes, dispersions, solvents, coloring agents, white wood glue, epoxy resin, starch binder.

Picture:

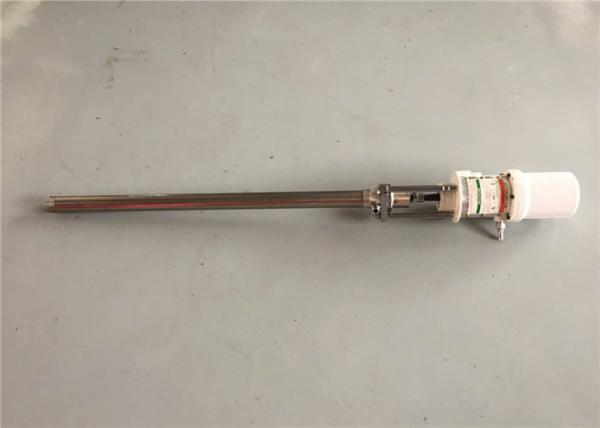

Corrosion Resistant Surface Spray Foam Transfer Pumps 900mm Suction Tube Length
