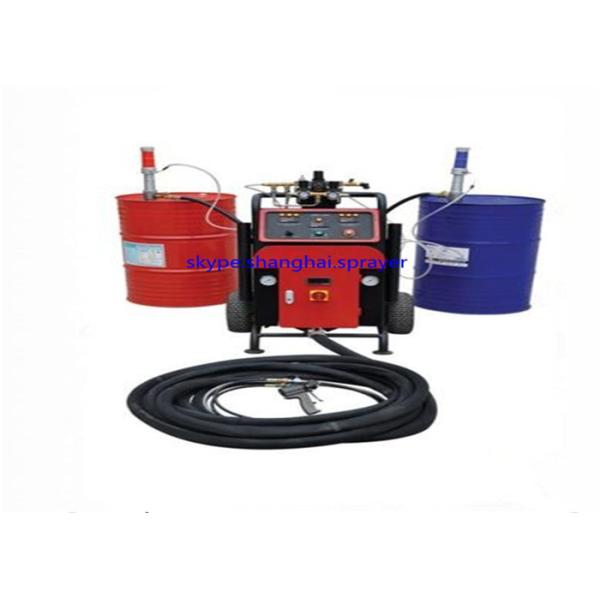

Environmental Protection Polyurethane Foam Spray Machine For Building Exterior Wall
Environmental Protection Polyurethane Foam Spray Machine For Building Exterior Wall
Specifications
Brand Name :
RongXing
Model Number :
H30
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability :
100 set/month
Delivery Time :
5-10 working days
Packaging Details :
wooden case,1000*900*1500mm
Name :
Polyurethane Foam Spray Machine
Application :
Building Exterior Wall
Spec :
380V/220V
Advantage :
Environmental Protection
Gross weight :
about 235KG,weight add also according heated hose group
Packing size :
1000*900*1500mm
Color :
blue
Packing :
wooden case
Description

Environmental Protection Polyurethane Foam Spray Machine For Building Exterior Wall

Polyurethane Foam Spray Machine Spec:

Polyurethane spray machine H30

The standard machine is 380V/50HZ,3-PH,4 LINES, we could make the machine as customer wanted Voltage and Hertz and Phase.

Polyurethane Foam Spray Machine Configuration and Technical Data:

Main equipment: 1 set
Nozzle 1 pc
Heating tube per group: 15 meter (standard)
Max. length (optional) 90 meter
Short tube with nozzle per group: 1.5 Meter
Feeding pump 2 pieces
Proportion of raw material: 1:1 standard fixed ratio (changeable ratio can be selected)
Viscosity range of raw material: 200-1000 CPS (under operation temperature)
Output of raw material 2-7.8 kg/min
Electrical source: 3 phase 4 wire, 380V 50HZ 14A×3+16A or 220V
Compressed air: 0.5~0.8Mpa 1m3/min
Output pressure of raw material per group: 5-10Mpa
Material Heater power: 3500W*2
Pipeline insulation heating power 3000W
Gross weight 235KG
Packing size 1000*900*1550mm

Polyurethane Foam Spray Machine Features:

1. The equipment has obtained CE certification, safe and environmental protection.
2. Having the proprietary property rights in design and production, several national patents have been applied and approved.
3. The perfect coaxial structure design of the horizontal booster pump reduces greatly the abrasion of the sealing. There is no pressure difference during operation and the commuting pressure fluctuation value is ideal and stable.
4. The lubricant inside the anti-solidifying lubricating cylinder circulates with high speed so that the leaked material and impurities could be brought away rapidly. The shaft for black material is always kept in the lubricant avoiding the crystallization.

Polyurethane Foam Spray Machine Application :
Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.
