20Mpa Polyurethane Foam Injection Machine / Light Polyurethane Injection Equipment
20Mpa Polyurethane Foam Injection Machine / Light Polyurethane Injection Equipment
Specifications
Brand Name :
RongXing
Model Number :
RX-2000
Certification :
CE
Place of Origin :
Shanghai
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability :
100 set/month
Delivery Time :
5-10 working days
Packaging Details :
wooden case,1000*900*1500mm
Product Name :
Polyurethane Foam Injection Machine
The ratio of raw material :
1:1
Feature :
Light
Max working pressure :
20Mpa (200bar)
Max fluid temperature :
80°C (176°F);Heating Power:8KW
Max output :
4-8kg/min (19.8 lb/min)
Heater power :
3000W×2
Other Name :
Polyurethane Injection Equipment
Description

20Mpa Polyurethane Foam Injection Machine / Light Polyurethane Injection Equipment

Polyurethane Foam Injection Machine Feature

  • Light , suitable for site work
  • Pneumatic motor
  • High precision proportion pump
  • Main machine heating system
  • Euipped with emergency switch

Polyurethane Foam Injection Machine Describe:

  1. The equipment has obtained CE certification, safe and environmental protection.
  2. The lubricant inside the anti-solidifying lubricating cylinder circulates with high speed so that the leaked material and impurities could be brought away rapidly. The shaft for black material is always kept in the lubricant avoiding the crystallization.
  3. The delicate coupling structure is easy for the dismounting of the booster pump during the maintenance. When necessary, the complete unilateral raw material pump can be replaced to change the proportion of the raw material.
  4. The design and application of the reset function when shut down realizes the dual protection.
  5. The dual filters of the equipment for both high and low pressure and the filter of the nozzle realize the triple filtration protection for the raw material and reduce the blocking.
  6. The special armoured temperature sensor inside the heater can collect the temperature signal at any time, hence the overshooting value for heating is well controlled.

Polyurethane Foam Injection Machine Parameters

Product Name: Polyurethane Spray Machine The Ratio Of Raw Material: 1:1
Viscosity Range Of Raw Material: 200-2000CPS(under Working Temperature) Max Working Pressure: 20Mpa (200bar)
Max Fluid Temperature: 80°C (176°F);Heating Power:8KW Max Output: 4-8kg/min (19.8 Lb/min)
Heater Power: 3000W×2 Pipeline Insulation Heating Power: 2000W
Transfer pump 2 pcs Heated hose 15M
Max hose length (Optional) 75M Transfer pump hose 2 pcs(1.5M*2)
Air pipe:1 set Spare parts and tools:1 set Package size (L×W×H) 1050*1100*1200mm
Net weight/Gross weight 90k/150kg Feature high speed

Use area:
Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.

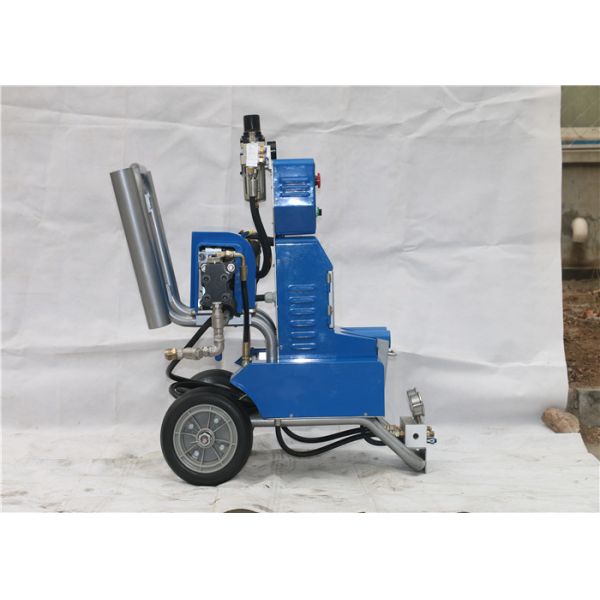

Picture:

20Mpa Polyurethane Foam Injection Machine / Light Polyurethane Injection Equipment
