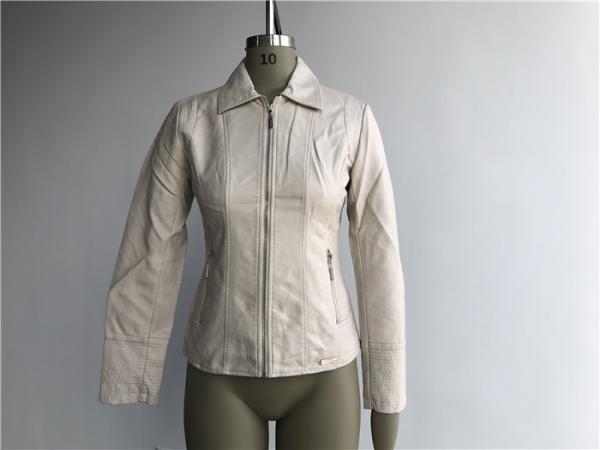

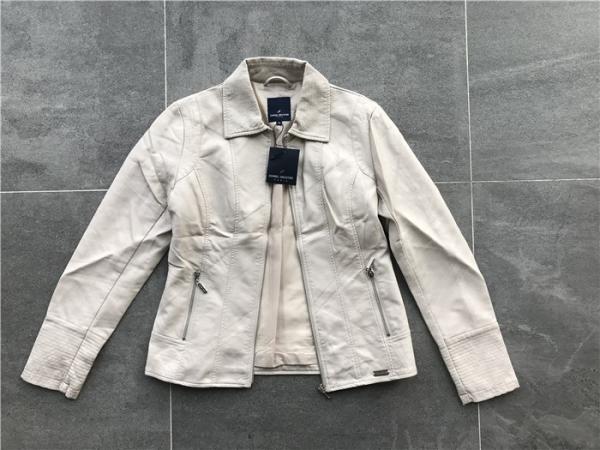

Ladies' polished sliver zip through stone pleather jacket with multi topstitching on collar TW77307
Description
Shell fabric
| 100%PU/Polyurethane with 100%viscose base, 310-330gsm |
Lining
| DTM 210T |
Trims list
Trim | Position | quantity | Size | Color |
Metal zip
| CF, side pocket | 3 | #5 | polished sliver |
Branded Puller
| CF, side pocket | 3 | polished sliver | |
Branded ingot
| LSW hem | 1 | 3x1cm | polished sliver |
SKETCH
Styling Details:
Front:
Front of garment:
- To have a 6.5cm t-shirt collar with 3cm collar stand with multi top stitching on the collar.
- To have a CF polished sliver #5 metal zip & branded puller, exposed zip tape and foot stitching at either side of placket.
- To have a curved inset panels at armholes as indicated on CAD and to be multi stitched.
- To have two panels on either side of c/front zip and to be footstitched
- Vertical functional zip pockets to be inserted into panel line closest to side seam as indicated on CAD, the pocket size to be 14cm x 1.8cm, with exposed zip tape and branded puller
- To have polished sliver branded ingot at LSW above the hem.
- To have foot stitching at hem.
- To have 8cm wide waistband from princess seams to back, the waistband with multi topstitching.
Sleeves:
- To have long sleeves with cut line running down back of arm with foot stitching.
- Sleeve cuff to be 13cm deep cuff with multi top stitching.
Back:
- To have a curved inset panels at armholes as indicated on CAD and to be multi stitched
- To have back panels on either side of center back seam
- To have 2x cut lines either side of center back with foot stitching.
- To have 13cm wide waistband with multi top stitching.
Inside:
Style to be fully lined in DTM poly lining
To have pu fabric hanger loop
Branding:
Daniel hechter branded trims
All metal hardware to be polished sliver color.
All stitching thread to be DTM.
Spec
MEASUREMENTS | Tolerances | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 |
Collar Depth at C/Back Neck | 0/0 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Across Back Neck (HSP to HSP) | 5/5 | 16.8 | 17.2 | 17.6 | 18 | 18.6 | 19.2 | 19.8 | 20.4 | 21 |
Across Back Mid-Armhole | 10/10 | 35 | 36 | 37 | 38 | 39.2 | 40.4 | 42.4 | 44.9 | 47.4 |
Across Front Mid-Armhole or Yoke | 10/10 | 33 | 34 | 35 | 36 | 37.2 | 38.4 | 40.4 | 42.9 | 45.4 |
Half Bust at Underarm | 10/10 | 42 | 44 | 46 | 48 | 50.5 | 53 | 56.5 | 61 | 66 |
Half Waist (41cm down) | 10/10 | 35 | 37 | 39 | 41 | 43.5 | 46 | 49.5 | 54 | 59 |
Half Hem Width - Straight Across | 10/10 | 43 | 45 | 47 | 49 | 51.5 | 54 | 57.5 | 62 | 67 |
Shoulder Seam | 5/5 | 11.1 | 11.4 | 11.7 | 12 | 12.3 | 12.6 | 12.9 | 13.4 | 13.9 |
Long Sleeve Length (including Cuff) | 5/5 | 60.8 | 61.2 | 61.6 | 62 | 62.6 | 63.2 | 63.8 | 63.8 | 63.8 |
Half Armhole (Diagonal) | 5/5 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25.4 | 26.8 |
Half Bicep at Underarm | 5/5 | 14.5 | 15.5 | 16.5 | 17.5 | 18.5 | 19.5 | 20.5 | 21.9 | 23.3 |
Half Cuff Width (Long) | 5/5 | 11 | 11.5 | 11.5 | 12 | 12.5 | 12.5 | 13 | 13.5 | 13.5 |
Cuff Depth | 0/0 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
Front Length from NSP | 10/10 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 65 | 67 |
C/Back Length from Neck Seam | 10/10 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63.5 |
Neck Drop (seam to seam) | 5/5 | 8 | 8 | 8 | 8 | 8 | 8 | 8.6 | 9.2 | 9.8 |
Side Pocket Mouth Opening | 5/5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 14 | 14 | 14.5 |
Collarstand depth @ CB | 5/5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Collar Lead Edge | 5/5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
