Menswear zip through burgundy polyester bomber puffer jacket with rib detail TW76087
SPECIFICATIONS :
BODY FABRIC
|
100% POLYESTER |
LINING
|
100% 210T |
RIB
|
100% POLYESTER |
NAME | POSITION | SIZE | COLOR | QTY |
METAL ZIP | PLACKET & POCKET | #5 | gunmetal | 2 |
PULLER | PLACKET & POCKET | gunmetal | 2 | |
SNAP | 2 | gunmetal | 2 | |
MAIN LABLE | CB | 50X88 | 1 | |
SIZE LABLE | CB | 1 | ||
CARE LABLE | 10CM ABOVE HEM | 1 | ||
HANGTAG | LSW CUFF | 1 |
MEASUREMENTS:
MEASUREMENTS | Tolerances | XXS | X-Small | Small | Medium | Large | X-Large | XX-Larg |
Collar Depth @ Centreback Neck | 0/0 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Collar measurement along neck seam | 10/5 | 43 | 44 | 46 | 48 | 50 | 52 | 54 |
Across Back Neck (HSP to HSP) | 5/5 | 16.9 | 17.4 | 18.2 | 19 | 19.8 | 20.6 | 21.4 |
Neck Drop (seam to seam) | 5/5 | 8.2 | 8.2 | 8.6 | 9 | 9.4 | 9.8 | 10.2 |
Across Front Mid-Armhole or Yoke | 10/10 | 36.5 | 37.6 | 39.8 | 42 | 44.6 | 47.2 | 49.8 |
Across Back Mid-Armhole or Yoke | 10/10 | 39.5 | 40.6 | 42.8 | 45 | 47.6 | 50.2 | 52.8 |
Half Chest at Underarm | 10/10 | 48 | 50 | 54 | 58 | 64 | 70 | 76 |
Half waist 47cm down | 10/10 | 45 | 47 | 51 | 55 | 61 | 67 | 73 |
Half Hem Width at bottom of rib | 10/10 | 39 | 41 | 45 | 49 | 55 | 61 | 67 |
Shoulder Seam ex Neck Trim | 5/5 | 13.5 | 13.9 | 14.7 | 15.5 | 16.3 | 17.1 | 17.9 |
Sleeve Length (including Cuff) | 10/10 | 65.5 | 66 | 67 | 68 | 69 | 70 | 71 |
Half Armhole (Diagonal) | 5/5 | 22.5 | 23 | 24 | 25 | 26.5 | 28 | 29.5 |
Half Bicep at Underarm Pt | 5/5 | 19.5 | 20 | 21 | 22 | 23.5 | 25 | 26.5 |
Half Cuff Width | 5/5 | 9.5 | 9.5 | 10 | 11 | 12 | 13 | 14 |
Cuff Depth | 0/0 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Front Length (from HSP) | 10/15 | 66 | 68 | 70 | 72 | 74 | 76 | 78 |
C/Back Length from Neck Seam | 10/15 | 64 | 66 | 68 | 70 | 72 | 74 | 76 |
Pockets Width | 0/0 | 15 | 15 | 15.5 | 16 | 16.5 | 17 | 17 |
Half Hem at Rib Seam | 0/0 | 41 | 43 | 47 | 51 | 57 | 63 | 69 |
Pocket Position from HSP | 5/5 | 42.5 | 43 | 44 | 45 | 46 | 47 | 48 |

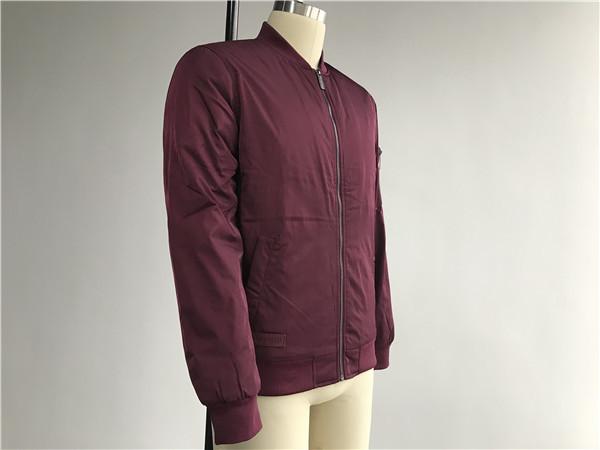

Styling - Front:
Neck to be baseball styling 2x2 DTM rib.
CF to have gunmetal zip size 5 as per sample, sides to be finished with single needle stitch.
Puller to be 38mm long and branded as per sample.
RSW and LSW body to have welt pockets 3cm x 15,5cm.
Welt pocket to have concealed popper closures in gunmetal.
Attached rubber badge on RSW 2cm above rib waistband placed 12cm from CF - branding attached.
Branding dimensions to be 5cm in length and adjust height accordingly.
CF hem to have nylon self fabric inset, 7cm height by 6cm wide.
Rib hem DTM 2x2 rib, height 7cm - quality as per sample.

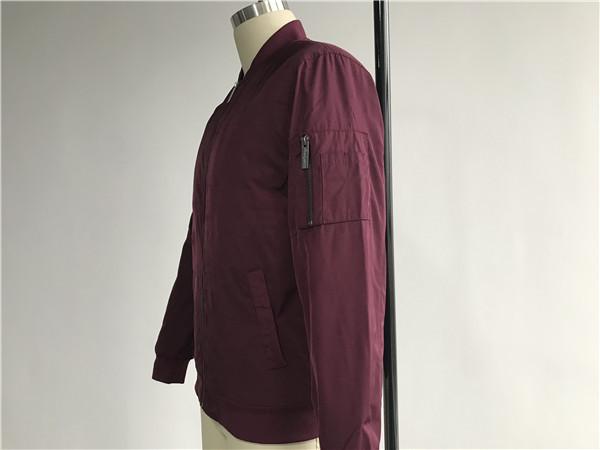

SLEEVE
MA1 pocket patch: 13cm length x 14cm height. Zip- size 5 gunmetal as per sample running length ways.
Patch pocket to have smaller laid on pocket on it: 7cm width x 10,5cm height with a top stitch running down the centre of pocket dividing it into two.
Sleeve cuff quality as per hem rib, height 7cm

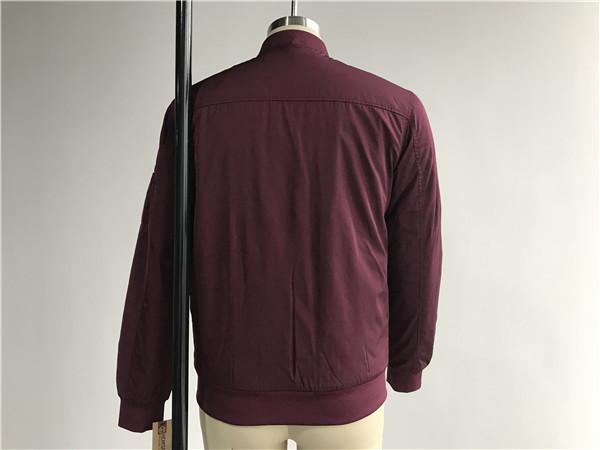

Back:
Back Neck as per front, rib height 45mm at CB
BODY
to have yoke with single needle stitch as per sample
hem as per front
SLEEVE
CB of sleeve to have cutline with single needle stitch
cuff as per front

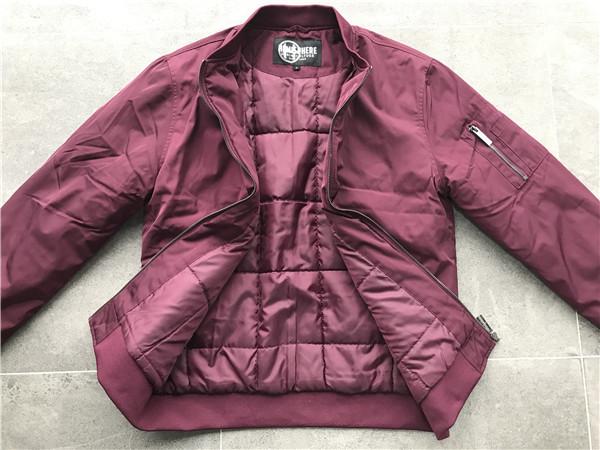

Inside:
Inside to be lined with burgundy DTM poly - square quilted as original sample.
Garment to be wadded as per sample.
54mm self fabric facing alongside zip opening.
LSW side to have inside welt pocket 14cm x 2cm in self fabric, no closure.
Back neck label to be placed on self fabric buggy
