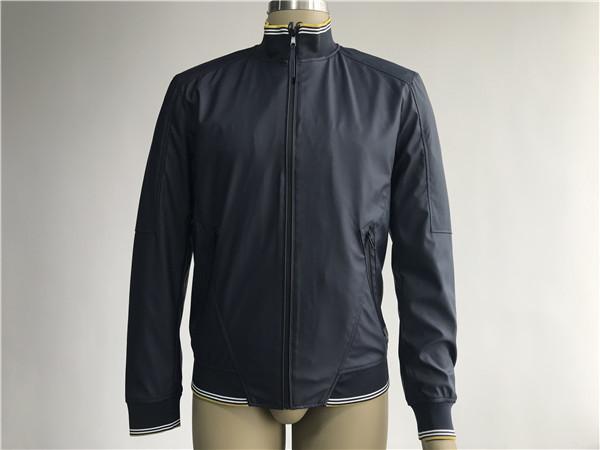

Navy Color light weight Mens pu Jacket With mesh Lining and rib details
Description
Shell fabric
|
100%polyester 100%viscose base |
Lining
|
mesh and satin in 100%polyester |
RIB
|
100%polyester |
Trims list
Trim
|
Position | Quantity | Size | Color |
nylon zip
|
CF+side pocket | 3 | #5 | black |
Branded puller
|
CF+side pocket | 3 | black |
Styling Details
Front:
Neck:
1*1 elasticated rib at neck with baseball neckline construction as per image. Colour to be navy with yellow and whote tipping.
Finish neck seam with 5mm edge stitch.
CF zip:
- Size: 5 nylon zip.
- Colour: black oxidised finish.
- Branded METAL square puller.
- Concealed zip teeth and zip tape.
- Finish edge of zip with edge stitch .
Body:
Shoulder seam to be fnished with 5mm edge stitch.
Finish armhole with 5mm edge stitch.
Princess cutline to have foot stitching.
Cuff to be same rib as on collar - colour navy black with yellow and white tipping at edge. Finish with 5mm edge stitch.
Hem to be same rib as on collar - colour navy black with yellow and white tipping at edge. Finish with 5mm edge stitch..
Pockets:
To have slanted pockets.
Opening to have zips. Zip colour, construction and branding as per CF zip.
Back:
Back yoke cutline finished with 5mm edge stitch.
Cutline at cb from neck line to hem- finish with 5mm edge stitch at both sides.
Princess cutline from underarm to hem - finish with 5mm edge stitch.
Inside:
PU Hanger loop at CB neck.
Finish back neck with PU buggy.
Laid on woven taffeta label at CB neck - see attached artwork.
Top of body to be lined with neavy mesh lining
Bottom of body to have green satin lining
Inside cf to have 5cm wide body fabric facing.
At LHSW chest to have wallet pocket with body fabric welt opening. Welt to have concealed snap popper.
Mearsurement
MEASUREMENTS | Tolerances | XXS | X-Small | Small | Medium | Large | X-Large | XX-Larg |
Collar Depth @ Centreback Neck | 0/0 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Collar measurement along neck seam | 5/5 | 42 | 43 | 45 | 47 | 49 | 51 | 53 |
Across Back Neck (HSP to HSP) | 5/5 | 16.9 | 17.4 | 18.2 | 19 | 19.8 | 20.6 | 21.4 |
Neck Drop (seam to seam) | 5/5 | 7.7 | 7.7 | 8.1 | 8.5 | 8.9 | 9.3 | 9.7 |
Across Front Mid-Armhole or Yoke | 5/5 | 36.5 | 37.6 | 39.8 | 42 | 44.6 | 47.2 | 49.8 |
Across Back Mid-Armhole or Yoke | 5/5 | 38.5 | 39.6 | 41.8 | 44 | 46.6 | 49.2 | 51.8 |
Half Chest at Underarm | 10/10 | 46 | 48 | 52 | 56 | 61 | 66 | 71 |
Half Hem Width - Straight Across | 10/10 | 38 | 40 | 44 | 48 | 53 | 58 | 63 |
Shoulder Seam ex Neck Trim | 5/5 | 12 | 12.4 | 13.2 | 14 | 14.8 | 15.6 | 16.4 |
Sleeve Length (including Cuff) | 10/10 | 65.5 | 66 | 67 | 68 | 69 | 70 | 71 |
Half Armhole (Diagonal) | 5/5 | 22.5 | 23 | 24 | 25 | 26.5 | 28 | 29.5 |
Half Bicep at Underarm Pt | 5/5 | 19 | 19.5 | 20.5 | 21.5 | 23 | 24.5 | 26 |
Half Cuff Width | 5/5 | 8.5 | 8.5 | 9 | 10 | 11 | 12 | 13 |
Cuff Depth | 0/0 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Front Length (from HSP) | 10/10 | 65 | 67 | 69 | 71 | 73 | 75 | 77 |
C/Back Length from Neck Seam | 10/10 | 63 | 65 | 67 | 69 | 71 | 73 | 75 |
