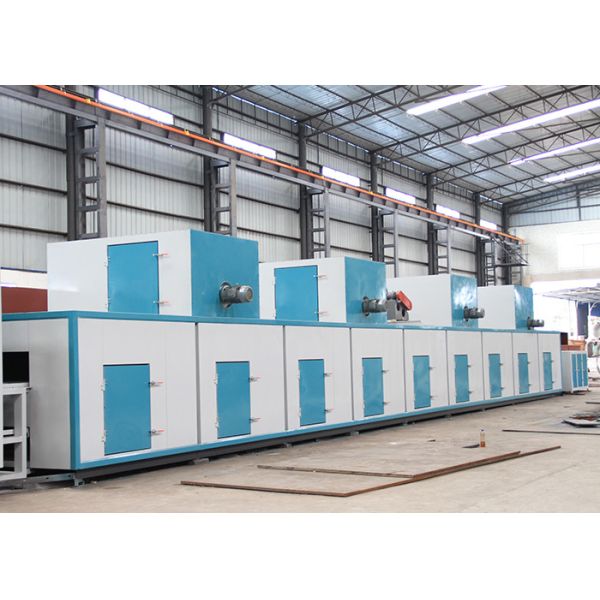

Fast Rotary Paper Egg Tray / Egg Box Making Machine 1 Layer Dryer with 8 Faces

Specifications:

Fuel Consumption (One Item Selectable)

Descriptions:

• It’s a fully automatic egg tray production line
• Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
• This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single-layer drying line, and corollary equipments.
• Products comes out automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
• SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.

Production Information and Our Warranty:

• Status: Brand New
• Product Type: Egg Tray Machine
• Processing Type: Pulp Molding Machine
• Place of origin: Guangdong, China
• Brand: NANYA
• Model Type: ER3000-A
• Voltage: 220V - 450V
• Approval: CE, TUV,SGS, ISO9001
• Warranty: 12 Months
• After-Sale Service: Engineers available to service machinery overseas

Applications:

Working Theory:

• The track or worker carries the raw material, such as waste paper, waste carton or used newspaper into the conveyor firstly;
• Then the conveyor pours down the raw material into the hydrapulper mixing with certain mater;
• Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency.
• The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
• The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum. So the wet products are shaped on the working platform.
• Finally the wet products will move into the drying line automatically. After a round or two, the products will get totally dry and then go into stacker and get packed.

Schematic Diagram:

Competitive Advantages:

• Fully automatic production line
• Overseas technical support available
• Proprietary technology
• TUV Supplier Assessment Certificate
• SGS Supplier Assessment Certificate
• CE Certificate
• Nanya - Chinese famous trademark
• 30 years experience in this field, Chinese reliable supplier, supported by the government and universities.
• The standing director of Chinese packaging association

Business Terms
