Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity
Specifications
Brand Name :
NANYA
Model Number :
BY010
Certification :
CE/SGS/TUV
Place of Origin :
Guangzhou, China(mainland)
MOQ :
1 set
Price :
contact us and get the latest price
Payment Terms :
T/T, L/C, Cash or western Union
Supply Ability :
1000sets/year
Delivery Time :
Normally 45 days
Packaging Details :
Export Standard Packing
Name :
Double-Station Forming Machine
Capacity :
100~150 kgs/h
Forming Type :
Reciprocating
Application :
Pulp Molding Products
Automation :
Automatic
Plate Size :
800*600*2mm
Weight :
2000KG
Product Height :
<=150mm
Description

Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity

Main Technical Data

Machine Type BY010
Capacity 100~150kg/h
Raw Material waste paper / waste carton / newspaper / books...
Forming Method Vacuum suction, turning type
Structure Double working station
Mould Plate Size 800*600*2mm
Cycle Time 12~15s (for around 80grams). (For different product, the cycle may differ).
Product Height <=150mm
Application Pulp Molding Products
Compressed Air Required 0.5~0.6MPa, 1M3/min
Machine weight 2000kg

Detailed Description about the Machine​:

  1. The machine is for pulp molding products.
  2. Output on the product collection table automatically.
  3. This machine has two working stations, it can make two different types products at the same time. By changing moulds, the machine can make many types different products.
  4. Computers monitor the entire process and manage the production.
  5. The pulp tank is made from SUS304 stainless steel, which is corrosion resistance.
  6. PLC and touch screen controlled.
  7. With function of top mould and bottom mould blowing & vacuum.
  8. Drive: bottom mould reciprocated drive by pneumatic, up mould forward-backward drive by pneumatic.
  9. The main Pneumatic parts brand: SMC/ARK.
  10. The main electronic parts brand: Siemens.

How This Machien Works:

  1. The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine.
  2. With the help of vacuum and compressed air, the products will be formed on the moulds.
  3. After forming, the up mould will move forward and drop on the collection table automatically.
  4. The forming products don’t to be transferred by workers, save labors and high efficiency.
  5. This machine can be applied to manufacturing large quantity of pulp molding products, especially the high industrial packages items.

More Machine Type for You:

CY010 Reciprocating -double cylinder with 800*600*2mm
CY020 Reciprocating -double cylinder with 700*500*2mm
CY030 Reciprocating -Single cylinder with 1000*660mm
CY040 Reciprocating -Single cylinder with 1200*800mm
CY050 Reciprocating -Single cylinder with 1600*800mm
CY060 Reciprocating -Single cylinder with 2000*800mm
CY070 Reciprocating -Single cylinder with 2400*800mm
CY080 Reciprocating -Single cylinder with 1500*1300mm

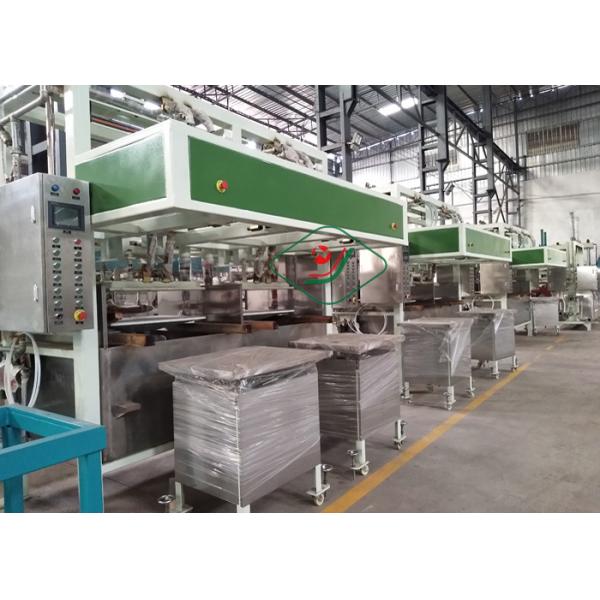

Machine Picture:

Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity

YOUTUBE Link:

https://www.youtube.com/watch?v=aZr_Z5UKLLY&t=35s

For more video, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.

Product Show: :

  1. Inner industrial packages, like for TV, fan, battery, air conditioner and other electrical items.
  2. Egg tray/egg box/fruit tray/ 2 cup holder/ 4 cup holder / seeding cup
  3. Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…

The below is one type product made by this machine, by changing moulds, the machine can make different products.

Auto Paper Pulp Moulding Machine Two Stations 100~150 kg/h Capacity

Business Terms:

Payment Terms 30% down payment before production; 70% balance payment before delivery.
Delivery Terms FOB Guangzhou, China. (CNF and CIF are also available.)
Delivery Time 45 days
Package Nude Packing
Warranty 12 months
Installation Overseas engineering service is available
Quotation Validity 90 days after the offering date
Aftersales Service We will send some spare parts for hot press use by free. And we will provide operating manual, drawing, process diagram for all of the machine. We will instruct the operation, maintain method for the buyer’s worker after installation.
