Automated Waste Paper Egg Tray / Egg Box Vacuum Forming Machine With Single Layer Dryer


Product Parameters:

Main Features:

• It’s a Fully Automatic Egg Tray Production Line with a dryer, high automatic and save labors.
• Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and bottle trays and disposable medical care products.
• This type of production line is constituted by a hydrapulper system, a Reciprocating type forming machine, a single-layer drying line, and auxiliary equipments.
• SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
• Use absolute encoder to achieve high correction.
• Use mechanical structure to ensure that the molds close on both sides evenly.

How this Egg Tray Production Line Works:

1. Pulping System: Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.
2. Forming System: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.
3. Drying System: After forming, the up mould will move forward and dryer automatically. you can choose Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet products.
4. Stacking & Packing System: After dried, the products will go to package. Court the number of the dried products, sperate them and stack them up.

YOUTUBE Video Links:

Applications:

1. Egg trays / 6 cells egg box / 10 cells egg box / 12 cells egg box;
2. Fruit trays / cup trays / seeding cups / agricultral cups / shoe tree;
3. Innner industrial packages, like for TV, fan, battery, air conditioner and other electrical items
4. Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…

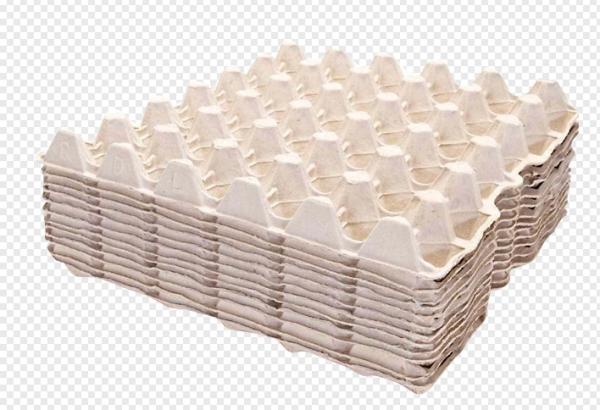

The below is one type of egg tray made by our machine, by changing moulds, the machine can make different products.

Competitive Advantages:

• Quality Guarantee: Established in 1994, NANYA has rich experience in this pulp molding field;
• Technology Guarantee: Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
• Mould Making Experience: NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;
• Market: NANYA factory covers over 20,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 50 countries and regions;
• Engineering Guarantee: Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.
• Good Price: We are the factory and we make the machines. The price offered by us is quite honest and fair.
• Good Service: We will reply your enquiry and questions within 24 hours.
