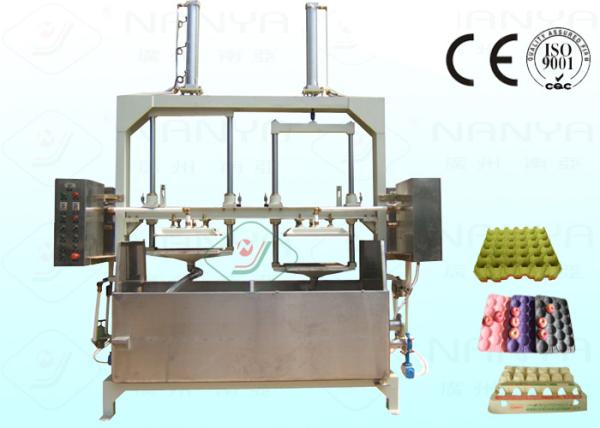

Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H
Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H
Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H
Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H
Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H
Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H
Specifications
Brand Name :
Nanya
Model Number :
ES2000-B
Certification :
CE/TUV/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Cash or western Union
Supply Ability :
20 Sets Per Month
Delivery Time :
45 - 75 Days
Packaging Details :
Export Standard Packing
Product Name :
Pulp Molding Machine
Capacity :
2000 Pcs / H
Processing Material :
Waste Paper Or Virgin Pulp
After-sales Service Provided :
Engineers Available to Service Overseas
Standard :
CE/TUV/SGS/ISO9001
Applications :
Egg tray, egg carton, fruit tray, medical tray
Automation :
Semi-automatic
Voltage :
220 V - 450 V
Description

Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H



Specifications:

Model Type

ES2000-B

Capacity

2000pcs/h

Hydrapulper

2.5m3,25kw

Forming Machine

Plate Size 1600*800mm 6pcs/unit

Drying Line

16m×4m×2.5m

Workshop Requirement

Length≥25m Width≥12m

Power Requirement

110kw

1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g.
2. For different capacity, customized allocation can be made according to the clients’ requirement.
3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.


The Items Must Be Prepared before Installation

1

Workshop, foundation of the machine, Drain ditch in the workshop.

2

Raw Material supply system; include Pools or tanks for pulp making system (3 x 4M3).

3

Power supply, water supply.

4

Tools and consumable materials needed during the installation.

5

The quotation does not including drying machine.

The customer should prepare halftones and trolleys for air-cure the product.


Descriptions:

  • This is a semiautomatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
  • The production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
  • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
  • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.

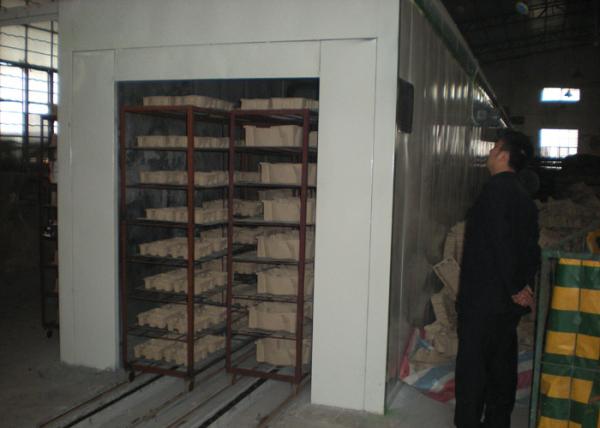

  • The formed products can be dried by drying product line, drying house or under the sunshine directly.
  • There are diversified devices allocations for different specifications. The capacity references for 30-packed egg tray have 400pcs/h, 600pcs/h, 800pcs/h,1200pcs/h, 2000pcs/h and 3000pcs/h and so on


Production Information and Our Warranty:

  • Status: Brand New
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong, China
  • Brand: NANYA
  • Model Type: ES2000-B
  • Voltage: 220V - 450V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas


Applications:

Egg tray

20,30,40packed egg tray… quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…
Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H


Competitive Advantages:

  • Semiautomatic production line
  • Siemens servo motor is applied
  • Energy saving and labor utilization
  • High quality thermoforming machine, forming, drying, pressing finished automatically in one machine Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
  • The standing director of Chinese packaging association


Business Terms

NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,
70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service
  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date


Work Flow:
Energy Saving Pulp Tray Machine Durable For Egg Carton 2000Pcs / H
