Pulp Molding Shock Proof Package Industrial Tray Making Machine
Pulp Molding Shock Proof Package Industrial Tray Making Machine
Pulp Molding Shock Proof Package Industrial Tray Making Machine
Pulp Molding Shock Proof Package Industrial Tray Making Machine
Pulp Molding Shock Proof Package Industrial Tray Making Machine
Pulp Molding Shock Proof Package Industrial Tray Making Machine
Pulp Molding Shock Proof Package Industrial Tray Making Machine
Pulp Molding Shock Proof Package Industrial Tray Making Machine
Specifications
Brand Name :
NANYA
Model Number :
CY010
Certification :
CE
Place of Origin :
Guangzhou, China(mainland)
MOQ :
Negotiable
Price :
contact us and get the latest price
Payment Terms :
T/T, L/C, Cash or western Union
Supply Ability :
50sets/month
Delivery Time :
Normally 90 days
Packaging Details :
International Standard Shipping Package
Product Name :
Pulp Tray Making Machine
Forming Type :
Reciprocating Vacuum
Application :
Shock-Proof Package Industrial Tray
Raw Material :
Recycle Paper
Automation :
Automated drop down on platform
Speed :
20~25 Seconds/cycle
Dryer :
With single layer or dry with sunshine
Fuel for Dryer :
Natural gas/ diesel/ LPG/steam/coal...
Service :
Installation,Training,Technical Support
Voltage :
Match local voltage
Description

Pulp Molding Shock Proof Package Industrial Tray Making Machine

Introduction

1. This pulp tray production line is for making big size industrial trays or high capacity pulp trays.

2. The mold platen size is 800*600mm* 2 working stations, match a single layer dryer or dry under sunshine. The capacity of each forming machine is around 120~150kg/hour.It can mactch multiple forming machines in the production line.

3. Forming machine control: PLC and touch screen controlled.

4. The fuel for the dryer: Natural gas/ diesel/ LPG/steam/coal...

5. The main electronic parts brand: Siemens; The main Pneumatic parts brand: FESTO or SMC

Technical Data

Product Name Industrial Tray Making Machine
Machine Type CY010
Raw Material Recycle paper
Forming Method Reciprocating Moulding
Mould Plate Size 2400*800mm
Capacity 120~150kg/hour/forming machine
Product Height <=160mm
Application Electronic Package Pulp Tray
Dryer type Single layer dryer
Fuel type for the dryer Natural gas/ diesel/ LPG/steam/coal...

The above specification is for reference only, for different capacity, we'll provide customized solution based on specific requirements.

How This Production Line Works

Pulping System The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine.
Forming System With the help of vacuum and compressed air, the products will be formed on the moulds. After forming, the up mould will move forward and drop on the collection table automatically.
Drying System Metal drying line / sunshine drying / drying room
Hot press system After dried, the products will be hot pressed to get a better shape and smoother surface.

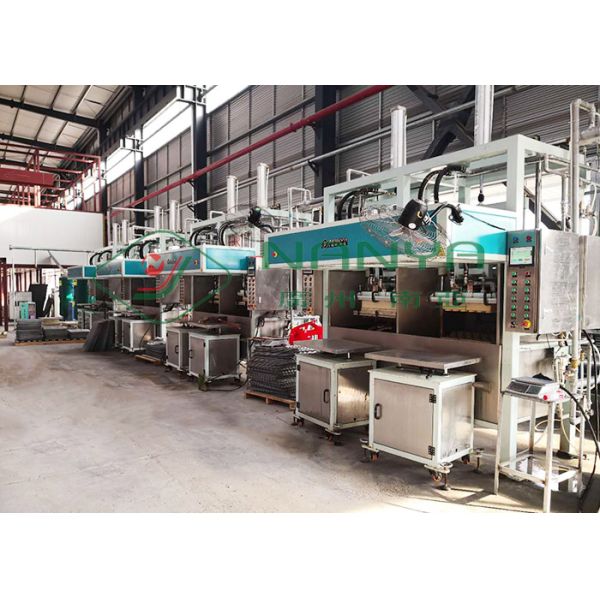

Forming Machine Picture

Pulp Molding Shock Proof Package Industrial Tray Making Machine

YOUTUBE Video Link

https://youtu.be/aaWY0Lwd790

For more videos, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.

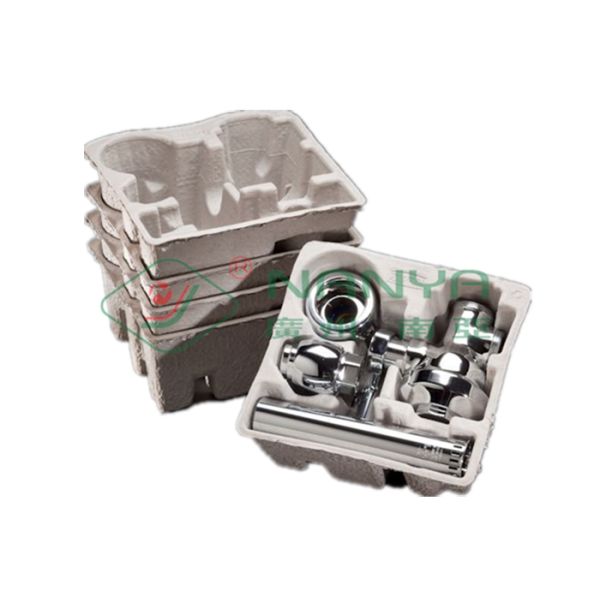

Finished Products

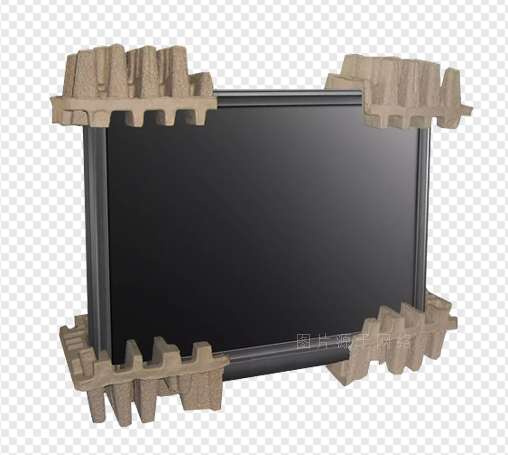

1. Electronic Package Pulp Tray, like for TV, cooker, battery, air conditioner, car parts and other electrical items.

2. Egg tray/egg box/fruit tray/ 2 cup carrier/ 4 cup carrier / seeding cup

Pulp Molding Shock Proof Package Industrial Tray Making MachinePulp Molding Shock Proof Package Industrial Tray Making Machine

NANYA Advantages

1. Provide the professional technical support for designing plant layout and recommending suitable machine.

2. Provide the turn-key production line, installing, commissioning and staff training.

3. Provide one year warranty and lifetime maintenance.

4. Provide one year spare parts free, and a large stock of components and parts for emergency requirement.

5. Provide 24hours/7days online service.

Business Terms

MOQ One set for our own existing designs.
Model Choice According to your requirement (like size and capacity), our engineer will help to make the model selection accordingly. And we also can provide the professional plant layout design for customers.
Payment Terms T/T, L/C, D/P, D/A, Western Union, Money Gram, etc.
Delivery Time Around 90 working days from the payment date.
Assembly &commissioning We will assign our engineer for assembly and commissioning.
