Automated Rotary Egg Tray / Fruit Tray Moulded Machine 4000pcs/h

Product Descriptions:

1. NANYA egg tray machinery adopts recycle paper used newspaper, used cartons, office paper as raw material;

2. After the process of pulping, vacuum suction forming, metal dryer drying, shaping and stacking etc, the produce different kinds of egg trays;

3. With 25 years experience and mature patented technology, offering turnkey solutions for energy-saving, high efficiency and reliable pulp molding production line.

4. Mainly applied for egg tray, fruit tray, egg carton, paper tray and etc, eco friendly and 100% biodegradable.

Product Parameters:

Production Consumption:

Applications:

1	15, 20,30,40packed egg tray… quail egg tray

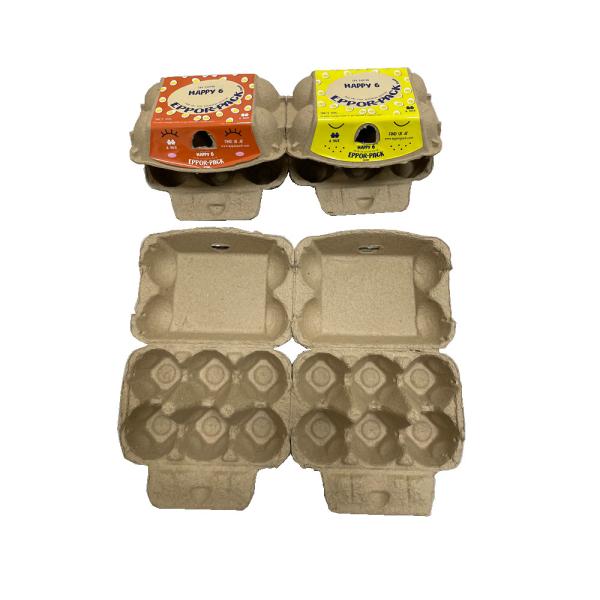

2	6, 10,12,15,18,24 packed egg carton…
3	Fruit tray, seeding cup and other Agricultural products
4	2 or 4 packed cup holder
5	Disposable Medical Care Products like bedpan, sick pad, female urinal…
6	All kind of industrial package

Rotary Forming Machine:

How this Production Line Works:

1. Pulping System: put raw material into hydrapulper, grinding with water. Adjust the pulp into certain density.

2. Forming System: the adjusted pulp will transfer to rotary machine, products will be formed in the moulds with the vacuum suction.

3. Drying System: products will drop down on the metal dryer for drying.

4. Hot Press System: for egg tray and fruit tray, they don't need this process; but for egg carton, this process is compulsory.

5. Stacking & Packing System: After dried or after hot press, the products will go to package. Court the number of the dried products, separate them and stack them up.

YOUTUBE Video Links:

Main Business Terms:

The most outstanding features of NANYA machines:

1. Stable and reliable running

2. Saving energy

3. High efficiency

4. Produce the high quality egg tray of EU standards.
