72m2 Acid Gas Wet Dust Collector Venturi Scrubber Air Pollution Control
72m2 Acid Gas Wet Dust Collector Venturi Scrubber Air Pollution Control
72m2 Acid Gas Wet Dust Collector Venturi Scrubber Air Pollution Control
72m2 Acid Gas Wet Dust Collector Venturi Scrubber Air Pollution Control
Specifications
Brand Name :
XINCHEN
Model Number :
Desulfurization dust collector
Certification :
SGS ISO CE
Place of Origin :
China (Mainland)
MOQ :
Negotiate
Price :
Negitionable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
30 days after receiving down payment
Packaging Details :
Plastic film inner packing, export special wooden box outer packing.
Name :
Desulfurization dust collector
air volume :
6480-10800m3/h
filting area :
72m2
filting airspeed :
1.5-2.5m/min
dust removing pressure :
0.4-0.6Mpa
Applicable Industries :
Building Material Shops, Manufacturing Plant
Core Components :
PLC, Motor, filter bag
Minimum Particle Size :
0.3 micron
Description

6480-10800m3/H 72m2 Flue Gas Desulfurization Equipment​

product description

it is mainly composed of Water tank, Circulating water, Packing layer, Spraying system, Demister etc.
The FRP Acid Mist Gas Absorption Scrubber Tower is designed to capture dust particles, VOCs, chemical fumes, and other water / chemically soluble fumes and Vapors generated in industrial process.

Techinal parameters

Model filting area(m2) air volume(m3/h) filting airspeed(m/min) working resistance(Pa) dust removing pressure(Mpa)
DMC-32 30 2880-4800 1.5-2.5 800-1800 0.4-0.6
DMC-48 48 4320-7200 1.5-2.5 800-1800 0.4-0.6
DMC-60 60 5400-9000 1.5-2.5 800-1800 0.4-0.6
DMC-72 72 6480-10800 1.5-2.5 800-1800 0.4-0.6
DMC-90 90 8100-13500 1.5-2.5 800-1800 0.4-0.6
DMC-120 120 10800-18000 1.5-2.5 800-1800 0.4-0.6
DMC-150 150 13000-22500 1.5-2.5 800-1800 0.4-0.6
DMC-180 180 16200-27000 1.5-2.5 800-1800 0.4-0.6
DMC-210 210 18900-31500 1.5-2.5 800-1800 0.4-0.6
DMC-250 250 22500-37500 1.5-2.5 800-1800 0.4-0.6
DMC-270 270 24300-40500 1.5-2.5 800-1800 0.4-0.6
DMC-300 300 27000-45000 1.5-2.5 800-1800 0.4-0.6
DMC-340 340 30400-51000 1.5-2.5 800-1800 0.4-0.6
DMC-420 420 37800-63000 1.5-2.5 800-1800 0.4-0.6
DMC-500 500 45000-75000 1.5-2.5 800-1800 0.4-0.6
DMC-600 600 54000-90000 1.5-2.5 800-1800 0.4-0.6
DMC-740 740 66600-111000 1.5-2.5 800-1800 0.4-0.6
DMC-870 870 78300-130500 1.5-2.5 800-1800 0.4-0.6
DMC-1000 1000 90000-150000 1.5-2.5 800-1800 0.4-0.6
DMC-1100 1100 99000-165000 1.5-2.5 800-1800 0.4-0.6

Equipment advantages

  1. The DMC bag-type pulse dust collector in this project adopts the national JB/T8532-2008 standard design, and its performance characteristics are as follows:
  2. The DMC bag-type pulse dust collector adopts a right-angle pulse valve for single-row jet cleaning and has a strong cleaning ability; Expanded ring filter bag mouth design, good sealing effect, convenient assembly and disassembly;
  3. High-quality steel wire, multi-point welding automatic production line, galvanized protection treatment process, the filter bag frame produced has high strength and rigidity, without welding burrs, which reduces the mechanical wear of the filter bag and prolongs its service life;
  4. The installation and maintenance mode of the uncovered cover, the filter bag replacement is quick and convenient;
  5. DMC pulse bag filter adopts PLC or special program controller to control pulse dust removal, which is reliable in operation and high in automation.

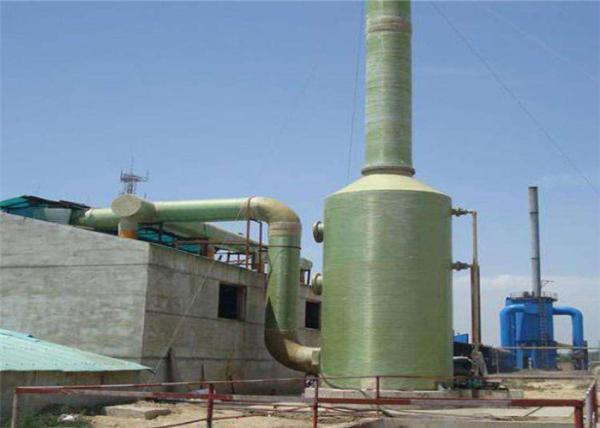

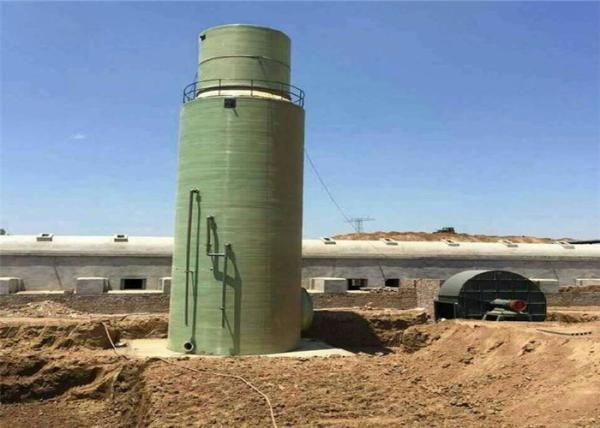

Pictures

72m2 Acid Gas Wet Dust Collector Venturi Scrubber Air Pollution Control
