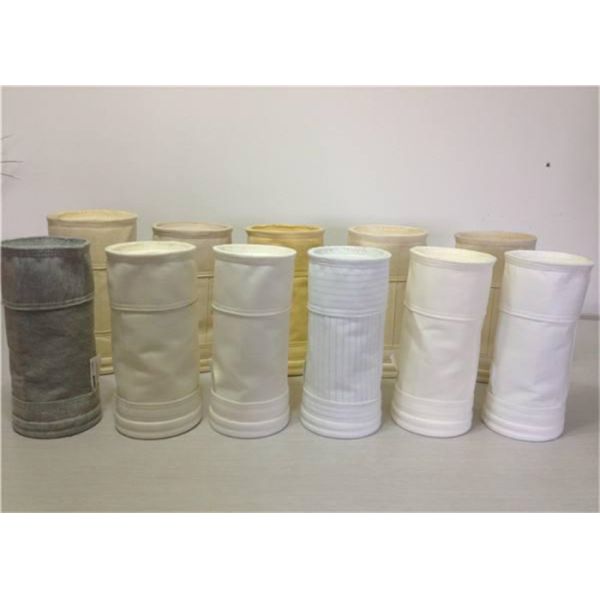

Fiberglass Woven Cloth 800gsm Dust Eliminator Bags With Ptfe Membrane
Fiberglass Woven Cloth 800gsm Dust Eliminator Bags With Ptfe Membrane
Specifications
Brand Name :
XINCHEN
Model Number :
FMS filter bag
Certification :
SGS ISO CE
Place of Origin :
China (Mainland)
MOQ :
Negotiate
Price :
Negitionable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
30 days after receiving down payment
Packaging Details :
Plastic film inner packing, export special wooden box outer packing.
Name :
FMS Filter Bag
Weight :
800-900g/m2
Applicable Industries :
Building Material Shops, Manufacturing Plant
Material :
Glass fiber+P84
Thickness :
1.8-2.0mm
Color :
cream-coloured
Brand Name: :
17s
Model Number: :
120mm, 130mm, 150mm, 155mm,160mm
Delivery Time: :
TBD
Supply Ability: :
TBD
Description

Factory Price Wholesale Fiberglass Woven Cloth 800 Gsm Dust Filter Bag With Ptfe Membrane

Introduction

Dust Filter Bag With Ptfe Membranecan be described as the main component of the bag filter. Usually called dust bag or filter bag. The dust bag is a key component in the operation of the bag filter. The cylindrical filter bag is hung vertically on the dust collector. Intermediate dust collector or dust removal equipment is a device that separates dust and flue gas.

Specifications

Product Description
Product Name
Fiberglass woven cloth 800 gsm with PTFE membrane
Product Code
ES-FB800W-TFM
Physical properties
Weave method
Double Twill
Thickness
0.80±0.08
Weight
800±10g/m²
Width
≤2.20M
Loss on Ignition (%)
≥10
Chemical Finish
PTFE impregnation, PTFE membrane
Air Permeability (L/m²S@200Pa)
30- 80
Density
48±2 Warp
(ROOT/INCH)
40±2 Weft
Tensile Strength(N/25mm)
≥2200 Warp
≥2000 Weft
Temperature
Continues temperature
260 C°
Instant temperature
280 C°
e Bag filter, also known as filter dust collector, is a kind of dry dust collector. It is a kind of dust removal device, which uses a bag filter element made of fiber woven material to capture the solid particles in the dust-laden gas. The reason for this effect is that when the dust particles are entangled on the fibers of the filter cloth, they will collide with the fibers and be blocked due to the action of inertial force.

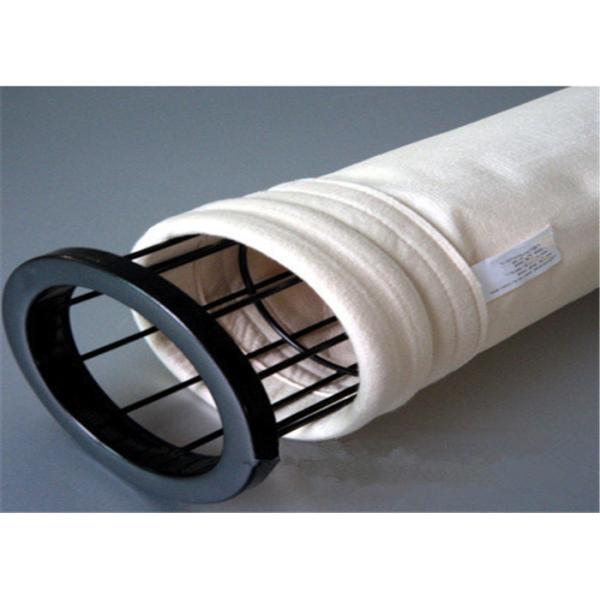

In the pulse and wind box pulse dust collector, the dust adheres to the surface of the filter bag. When the dust-containing gas passes through the dust collector, the dust is collected on the surface of the filter bag, and the clean gas enters the dust filter bag with a PTFE membrane through the filter material. The cage inside the filter bag is used to support the filter bag to prevent the filter bag from collapsing, and it also helps to clean up and redistribute the dust cake.


Fiberglass Woven Cloth 800gsm Dust Eliminator Bags With Ptfe Membrane

Fiberglass Woven Cloth 800gsm Dust Eliminator Bags With Ptfe Membrane

he fabric and design of the dust bag should strive for filtration, easy dust collection, and good effect. The choice of the dust bag is very important, it directly affects the dust removal effect of the dust collector. The selection of dust bag is considered from the following aspects: gas temperature, humidity and chemical properties, particle size, dust concentration, filtration wind speed, dust removal method and other factors.
