Cement Kiln 350m2 PLC Baghouse Dust Collector
Cement Kiln 350m2 PLC Baghouse Dust Collector
Specifications
Brand Name :
XINCHEN
Model Number :
XMC Pulse Bag Dust Collector
Certification :
SGS ISO CE
Place of Origin :
China (Mainland)
MOQ :
Negotiate
Price :
Negitionable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
30 days after receiving down payment
Packaging Details :
Plastic film inner packing, export special wooden box outer packing.
Name :
All-In-One Pulse Bag Dust Collector
air volume :
24000m3/hour
filting area :
350m2
filting airspeed :
0.95-1.14m/min
Filter bags :
350 bags
Pulse valve No. (piece) :
25 piece
Applicable Industries :
Sawdust Collection
Core Components :
PLC, Motor, filter bag
Local Service Location: :
None
After Warranty Service: :
Video technical support, Online support
Warranty of core co :
1 Year
Description

Cement kiln dust collection baghouse

Introduction
PPC gas tank pulse bag filter is using separate dust cleaning in every chamber by isolation. The every chamber of the pulse and soot cleaning cycle by soot cleaning program controller. So it can ensure the compressed air soot cleaning effect. Air tank pulse bag filter has the filter bag number in 32, 64, 96, 128 bags per room.

Technical Parameters of Equipment Selection:

Equipment Model HMC-24 HMC-32 HMC-36 HMC-48 HMC-64 HMC-80
Total Filtration Area m² 20 25 30 40 50 64
Filtration Velocity m³/min 1.0-2.0
Air Volume m³/h 1200-2400 1500-3000 1800-3600 2400-4800 3000-6000 3840-7680
Quantity of Filter Bag 24 32 36 48 64 80
Specification and Material of Filter Bag 130*2000mm
Air Outlet Dust Concentration mg/m³ ≤30
Beard Negative Pressure Pa 5000
Equipment Running Resistance Pa 800-1200
Injection Pressure Mpa 0.4-0.6
Electromagnetic Specification DMF-Z-25(G1")
Quantity 4 4 6 6 8 8
Induced Draft Fan Model 4-72-2.8A 4-72-3.2A 4-72-3.6A 4-72-3.6A 4-72-4A 4-72-4.5A
Power of Motor 1.5kw 2.20kw 3kw 4kw 5.5kw 7.5kw

Equipment advantages

1. The cleaning intensity is higher, and the air inlet and outlet are evenly distributed.
2. The dust collection efficiency is higher, up to 99.8%.
3. The service life of the filter bag is effectively extended.

Details

When the dust gas enters into the cloth baghouse dust collector from air induced system, due to the decrease of wind speed, the dust particles with a large proportion settle into the ash hopper, and the lighter dust depends on the air induction to reach the surface of dust removal filter bag.

The filter bag of dust collector generally uses needle felt as the filter carrier, and the filtration accuracy can reach <1um. The dust is blocked on the surface by the filter bag, and the dust gas is purified through the filter bag. With the increasing of time, more and more dust is filtered on the surface of filter bag, so the resistance of the filter bag is gradually increased. In order to make the dust collector work normally, when the resistance rises to a limited range, the electronic pulse controller issues instructions to follow the order.Industrial Efficiency 99% Cement Silo Baghouse Pulse Jet Cleaning System Baghouse

Pictures

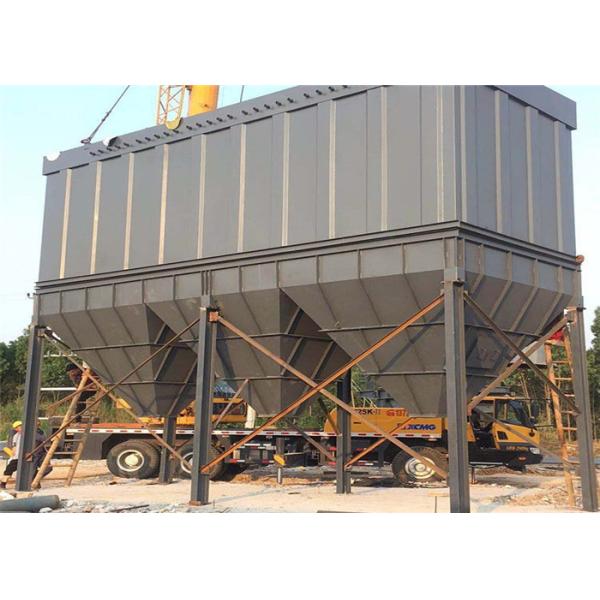

Cement Kiln 350m2 PLC Baghouse Dust Collector

Cement Kiln 350m2 PLC Baghouse Dust Collector
