Specifications
Brand Name :
JR
Model Number :
Type 166T
Certification :
ISO9001
Place of Origin :
MADE IN CHINA
MOQ :
5PC
Price :
Negotiated
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000PC/Month
Delivery Time :
20-30DAYS
Packaging Details :
box as requirement
Material :
SIC SIC FKM CAR CER NBR
Function :
for Oil Pump, Water Pump
Transport Package :
box
HS Code :
848420090
Specification :
John Crane Seal Type 166T
Certificate :
ISO9001
Type :
Mechanical Seal O Ring 166T
Standard :
Standard
Style :
Mechanical Seal
Product name :
John Crane Type 166T Mechanical Seals
Description

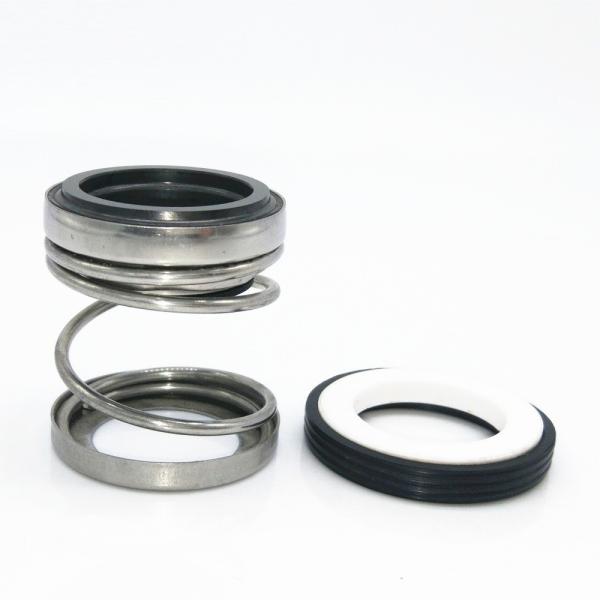

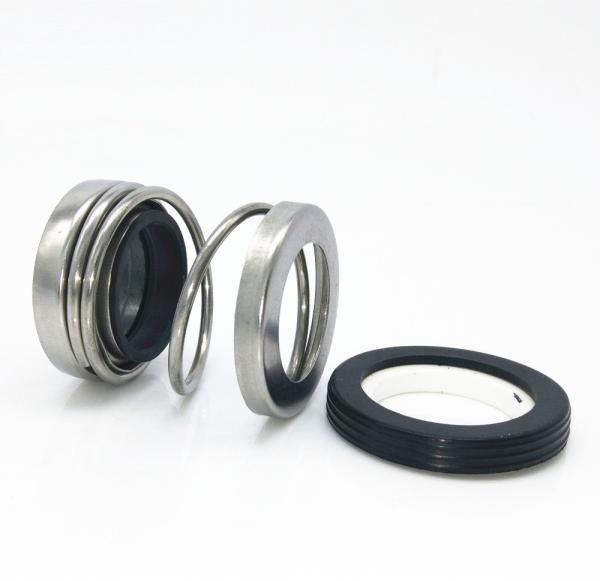

Single Spring 166T Rubber Bellows Mechanical Seal Aesseal Flowserve 21 Bellow Seal For Pumps

Operational Conditions:

  1. 166T are single conical spring, unbalanced seal with the presence of an O-Ring for secondary sealing.
    Since the torque transmission comes from single coil springs, the seals are dependent on directions of rotation, which can be seen from the drive end of the shaft

  2. REPLACE FLOWSERVE TYPE 21
    Material:CE CA SIC TC V EPDM NBR 304 316

  3. Temperature: -20ºC to +120ºC
  4. Pressure: ≤1.4MPa
  5. Speed: ≤15m/s

Materials:

  • ROTARY FACES: Carbon Graphite, Silicon Carbide, Tungsten Carbide
  • STATIONARY SEATS: Ceramic, Silicon Carbide, Tungsten Carbide, Stainless Steel
  • BELLOWS: Buna, FKM, EPDM, Aflas, Neoprene
  • METAL PARTS: 304 SS standard, 316 SS option available


Performance Capabilities

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 14 bar
Speed
Up to 13 m/s
End play/axial float allowance
±0.1mm
Size
0.5" to 4"
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

Single Spring 166T Rubber Bellows Mechanical Seal Aesseal Flowserve 21 Bellow Seal For Pumps

Single Spring 166T Rubber Bellows Mechanical Seal Aesseal Flowserve 21 Bellow Seal For PumpsSingle Spring 166T Rubber Bellows Mechanical Seal Aesseal Flowserve 21 Bellow Seal For PumpsSingle Spring 166T Rubber Bellows Mechanical Seal Aesseal Flowserve 21 Bellow Seal For PumpsSingle Spring 166T Rubber Bellows Mechanical Seal Aesseal Flowserve 21 Bellow Seal For Pumps

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
