Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump
Specifications
Brand Name :
JR
Model Number :
Firstam Mechanical Shaft Seal
Certification :
ISO9001
Place of Origin :
MADE IN CHINA
MOQ :
5PC
Price :
Negotiated
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000PC/Month
Delivery Time :
20-30DAYS
Packaging Details :
box as requirement
Material :
SIC SIC FKM CAR CER NBR
Function :
for Oil Pump, Water Pump
Transport Package :
box
HS Code :
848420090
Specification :
Firstam Mechanical Seal
Certificate :
ISO9001
Type :
Firstam Seal
Standard :
Standard
Style :
Mechanical Seal
Product name :
Firstam Mechanical Shaft Seal 22mm
Description

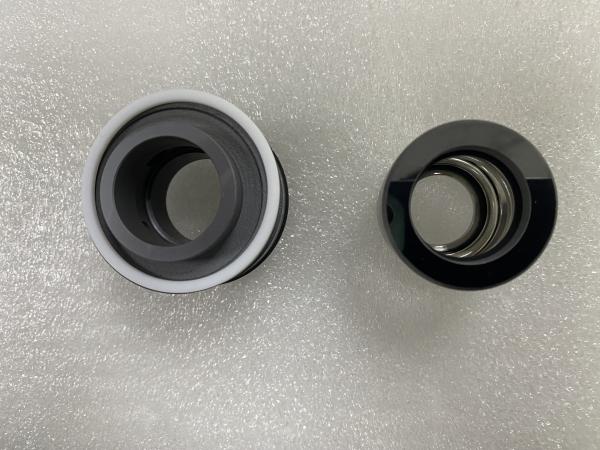

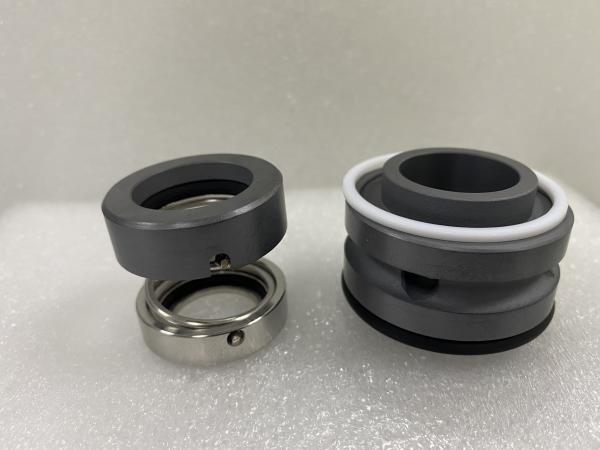

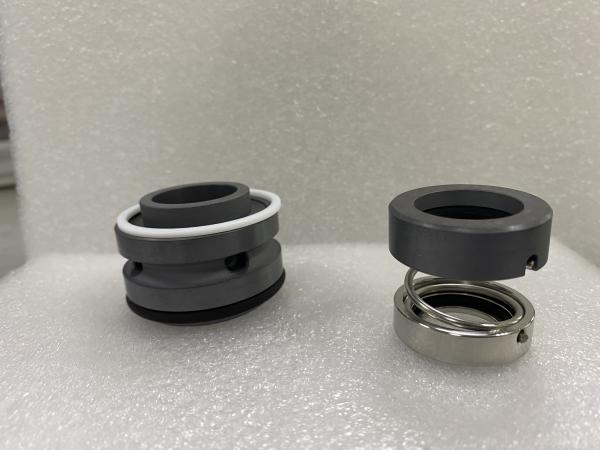

Single Spring 22mm Firstam Mechanical Shaft Seal For FRISTAM FPX PUMP Sanitary Pump

Operational Conditions:

22mm Fristam FPX Pumpe Gleit ring dichtung

Materials:

  • Seal face: Carbon graphite antimony impregnated (A),
  • Carbon graphite resin impregnated (B)
  • Seat G16: Silicon carbide (Q1)
  • Standards and approvals


Performance Capabilities

HJ92N mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer

22MM ,30mm,35mm
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Part:SS304 SS316

1. Fristam 22
is for FRISTAM FPX PUMP

2. Our seals can replace the original seals.

3. Application: seals are primarily used in the Centrifugal pumps

4. Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
5. OEM and Customized products is welcomed.
6. Factory Price,High Quality ,Fast Delivery and Best Sevice.

Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump

Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump

Single Spring 22mm Mechanical Shaft Seal For Fristam FPX PUMP Sanitary Pump

We are engaged in manufacture and installation exporting and wholesalng quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
