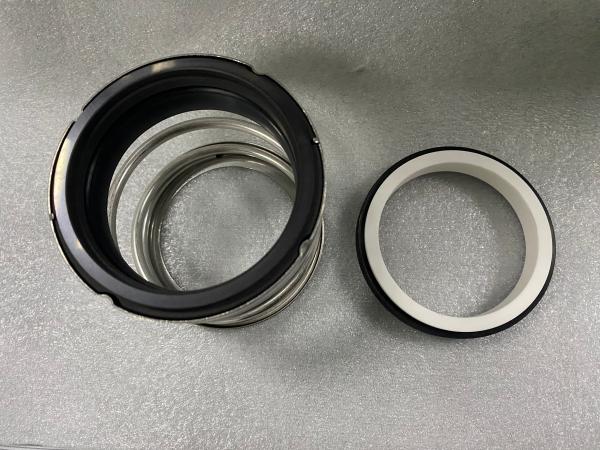

Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring
Specifications
Brand Name :
JR
Model Number :
21 21T
Certification :
iso9001
Place of Origin :
MADE IN CHINA
MOQ :
100PC
Price :
Negotiated
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000000PC/Month
Delivery Time :
10DAYS
Packaging Details :
box as requirement
Material :
SIC SIC FKM Cer Car Nbr
Function :
for Oil Pump, Water Pump
Transport Package :
box
HS Code :
848420090
Specification :
21 21T mechanical seal
Certificate :
ISO9001
Type :
John Crane 21 seal
Standard or Nonstand :
Standard
Style :
John Crane 21 seal Aesseal P04/P04T seal Flowserve 110 seal
Size :
0.5INCH-3INCH
Description

Mechanical Seal John Crane Type 21 Elastomer Bellows Seal Single Spring Pump Seal

Operations Conditions:

  1. Structure: Single End
    Pressure: Medium Pressure Mechanical Seals
    Speed: General Speed Mechanical Seal
    Temperature: General Temperature Mechanical Seal
    Performance: Wear
    Standard: DIN24960, ISO3069, GB6556
    Model NO.: BIA, Type 21, and Type 43
    Balance: Unbalanced
    Specification: Inner Diameter: 12 mm to 100 mm
  2. John Crane 21 seal
  3. Aesseal P04/P04T seal
  4. Flowserve 110 seal
  5. Temperature:-20ºC to +150ºC
  6. Pressure:≤1.5bar
  7. Speed:≤18m/s

Materials:

  • Face/Primary Ring: Carbon
    Retainer/Disc/Drive Band/ Spring Holder: Stainless Steel
    Bellows: Buna-N
    Springs: Stainless Steel

Performance Capabilities:

Temperature
-20℃ to150℃, dependent on the elastomer
Pressure
Up to 1.5 MPA
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
10-100MM,0.375INCH-3INCH
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well

  • 1. it is equivalent to
  • Roten 21Aseal
  • Sealol 43 CU Short seal
  • Sterling212Aseal
  • US Seal C seal
  • BIA (also known as Type 21 or Type 43) Mechanical Seal for Clean Water Pumps, Piping Pumps and Vacuum Pumps

Mechanical John Crane Type 21 Elastomer Bellows Seal Single Spring

Mechanical John Crane Type 21 Elastomer Bellows Seal Single SpringMechanical John Crane Type 21 Elastomer Bellows Seal Single SpringMechanical John Crane Type 21 Elastomer Bellows Seal Single SpringMechanical John Crane Type 21 Elastomer Bellows Seal Single Spring

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
